See More. Do More. Save Time.

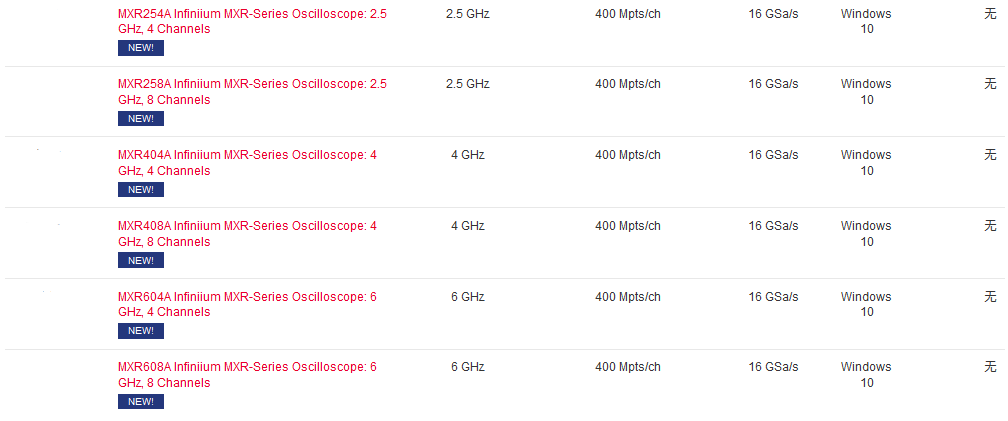

500 MHz to 6 GHz on all 4 or 8 analog channels
Faster test speeds than ever before with ASICs from the Infiniium UXR-Series
Accurate measurements with ENOB up to 9.0, noise as low as 43 µV
Capabilities are extended with 8-in-1 instrument integration: oscilloscope, logic analyzer, protocol analyzer, DVM, counter, real-time spectrum analyzer, bode plotter, waveform generator
Upgradeable in every possible way – including channel upgrades
World’s First Real-Time Spectrum Analyzer in an Oscilloscope
Visualize the frequency domain like never before with RTSA on up to 8 channels
Analyze signals from ZigBee to 5G FR1 with analysis from DC to over 6 GHz
Powered by Digital Down-Conversion of over 2 GHz on every channel
Export DDC information to software like VSA or MATLAB for deeper analysis
Deep Signal Integrity and Power Toolsets
Validate the signal integrity of your design with advanced noise, jitter, and phase noise analysis applications
De-embed fixtures and probes and equalize your data to get wider eye diagrams
Support for over 20 protocols from triggering, complete decoding, and compliance tests
Analyze PMICs and power rails with dedicated probes and applications, and mask testing on all channels
Analyze the input, output, and switching device of power supplies, along with PSRR and control loop response measurements leveraging the built-in function generator
