红外透射可见吸收玻璃特性(Infrared Glass Characteristic)
| 牌号 Type | 厚度(mm) Thickness | A[2856K] | D65 | 化学稳定性 Chemical Stability | ND | α×10-7(/℃) | Tg (℃) | Ts (℃) | S | |||||
| x | y | Y | x | y | Y | DA | DW | |||||||
| HB780 | 3 | 5 | 4 | 1.532 | 111 | 534 | 592 | 2.77 | ||||||
| HB800 | 3 | 5 | 4 | 1.520 | 98 | 559 | 615 | 3.05 | ||||||
| HB830 | 3 | 5 | 4 | 1.520 | 98 | 559 | 615 | 3.05 | ||||||
| HB850 | 3 | 5 | 4 | 1.520 | 98 | 559 | 615 | 3.05 | ||||||
技术要求(Technical Indexes)
| 牌 号 Type | 厚 度(mm) Thickness | λtj(nm) | λ0(nm) | Tλ0(%) | K |
| HB780 | 3 | 780±10 | 900 | ≥83.6 | ≥0.5 |
| HB800 | 3 | 800±10 | 900 | ≥83.6 | ≥0.5 |
| HB830 | 3 | 830±10 | 930 | ≥83.6 | ≥0.5 |
| HB850 | 3 | 850±10 | 950 | ≥80.0 | ≥0.5 |
汽泡、条纹、应力类级别(Class Of Bubble、Stripe、Stress)
| 牌 号 Type | 气 泡 Bubble | 条 纹 Stripe | 应 力 Stress |
| HB780 | C-B | 3C | 3 |
| HB800 | C-B | 3C | 3 |
| HB830 | C-B | 3C | 3 |
| HB850 | C-B | 3C | 3 |

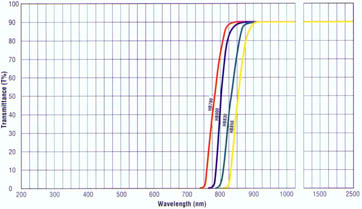

特性曲线图(Wavelength)
|
