536nm激光器
LL536-500mw
LD PUMPED ALL-SOLID-STATE GREEN LASER AT 536nm All solid state 536nm green laser is made features of high output power stability, good beam profile, ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.
| Part number | LL536-500mw |
| Wavelength (nm) | 536± 1 |
| Operating mode | CW |
| Output power (mW) | 200-500 |
| Power stability (rms, over 4 hours) | <5%, <3% |
| Transverse mode | TEM00 |
| M2 factor | < 1.5 |
| Beam diameter at the aperture ( 1/e2, mm) | <2.0 |
| Beam divergence, full angle (mrad) | < 1.5 |
| Polarization Ratio | > 100:1, (Horizontal or Vertical Optional) |
| Warm-up time (minutes) | <5 |
| Pointing stability after warm-up (mrad) | <0.05 |

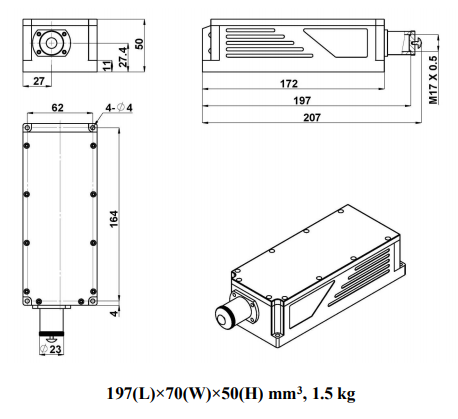

| Beam height from base plate (mm) | 27.4 |
| Operating Temperature (°C) | 10-35 |
| Modulation option | TTL on/off, 1Hz- 1kHz, 1kHz- 10kHz, |
| Power supply (90-264VAC) | PSU-H-LED/ |
| Expected lifetime (hours) | 10000 |
| Warranty | 1 year |
