613nm激光器
LL613-20mw
LD PUMPED ALL-SOLID-STATE RED LASER AT 613nm All solid state 613nm red laser is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in measurement, spectrum analysis, and laser lighting show etc.
| Part number | LL613-20mw |
| Wavelength (nm) | 613± 1 |
| Operating mode | CW |
| Output power (mW) | 1-20 |
| Power stability (rms, over 4 hours) | <5%, <3%, <2% |
| Transverse mode | Near TEM00 |
| M2 factor | < 1.2 |
| Beam diameter at the aperture ( 1/e2, mm) | < 1.0 |
| Beam divergence, full angle (mrad) | < 1.5 |
| Polarization Ratio | > 100:1, (Horizontal or Vertical Optional) |
| Warm-up time (minutes) | <5 |
| Pointing stability after warm-up (mrad) | <0.05 |

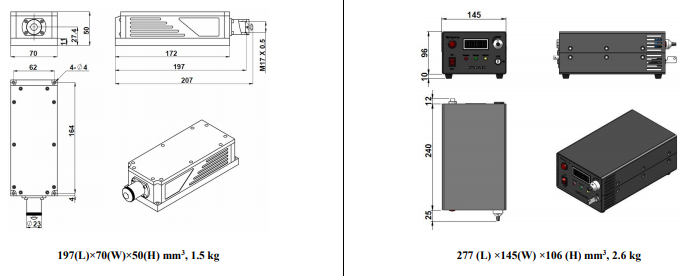

| Beam height from base plate (mm) | 27.4 |
| Operating Temperature (°C) | 10-35 |
| Modulation option | TTL on/off, 1Hz- 1kHz, 1kHz- 10kHz, |
| Power supply (90-264VAC) | PSU-H-LED/ |
| Expected lifetime (hours) | 10000 |
| Warranty | 1 year |
