激光波长

Laser wavelength

905 nm

测距范围

Ranging range

5 m-1000m

测距精度

Ranging accuracy

± 1.25m

测距频率

Ranging frequency

1 Hz

准测率

Accuracy rate

≥98%

虚警率

False alarm rate

≤1%

发散角

Divergence angle

≤ 5 mrad

接收口径

Receiving caliber

18 mm

通讯接口

Communication Interface

UART-TTL

电源电压

Voltage

5V

工作功耗

Working power consumption

≤ 1.1W

工作功耗

Standby power consumption

≤ 500 mW

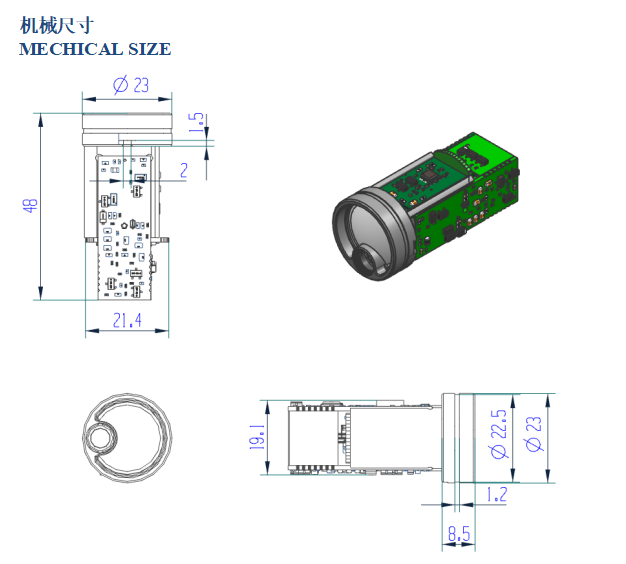

尺寸

Size

Ф 24 mm Í4 8 mm

重量

Weight

≤ 24g

工作温度范围

Range of working temperature

- 15 °C ~ +60°C

存储温度范围

Storage temperature range

-55℃ ~ +70℃

1

使能引脚

Enable pin

低电平开机

Low level power on

2

TTL_RXD

串口接收端，TTL电平3.3V

Serial port receiver, TTL level 3.3V

3

TTL_TXD

串口发送端，TTL电平3.3V

Serial port sender , TTL level 3.3V

4

NC

空脚

Empty feet

5

5V电源

5V power supply

5V直流供电

5V DC power supply

6

GND

地线

Ground wire
