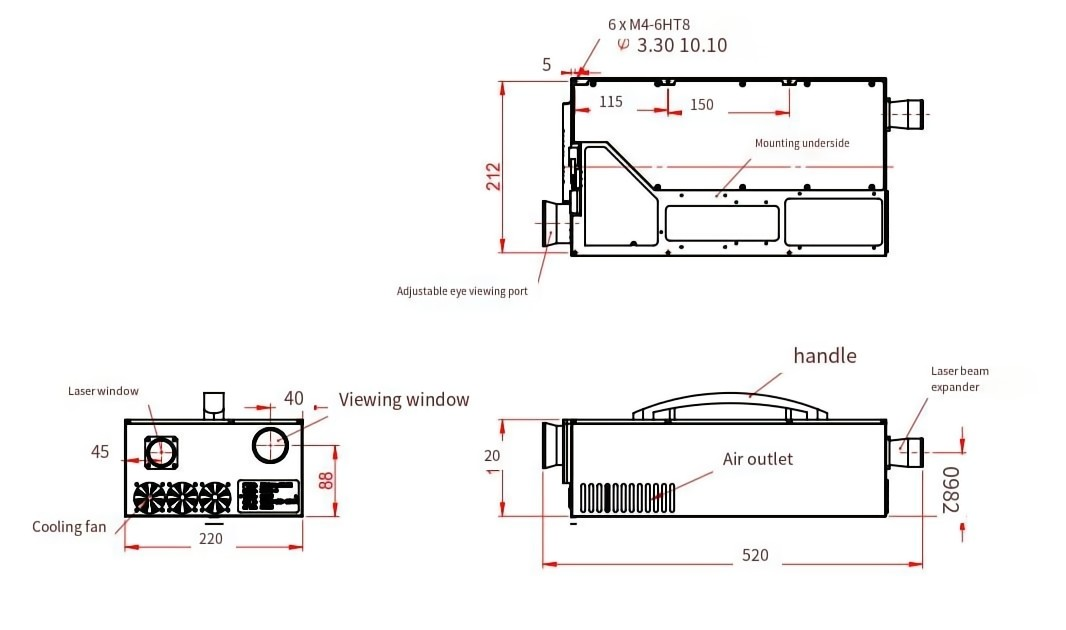

项目 Project | 参数 Parameter | ||
激光波长 Laser wavelength | 1570nm±6nm | 1570nm±6nm | 1570nm±6nm |
输出能量 Output power | ≥20mj@20Hz | ≥40mj@20Hz | ≥80mj@20Hz |
脉冲宽度 Pulse width | ＜7ns | ＜7ns | ＜7ns |
光束发散角 Beam divergence angle | ≯4mrad | ≯4mrad | ≯4mrad |
脉冲能量稳定性 Pulse energy stability | ＞90% | ＞90% | ＞90% |
重复频率 Repetition rate | 1~100Hz（可调） | 1~50Hz（可调） | 1~30Hz（可调） |
功耗 Power consumption | 峰值功耗不大于600W，待机功耗不大于160W Peak power consumption does not exceed 600W, and standby power consumption does not exceed 160W. | 峰值功耗不大于600W，待机功耗不大于160W。 Peak power consumption does not exceed 600W, and standby power consumption does not exceed 160W. | 峰值功耗不大于850W，待机功耗不大于160W。 Peak power consumption does not exceed 850W, and standby power consumption does not exceed 160W. |
工作周期 Operating cycle | 单次最大工作时间60s，间隔60s；可连续工作8个周期。 Air cooling: Maximum working time per cycle is 60s with a 60s interval; can work continuously for 8 cycles. | 单次最大工作时间60s，间隔60s；可连续工作8个周期。 Air cooling: Maximum working time per cycle is 60s with a 60s interval; can work continuously for 8 cycles. | 水冷：单次最大工作时间180s，间隔60s；可连续工作。 风冷：单次最大工作时间60s，间隔60s；可连续工作8个周期。 Water cooling: Maximum working time per cycle is 180s with a 60s interval; can work continuously. Air cooling: Maximum working time per cycle is 60s with a 60s interval; can work continuously for 8 cycles. |
供电 Power supply | AC 220V/DC 24V | DC 24V | AC 220V |
触发方式 Triggering method | 内外触发均可 Both internal and external triggers are acceptable | 内外触发均可 Both internal and external triggers are acceptable | 内外触发均可 Both internal and external triggers are acceptable |
编码精度 Encoding accuracy | ≤2us | ≤2us | ≤2us |
通讯接口 Communication interface | RS422串口、外同步输入485电平 RS422 serial port, external synchronous input 485 level | RS422串口、外同步输入485电平 RS422 serial port, external synchronous input 485 level | RS422串口、外同步输入485电平 RS422 serial port, external synchronous input 485 level |
尺寸 Dimension | ≤200X120X80mm | ≤550X220X120mm | ≤580X240X110mm |
重量 Weight | ≤2Kg | ≤10Kg | ≤10Kg |
冷却方式 Cooling method | 风冷 Air cooling | 风冷 Air cooling | 水冷/风冷 Water cooling/air cooling |
冷却水箱尺寸 Cooling water tank size | --- | --- | 5Ux450mm |
水箱重量 Water tank weight | --- | --- | ＜22kg |
工作温度 Operating temperature | -40℃～+55℃ | -40℃～+55℃ | 0℃～+55℃ |
贮存温度 Storage temperature | -50℃～+70℃ | -50℃～+70℃ | -10℃～+70℃ |
电气接口：
ELECTRICAL INTERFACE
1、接插件要求
采用J30JM-15ZK和J30JM-15ZJ作为供电和通讯接口。
2、接插件插座编号定义
具体如表1、2所示。
Electrical interface:
1. Requirements for connectors
J30JM-15ZK and J30JM-15ZJ are used as power supply and communication interfaces.
2. Definition of socket number of connector
The details are shown in Table 1 and 2.
表1 “DC28V入”接口定义
Table 1 Definition of the DC28V Incoming interface
引脚 Pin | 信号定义 Signal definition | 备注 Remarks |
1~8 | 24V+ | |
9~15 | GND |
“通讯”接口定义见下表。
The "communication" interface is defined in the following table.
表2 “通讯”接口定义
Table 2 "Communication" interface definition
引脚 Pin | 信号定义 Signal definition | 备注 Remarks |
1 | 外触发+ External trigger + | 3.3V差分 3.3V difference |
2 | 外触发- External trigger - | |
3 | RS422 RX+ | 串口通讯接口 Serial port communication interface |
4 | RS422 RX- | |
5 | RS422 TX+ | |
6 | RS422 TX- | |
7 | GND | 信号地 Signally |
8 | 外同步+ External synchronization + | 3.3V差分 3.3V difference |
9 | 外同步- External synchronization - | |
10 | NC |

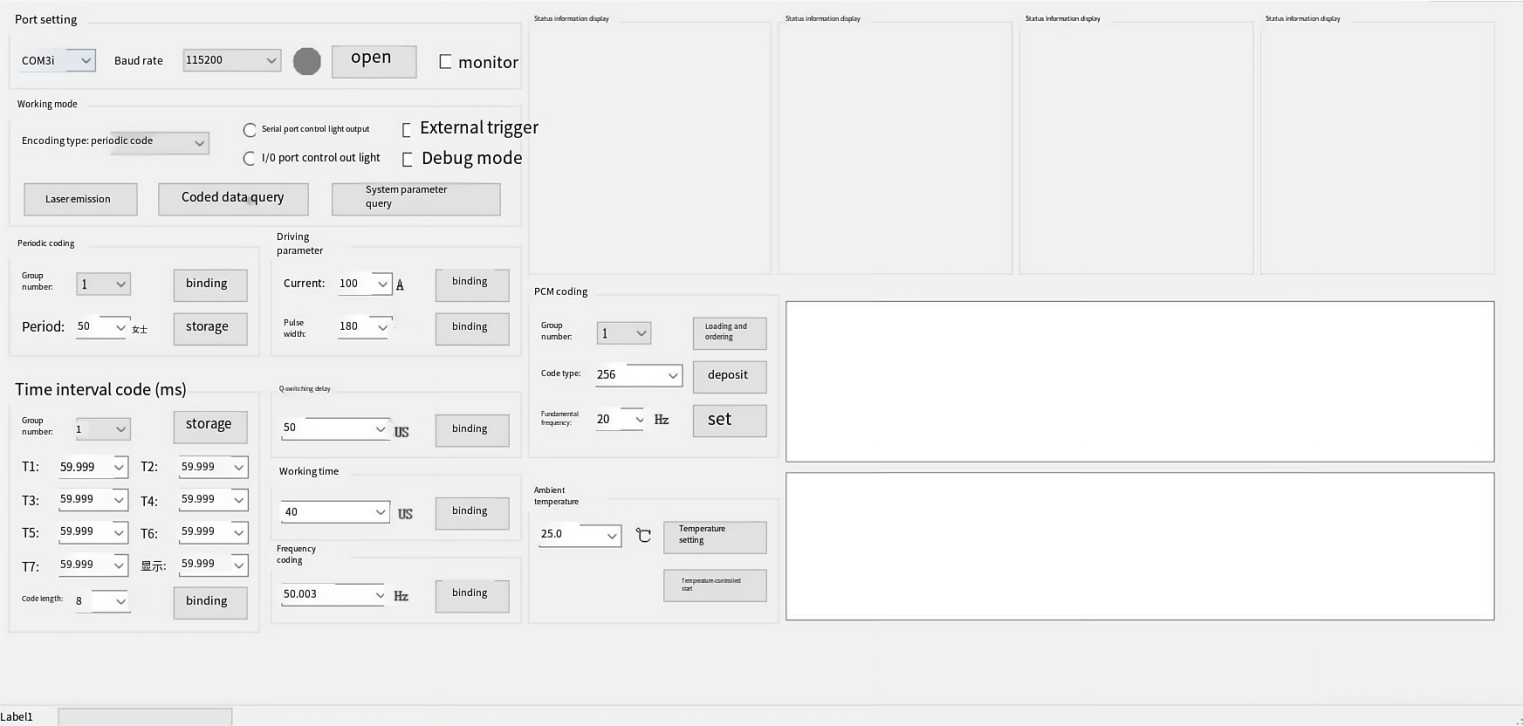

操控软件
CONTROL SOFTWARE
