SOI芯片式高速多通道光衰减器
SOI Chip-based High Speed Multichannel VOA
SOI芯片式多通通可调光衰减器，基于硅基载流子色散效应实现高速响应的可调光路衰减，实现多通道VOA器件单片化集成，芯片与多通道光纤阵列和外围驱动电路一体化光电封装，数字化驱动，偏振相关性小，衰减范围大，调节精度高，衰减值稳定，响应时间为纳秒级，可在高速、低时延系统中应用。
Multi-channel variable optical attenuators based on SOI platform is a new product, which is digitally driven to adjust the attenuation of multi-channel fiber optical paths. This product achieved the integration of a large number of VOA channels on a single SOI chip, and electro-optically co-packaged with fiber array and circuit board. It is capable of tiny polarization-sensitivity, large attenuation range, high adjustment accuracy, stable attenuation value, and especially high-speed response time on the order of nano-second. It is of great value for applications in some high-speed and low-time delay system.
〖特性Features〗
n 多通道
Multi-channels
n 高集成度芯片化
Chip based
n 高速响应
High speed response
应用Applications〗
n 光纤传感
Optical fiber sensor
n 光纤通信
Optical fiber communications
n 光纤器件测试
Optical fiber device testing
〖性能指标Specifications〗
参数指标 Parameters
| 单位 Unit | 最小值 Min. | 典型值 Typ.
| 最大值 Max. | 备注 Notes |
波长范围 Wavelength range
| nm | 1530—1570 nm or 1270nm—1330 nm
| |||
衰减范围 Attenuation range
| dB | 20 | 25 | 40 | |
插入损耗 Insertion loss | dB | 0.8 | 1.2 | 2 | |
偏振相关损耗 PDL | dB | 0.3 | 0.5 | ||
衰减精度 Attenuation accuracy | dB | ±0.1 | |||
通道数 number of channels
| 8—16或可定制 8—16 or Can be customized | ||||
光功率 Transmission optical power | mW | 80或可定制 80 or Can be customized | |||
芯片级响应时间 Response Time | ns | 30 | 200 | 300 | |
工作温度范围 Operating temperature range | °C | -20 | 50 | ||
驱动电流 drive current
| mAAA | 45 | 60 | 20dB 衰减时 20dB attenuation time | |
驱动电压 drive voltage
| V | 4.2 | 4.5 | 20dB 衰减时 20dB attenuation time | |
工作湿度范围 Operating humidity range | % | +65 | |||

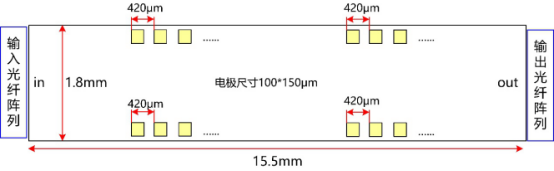

芯片尺寸 Chip Dimensions | mm | 15.5(L)×1.8(W)×0.5(H) | |||
ZG | 波长 Wavelength | 衰减大小 Attenuation size
| 通道数 Number of channels |
13=1310nm 15=1550nm | 1=20dB 2=40dB
| 1=1CH 4=4CH 8=8CH 16=CH 48=48CH XX=Other
|
〖订货信息Ordering information〗
