D1X2光开关
Mechanical D1X2 Optical Switch
2x2机械光开关是一种经过行业验证的光纤交换机，具有优异的耐用性和可靠性。它允许在输入光纤和输出光纤之间进行信道选择。它被广泛应用于光网络领域，如OLP和交换模块。
2x2 Mechanical Switch is an industry proven fiber optic switch with excellent durability and reliability. It allows channel selection between input fibers and output fibers. It is widely used in optical network fields such as OLP and switch module.
〖特性Features〗
n 低插入损耗
Low Insert Loss
n 高重复性和稳定性
High Repeatability and Stability
n 锁定和非锁定
Latching and Non-latching
〖应用Applications〗
n OADM光纤监控
OADM Fiber Monitoring
n 光网络保护
Optical Network Protection
n 测量设备
Measurement Equipment
〖性能参数Performance Parameter〗
参数 Parameters | 单位 Unit | 规格 Specification |
波长 Wavelength | nm | 1310±50 |
插入损耗（最大值） Insertion Loss(Max) | dB | ≤0.8 |
回波损耗 Return Loss | dB | ≥50 |
可重复性 Repeatability | dB | ≤ 0.02 |
串扰 Crosstalk | dB | ≥50 |
偏振相关损耗 PDL | dB | ≤ 0.05 |
温度相关损耗 TDL | dB | ≤ 0.25 |
工作温度 Operation Temperature | ℃ | -20~70 |
储存温度 Storage Temperature | ℃ | -40~85 |
切换时间 Switch Time | ms | ≤5 |
使用寿命 Durability | Cycle | ≥107 |
光功率 Optical Power | mw | ≤500 |
控制电压 Control Voltage | V | 3 or 5 |
光纤类型 Fiber Type | 单模，G657 Singlemode, G657 | |
尾纤长度 Fiber Length | 1±0.05 M | |
连接器类型 Connector Type | LC/APC | |
注意: 1.损耗基于23℃、中心波长±50nm的测试结果。多频带增加0.2dB。 2.重复性是在100次循环后定义的. 3.不包括连接器，连接器的插入损耗增加0.2dB. Notes: 1.The loss is based on the test results at 23℃ at the central wavelength ±50nm. Multiband adds 0.2dB. 2.Repeatability is defined after 100 cycles. 3.Excluding connector, the insertion loss of connector is increased by 0.2dB. | ||

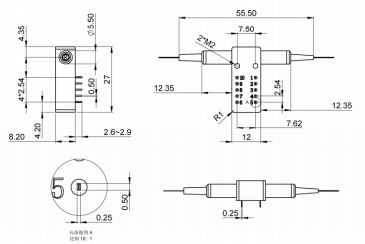

〖尺寸图Mechanical Dimension〗
〖引脚定义Pin Definition〗

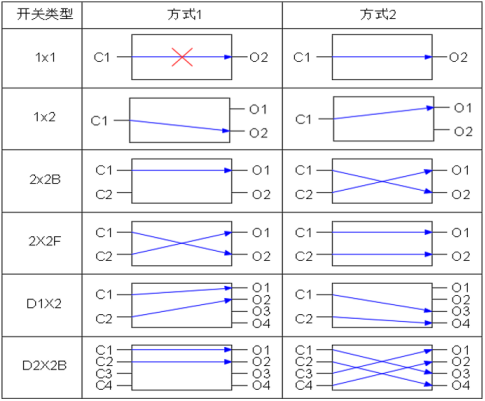

Type | Status | Optical Path | Electric Drive | Status Sensor | ||||||
D1x2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | ||
Latching | A | C1→O1, C2→O2 | -- | -- | GND | V+ | Close | Open | Open | Close |
B | C1→O3, C2→O4 | V+ | GND | -- | -- | Open | Close | Close | Open | |
Non-Latching | A | C1→O1, C2→O2 | -- | -- | -- | -- | Close | Open | Open | Close |
B | C1→O3, C2→O4 | V+ | -- | -- | GND | Open | Close | Close | Open | |
〖电流和电阻参数Parameters for current and resistance〗
Specification | Voltage | Current | Resistance | |
5V | Latching | 4.5~5.5V | 36~44mA | 125Ω |
5V | Non-Latching | 4.5~5.5V | 26~32mA | 175Ω |
3V | Latching | 2.7~3.3V | 54~66mA | 50Ω |
3V | Non-Latching | 2.7~3.3V | 39~47mA | 70Ω |
〖订货信息Order InformationMOS-A-B-C-D-E-F-G-H (MOS: Mechanical Optical Switch )〗
A | B | C | D | E | F | G | H |
Port type | Fiber | Control Voltage | Test | Switch Type | Tube | Fiber Length | Connector |
1×1 1×2 2×2B 2x2F D1×2 D2×2B | G657A1 G657A2 OM1 62.5/125 OM2 50/125 | 3:3V 5:5V | 850:850nm 1310:1310nm 1550:1550nm 1315:1310&1550nm | L：Latching N:Non-Latchig
| 25:250um 90:900um Others | 05:0.5m±5cm 10:1.0m±5cm 15:1.5m±5cm Others | OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC X: Others |
注意事项：
1.以上规格仅显示模块的典型性能。
2.请联系我们的销售人员讨论您的具体要求。
Notes:
1. Above specifications just show the typical performance of Module.
2. Please contact our sales to discuss your specific requirements.
