（2+1）×1泵浦合束器（MPC）
(2+1)×1 Multi-Mode Pump Combiner (MPC)
〖产品描述Description〗
这种（2+1）×1多模光纤组合器是为高功率EDFA应用而设计的。它将两个泵浦激光器和一个信号通道组合成一个双包层输出光纤。光纤类型可定制。
This (2+1)×1 multi-mode fiber combiner is designed for high power EDFA application. It combines two pump lasers and one signal channel into one double cladding output fiber. Fiber type can be customized.
〖主要特点Key Features〗
n 高信号传输效率
High Signal Transfer Efficiency
n 高泵效率
High Pump Efficiency
n 波长不敏感
Wavelength Insensitive
n 提供自定义配置
Custom Configurations Available

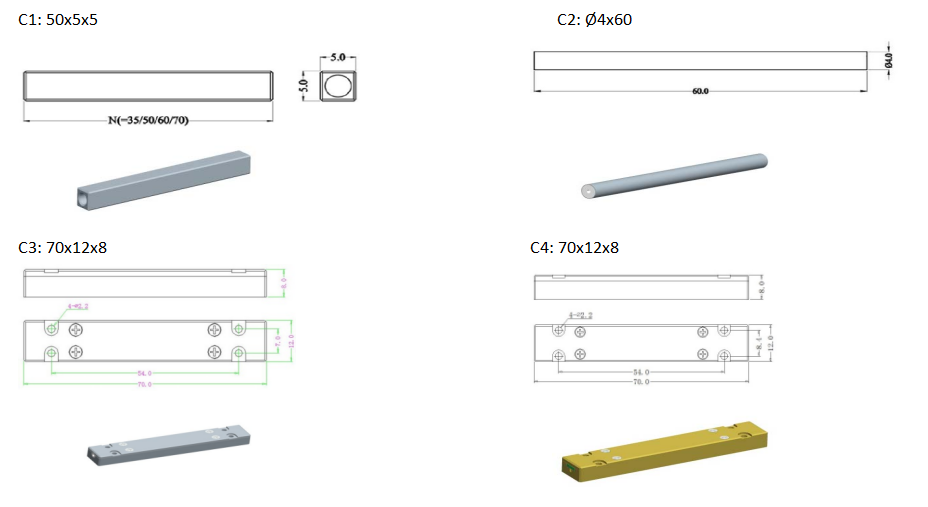

〖机械尺寸Mechanical Dimension〗
〖性能参数Performance Parameter〗
参数/试验条件 Parameters/Test conditions | 最小值 Min. | 典型值 Typ. | 最大值Max. | 单位 Unit | 备注 Note | ||
1 | 信号工作波长 Signal Operating Wavelength | 1500 | 1550 | 1600 | nm | ||
2 | 泵浦工作波长 Pump Operating Wavelength | 800 | 1000 | nm | |||
3 | 泵浦光纤 Pump Fiber | 纤芯直径 Core Diameter | 105 | µm | 参考光纤编码 Refer to fiber codes | ||
4 | 包层直径 Cladding Diameter | 125 | µm | ||||
5 | 数值孔径 Numerical Aperture | 0.15, 0.22 | - | ||||
6 | 信号光纤 Signal Fiber | SMF-28e (XB) or 1550GDF or DCF-UN-8/125-14 | 参考光纤编码 Refer to fiber codes | ||||
泵浦效率（%） Pump Efficiency (%) | 泵浦效率（%） Pump Efficiency (%) | 参考光纤类型 Refer to fiber codes | |||||
7 | 输出光纤 Output Fiber | 1550GDF | >90（Typ. 95） | <0.5（Typ. 0.3） | |||
DCF-UN-8/125-14 | >90（Typ. 95） | <0.5（Typ. 0.3） | |||||
8 | ㎡ | 1.3 | - | ||||
9 | 光隔离 Optical Isolation | 25 | 30 | dB | |||
10 | 尾纤长度 Fiber Length | 0.8 | m | 每个端口 Each port | |||
11 | 额定功率 Power Handling | 25 | 50 | W | 每个端口 Each port | ||
12 | 工作环境温度 Operating Environment Temperature | -5 | +70 | ℃ | |||
13 | 工作湿度 Operating Humidity | 5 | 95 | %RH | 不建议长时间在高湿度环境中使用。 Not recommend in high humidity for long time. | ||
14 | 储存温度 Storage Temperature | -40 | +85 | ℃ | |||
15 | 封装 Package | C1, C2, C3, C4 | - | Handling power is different with PKG | |||
〖订购信息Ordering information〗
MPC-（2+1）×1-F（B）-泵浦波长/泵浦功率信号波长泵浦光纤/信号光纤输出光纤封装光纤长度
注：F： 正向泵；B： 向后泵送。
泵浦/信号/输出光纤：请参阅光纤类型。
包装：C1、C2、C3、C4
C1:10W/端口；C2:10W/端口；C3:25W/端口；C4:50W/端口
MPC-(2+1)×1-F(B)-Pump wavelength/Pump power-Signal wavelength-Pump fiber/Signal fiber-Output fiber-Package-Fiber length
Note :
F: Forward pump; B: Backward pump.
Pump/Signal/Output fiber: refer to fiber codes.
Package: C1, C2, C3, C4
C1: 10W/port; C2: 10W/port; C3: 25W/port; C4: 50W/port
