261nm低噪声激光器
LLDZS261-50mw
| Central wavelength (nm)波长 | 261±1 |
| Operating mode工作方式 | CW |
| Output power (mW)功率 | 1-50 |
| Power stability (rms, over 4 hours)功率稳定性 | <3%, <2%, <1% |
| Transverse mode光斑模式 | Near TEM00 |
| Beam diameter at the aperture (1/e2, mm)光斑尺寸 | <3.0 |
| Noise of amplitude (rms, 1Hz~20MHz)性噪比 | <1% |
| Beam divergence, full angle (mrad)发散角 | <5 |
| Warm-up time (minutes)上升时间 | <10 |
| Polarization Ratio偏振 | >50:1, Horizontal (Vertical Optional) |

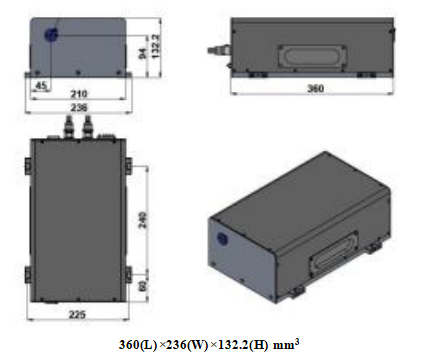

| Beam height from base plate (mm)中心高 | 94 |
| Cooled method (Water Cooled)制冷 | WCH-580 |
| Operating temperature (℃)工作温度 | 10~35 |
| Power supply供电 | 12V DC (Photoelectric integrated) |
| Warranty保修 | 1 year |
