All parameters without connector’s loss,and it isn’t include the loss in special environment.

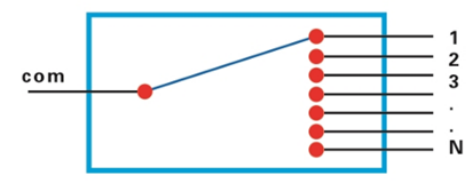

光路

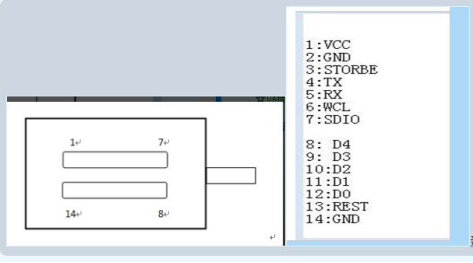

管脚定义

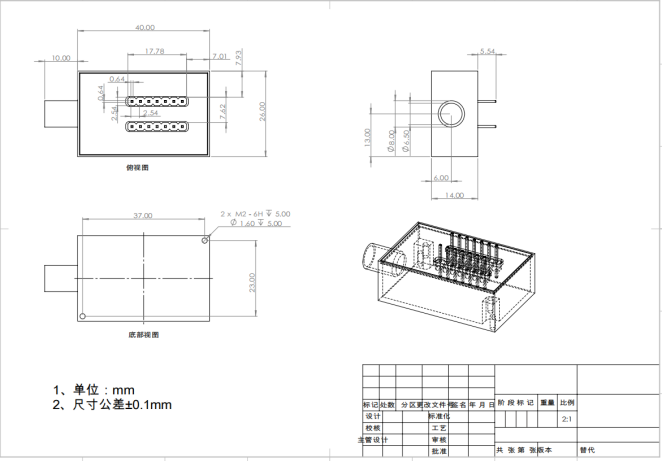

尺寸图

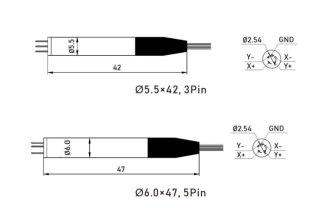

器件尺寸


订货信息

路数

Channel

波长

Wavelength

光纤类型

Fiber type

电压

Voltage

套管

Casing

纤长

Fiber length

连接头

Connector

14=1x4

18=1x8

16=1x16

132=1x32

X=others

13: 1310nm

15: 1550nm

13/15: 1310+1550nm

X:other

SM: 单模

SM: Single Mode

X:   其他

X:Others

5-5V

025: Φ0.25mm

09: Φ0.9mm

X:   other

05: 0.5m

10: 1.0m

15: 1.5m

X: other

1:SC/UPC

2:SC/APC

3:LC/UPC

4:FC/UPC

5:FC/APC
