型号 | 传感器型号与尺寸 | 像素(μm) | G光灵敏度 暗电流 | FPS/分辨率 | 采样平均 | 曝光时间 |
|---|---|---|---|---|---|---|
E3ISPM45000KPA | 45M/IMX294(C) 1.4“ (18.93x13.00) | 2.315x2.315 | 108mv with 1/30s 0.03mv with 1/30s | 8.1@8176x5616 30.0@4088x2808 8.1@7408x5556 33.0@4088x2808 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1344x720 | 1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9) | 0.1ms~15s |
E3ISPM45000KPB | 45M/IMX492(C,RS) 1.4“ (18.93x13.00) | 2.315x2.315 | 108mv with 1/30s 0.03mv with 1/30s | 8.1@8176x5616(C) 30.0@4080x2808(M) 8.1@7408x5556(C) 33.0@3696x2778(M) 10.4@8176x4320(C) 34.7@4096x2160(M) 62.5@2048x1080(M) 86.5@1344x720(M) | 1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9) | 0.1ms~15s |
E3ISPM32000KPA | 32M/IMX294(C) 1.15“ (12.96x12.96) | 2.315x2.315 | 108mv with 1/30s 0.03mv with 1/30s | 8.1@5600x5600 30.0@2800x2800 30.0@1400x1400 | 1x1 2x2 4x4 | 0.1ms~15s |
E3ISPM25000KPA | 25M/IMX511(C) 1/2.3 “ (5.519x5.519) | 1.12x1.12 | 96.3mv with 1/30s 0.1mv with 1/30s | 12@4928x4928 46@2464x2464 100@1648x1648 | 1x1 2x2 3x3 | 0.013ms~15s |
E3ISPM21000KPA | 21M/IMX269(C) 4/3 “(17.4x13.0) | 3.3 x3.3 | 399mv with 1/30s 0.1mv with 1/30s | 17@5280x3954 17@3952x3952 56@2640x1976 67@1760x1316 192@584x438 | 1x1 1x1 2x2 3x3 9x9 | 0.1ms~15s |
E3ISPM20400KPA | 20.4M/IMX541(C,GS) 1.1 “(12.32x12.32) | 2.74 x2.74 | 1574mv with 1/30s 0.15mv with 1/30s | 17.5@4496x4496 64.4@2240x2240 64.4@1120x1120 | 1x1 2x2 4x4 | 0.03ms~15s |
E3ISPM20000KPA | 20M/IMX183(C,RS) 1 “(13.06x8.76) | 2.4 x2.4 | 462mv with 1/30s 0.21mv with 1/30s | 15@5440x3648 50@2736x1824 60@1824x1216 | 1x1 2x2 3x3 | 0.1ms~15s |
E3ISPM20000KPC | 20M/IMX183(C,RS) 1 “(13.06x8.76) | 2.4 x2.4 | 462mv with 1/30s 0.21mv with 1/30s | 20@5440x3648 48@2736x1824 58@1824x1216 | 1x1 2x2 3x3 | 0.1ms~15s |
E3ISPM18000KPA | 18M/SONY Special(C) 1/2.2 “(5.86x4.46) | 1.2 x1.2 | 130mv with 1/30s 0.1mv with 1/30s | 17@4880x3720 40@2448x1836 50@1728x1296 | 1x1 2x2 3x3 | 0.1ms~15s |
E3ISPM15600KPA | 15.6M/SONY Special (C) 1.1 “(13.0x13.0) | 3.3 x3.3 | 399mv with 1/30s 0.1mv with 1/30s | 17@3952x3952 56@1976x1976 67@1316x1316 | 1x1 2x2 3x3 | 0.1ms~15s |
E3ISPM12400KPA | 12.4M/IMX545(C,GS) 1/1.1 “(11.22x8.22) | 2.74 x2.74 | 1337mv with 1/30s 0.15mv with 1/30s | 28.2@4096x3000 100.9@2048x1500 100.9@1024x750 | 1x1 2x2 4x4 | 0.03ms~15s |
E3ISPM12300KPA | 12.3M/IMX304(C,GS) 1.1”(14.13x10.35) | 3.45x3.45 | 1146mv with 1/30s 0.1mv with 1/30s | 23.4@4096x3000 46.3@2048x1500 | 1x1 1x1 | 0.244ms~15s |
E3ISPM12000KPA | 12M/IMX226(C) 1/1.7“(7.40x5.55) | 1.85x1.85 | 280mv with 1/30s 0.1mv with 1/30s | 25@4000x3000 50@2048x1080 | 1x1 2x2 | 0.1ms~15s |
E3ISPM12000KPB | 12M/IMX577(C) 1/2“(6.29x4.71) | 1.55x1.55 | 250mv with 1/30s 0.25mv with 1/30s | 30@4056x3040 60@2028x1520 120@1014x760 | 1x1 2x2 4x4 | 0.1ms~5s |
E3ISPM12000KPC | 12M/IMX676(C) 1/1.6“(7.07x7.07) | 2.0x2.0 | 3637mv with 12 bit converted value(HCG) 0.15mv with 1/30s | 27@3536x3536 60@1768x1768 | 1x1 2x2 | 0.013ms~15s |
E3ISPM09000KPA | 9.0M/IMX305(C,GS) 1“ (14.13x7.45) | 3.45x3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 34@4096x2160 60@2048x1080 | 1x1 1x1 | 0.1ms~15s |
E3ISPM09000KPB | 9.0M/IMX533(C) 1“ (11.31x11.28) | 3.76x3.76 | 535mv with 1/30s 0.04mv with 1/30s | 40@3008x3000 123@1488x1500 186@992x998 | 1x1 2x2 3x3 | 0.1ms~15s |
E3ISPM08300KPA | 8.3M/IMX274(C) 1/2.5”(6.22x3.50) | 1.62x1.62 | 236mv with 1/30s 0.1mv with 1/30s | 32@3840x2160 65@1920x1080 | 1x1 2x2 | 0.244ms~15s |
E3ISPM08300KPB | 8.3M/IMX334(C) 1/1.8”(7.68x4.32) | 2.0x2.0 | 505mv with 1/30s 0.1mv with 1/30s | 35@3840x2160 60@1920x1080 | 1x1 2x2 | 0.02ms~15s |
E3ISPM08300KPC | 8.3M/IMX485(C) 1/1.2”(11.14x6.26) | 2.9x2.9 | 2188mv with 1/30s 0.15mv with 1/30s | 45@3840x2160 70@1920x1080 | 1x1 2x2 | 0.02ms~15s |
E3ISPM08300KPD | 8.3M/IMX585(C) 1/1.2”(11.14x6.26) | 2.9x2.9 | 5970(mV/lx/s) 0.13mv with 1/30s | 45@3840x2160 70@1920x1080 | 1x1 2x2 | 0.02ms~15s |
E3ISPM08300KPE | 8.3M/IMX678(C) 1/1.8”(7.68x4.32) | 2.0x2.0 | 3541(mV/lx/s) 0.15mv with 1/30s | 45@3840x2160 70@1920x1080 | 1x1 2x2 | 0.02ms~15s |
E3ISPM08000KPA | 8.0M/IMX294(C) 1.15 “(13.00x13.00) | 4.63 x4.63 | 419mv with 1/30s 0.12mv with 1/30s | 30@2808x2808(14bit) 139@1392x1392 139@696x696 | 1x1 2x2 4x4 | 0.1ms~15s |
E3ISPM06300KPA | 6.3M/IMX178(C,RS) 1/1.8“ (7.37x4.92) | 2.4x2.4 | 425mv with 1/30s 0.15mv with 1/30s | 30@3072 x2048 38@1536x 1024 | 1x1 2x2 | 0.1ms~15s |
E3ISPM06300KPB | 6.3M/IMX178(C,RS) 1/1.8“ (7.37x4.92) | 2.4x2.4 | 425mv with 1/30s 0.15mv with 1/30s | 59@3072 x2048 59@1536x 1024 | 1x1 2x2 | 0.02ms~15s |
E3ISPM05100KPA | 5.1M/IMX547(C,GS) 1/1.8“ (6.71x5.61) | 2.74x2.74 | 1337mv with 1/30s 0.15mv with 1/30s | 63@2448x2048 208.4@1224x1024 | 1x1 2x2 | 0.03ms~15s |
E3ISPM05000KPA | 5.0M/IMX264(C, GS) 2/3” (8.45x7.07) | 3.45x3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 35@2448x2048 50@1224x1024 | 1x1 1x1 | 0.1ms~15s |
E3ISPM03100KPA | 3.1M/IMX265(C, GS) 1/1.8“ (7.07x5.30) | 3.45x3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 53@2048x1536 85@1024x768 | 1x1 1x1 | 0.1ms~15s |
E3ISPM03100KPB | 3.1M/IMX123(C) 1/2.8“ (5.12x3.84) | 2.5x2.5 | 600mv with 1/30s 0.15mv with 1/30s | 50@2048x1536 50@1920x1080 | 1x1 1x1 | 0.1ms~15s |
E3ISPM02100KPA | 2.1M/IMX482(C) 1/1.2”(11.14x6.26) | 5.8x5.8 | 8935mv with 1/30s 0.6mv with 1/30s | 96@1920x1080 | 1x1 | 14us~15s |
E3ISPM02000KPA | 2M/IMX385(C) 1/2“ (7.2x4.05) | 3.75x3.75 | 2350mv with 1/30s 0.15mv with 1/30s | 125@1920x1080 | 1x1 | 0.1ms~15s |
E3ISPM01500KPA | 1.5M/IMX273(C, GS) 1/2.9“ (4.968x3.726) | 3.45x3.45 | 1146mv with 1/30s 0.15mv with 1/30s | 164@1440x1080 320@720x540 | 1x1 2x2 | 0.1ms~15s |
型号 | 传感器型号与尺寸 | 像素(μm) | G光灵敏度 暗电流 | FPS/分辨率 | 采样平均 | 曝光时间 |
其他硬件参数 | |
|---|---|
光谱响应范围 | 380-650nm (有红外截止滤光片情况下) |
白平衡 | ROI 白平衡/手动Temp-Tint调整 |
色彩还原技术 | Ultra-Fine硬件ISP视频处理引擎 |
捕获与控制API | Windows/Linux/macOS/Android多平台SDK(原生C/C++, C#/VB.NET, Python, Java, DirectShow, Twain等) |
位深度 | 8 Bit / 12 Bit |
记录方式 | 图像和视频 |
致冷方式* | 自然冷却 |
相机工作环境 | |
工作温度（摄氏度） | -10~ 50 |
贮存温度（摄氏度） | -20~ 60 |
工作湿度 | 30~80%RH |
贮存湿度 | 10~60%RH |
供电电源 | 相机通过USB3.0接口供电(兼容USB2.0) |
软件运行环境 | |
操作系统 | Microsoft® Windows® XP/ Vista / 7 / 8 /10 /11(32 & 64 位) |
计算机配置 | CPU:Intel Core 2 2.8GHz 或更高 |
内存:2GB或更大 | |
USB接口: USB3.0高速接口或USB2.0接口 | |
显示器:17”或以上 | |
CD-ROM | |
E3ISPM 系列相机可用于普通明场或弱光或荧光光场显微图像的拍摄。

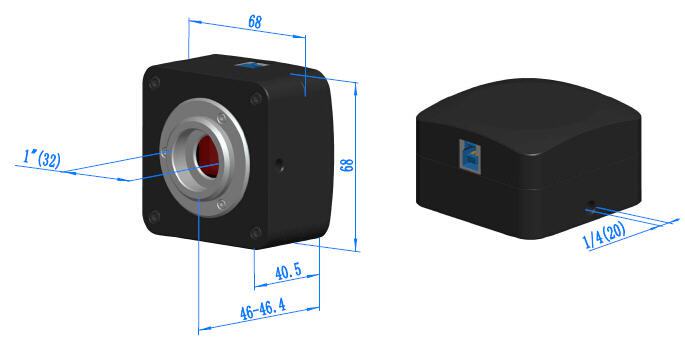

E3ISPM 系列相机外形尺寸示意图。相机壳体由坚硬锌铝合金经CNC机械加工而成，美观大方。相机传感器的前端安装有高品质的IR-CUT或双AR膜，主要起到滤除成像中的红外光波，同时保护相机传感器作用。相比其他品牌相机，图谱光电的相机无运动部件以确保相机坚固可靠、经久耐用，同时不存在由于运动部件抖动而引发的成像模糊。

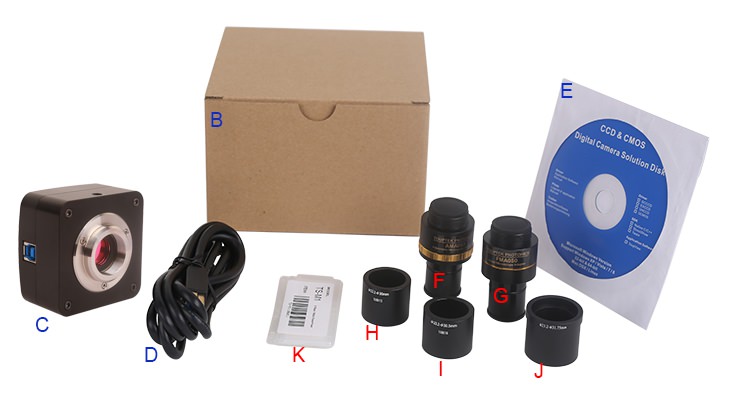

标准装箱清单 | |||
|---|---|---|---|
A | 包装箱规格：L:52cm W:32cm H:33cm(20pcs, 12~17Kg/纸箱)，上图中未给出 | ||
B | 包装盒规格：L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) | ||
C | E3ISPM系列相机 | ||
D | 高速USB3.0 A公到B公镀金头数据线/2.0m | ||
E | CD (驱动以及应用软件, Ø12cm) | ||
可选附件 | |||
F | 可调焦式目镜筒适配器 | Dia.23.2mm目镜筒转C接口 (请根据你的相机与显微镜选择其中之一) | 108001/AMA037 108002/AMA050 108003/AMA075 108004/AMA100 |
Dia.31.75mm目镜筒转C接口 (请根据你的相机与望远镜选择其中之一) | 108008/ATA037 108009/ATA050 108010/ATA075 108011/ATA100 | ||
G | 固定式目镜筒适配器 | Dia.23.2mm目镜筒转C接口 (请根据你的相机与显微镜选择其中之一) | 108005/FMA037 108006/FMA050 108007/FMA075 108008/FMA100 |
Dia.31.75mm目镜筒转C接口 (请根据你的相机与望远镜选择其中之一) | 108011/FTA037 108012/FTA050 108013/FTA075 108014/FTA100 | ||
注意： 对F和G选项, 请先确定你的相机型号(C接口，显微镜相机或望远镜相机), 图谱光电的工程师会根据你的应用帮助你选定合适的显微镜或望远镜适配器； | |||
H | 108015(Dia.23.2mm to 30.0mm环)/用于直径30mm目镜筒转接环 | ||
I | 108016(Dia.23.2mm to 30.5mm环)/用于直径30.5mm目镜筒转接环 | ||
J | 108017(Dia.23.2mm to 31.75mm环)/用于直径31.75目镜筒转接环 | ||
K | 测微尺 | 106011/TS-M1(X=0.01mm/100Div.) 106012/TS-M2(X,Y=0.01mm/100Div.) 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |
