型号 | 传感器型号与尺寸 | 像素(μm) | G光灵敏度/暗电流 | FPS/分辨率/位深度 | 采样平均 | 曝光时间 |
|---|---|---|---|---|---|---|
MTR3CMOS45000KMA | 45M/IMX492(M, RS) 1.4”(19.11x13.00) | 2.315 x2.315 | 351mV with 1/30s 0.12mV with 1/30s | 8.1@8176x5616 30.0@4080x2808 8.1@7408x5556 33.0@3696x2778 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1360x720 8 Bit / 12 Bit | 1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9)
| 0.1ms~1h |
MTR3CMOS26000KPA | 26M/IMX571(C, RS) 1.8”(23.48x15.67) APS-C | 3.76 x3.76 | 485mv with 1/30s 0.07mv with 1/30s | 14@6224x4168 37@3104x2084 110@2064x1386 8 Bit / 16 Bit | 1x1 2x2 3x3
| 0.1ms~1h |
MTR3CMOS26000KMA | 26M/IMX571(M, RS) 1.8 ”(23.48x15.67) APS-C | 3.76 x3.76 | 871mv with 1/30s 0.07mv with 1/30s | 14@6224x4168 37@3104x2084 110@2064x1386 8 Bit / 16 Bit | 1x1 2x2 3x3
| 0.1ms~1h |
MTR3CMOS21000KPA | 21M/IMX269(C) 4/3”(17.4x13.1) | 3.3 x3.3 | 400mv with 1/30s 0.1mv with 1/30s | 17@5280x3954 17@3952x3952 56@2640x1976 67@1760x1316 192@584x438 8 Bit / 12 Bi | 1x1 1x1 2x2 3x3 9x9
| 0.1ms~1h |
MTR3CMOS20000KPA | 20M/IMX183(C, RS) 1 ”(13.056x8.755) | 2.4 x2.4 | 462mv with 1/30s 0.21mv with 1/30s | 19.0@5440x3648 48.8@2736x1824 59.4@1824x1216 8 Bit / 12 Bit | 1x1 2x2 3x3
| 0.1ms~1h |
MTR3CMOS20000KMA | 20M/IMX183(M, RS) 1 ”(13.056x8.755) | 2.4 x2.4 | 388mv with 1/30s 0.21mv with 1/30s (F8.0) | 19.0@5440x3648 48.8@2736x1824 59.4@1824x1216 8 Bit / 12 Bit | 1x1 2x2 3x3
| 0.1ms~1h |
MTR3CMOS16000KPA | 16M/MN34230PLJ(C) 4/3” (17.6x13.3) | 3.8x3.8 | 2413LSB 89.1LSB (Gain = 0dB) | 6@4640x3506 20@2304x1750 48.0@1536x1160 8 Bit / 12 Bit | 1x1 2x2 3x3
| 0.15ms~1h |
MTR3CMOS16000KMA | 16M/MN34230ALJ(M) 4/3” (17.6x13.3) | 3.8x3.8 | 2650LSB 89.1LSB (Gain = 0dB) | 22.5@4648x3506 43.0@2304x1750 48.0@1536x1168 8 Bit / 12 Bit | 1x1 2x2 3x3
| 0.15ms~1h |
MTR3CMOS10300KPA | 10.3M/IMX294(C) 4/3 ”(19.11x13.0) | 4.63 x4.63 | 419mv with 1/30s 0.12mv with 1/30s | 30.0@4128x2808 38.5 @4096x2160 59.8@2048x1080 87.2@1360x720 8 Bit / 14 Bit | 1x1 1x1 2x2 3x3
| 0.15ms~1h |
MTR3CMOS10300KMA | 10.3M/IMX492(M, RS) 4/3 ”(19.11x13.0) | 4.63 x4.63 | 701mv with 1/30s 0.12mv with 1/30s | 30.0@4128*2808 38.5@ 4096*2160 59.8@2048*1080 87.2@1360*720 8 Bit / 14 Bit | 1x1 1x1 2x2 3x3
| 0.15ms~1h |
MTR3CMOS09000KPA | 9M/IMX533(C) 1”(11.28x11.28) | 3.76 x3.76 | 534mv with 1/30s 0.04mv with 1/30s | 40@2992x3000 62@1488x1500 186@992x998 8 Bit / 14 Bit | 1x1 2x2 3x3
| 0.1ms~1h |
MTR3CMOS09000KMA | 9M/IMX533(M) 1”(11.28x11.28) | 3.76 x3.76 | 877mv with 1/30s 0.04mv with 1/30s | 40@2992x3000 62@1488x1500 186@992x998 8 Bit / 14 Bit | 1x1 2x2 3x3
| 0.1ms~1h |
MTR3CMOS08300KPA | 8.3M/IMX585(C, RS) 1/1.2”(11.14x6.26) | 2.9x2.9 | 5970mv with 1/30s 0.15mv with 1/30s | 45@3840x2160 70@1920x1080 8 Bit / 12 Bit | 1x1 2x2
| 0.1ms~1h |
MTR3CMOS07100KPA | 7.0M/IMX428(C,GS) 1.1 ”(14.4x9.9) | 4.5 x4.5 | 2058mv with 1/30s 0.15mv with 1/30s | 51.3@3200x2200 133.8@1584x1100 8 Bit / 12 Bit | 1x1 1x1
| 0.1ms~1h |
MTR3CMOS07100KMA | 7.0M/IMX428(M,GS) 1.1 ”(14.4x9.9) | 4.5 x4.5 | 3354mv with 1/30s 0.15mv with 1/30s | 51.3@3200x2200 133.8@1584x1100 8 Bit / 12 Bit | 1x1 1x1
| 0.1ms~1h |
MTR3CMOS02300KPA | 2.3M/SC2110(C,RS) 1.69”(23.0x14.4) | 12x12 | 120000 mV/lux·s @HCG | 120@1920x1200 8 Bit / 12 Bit | 1x1
| 0.1ms~1h |
MTR3CMOS02300KMA | 2.3M/SC2110(M,RS) 1.69”(23.0x14.4) | 12x12 | 120000 mV/lux·s @HCG | 120@1920x1200 8 Bit / 12 Bit | 1x1
| 0.1ms~1h |
MTR3CMOS01700KPA | 1.7M/IMX432(C,GS) 1.1 ”(14.4x9.9) | 9.0 x9.0 | 4910mv with 1/30s 0.3mv with 1/30s | 98.6@1600x1100 8 Bit / 12 Bit | 1x1
| 0.1ms~1h |
MTR3CMOS01700KMA | 1.7M/IMX432(M,GS) 1.1 ”(14.4x9.9) | 9.0 x9.0 | 8100mv with 1/30s 0.3mv with 1/30s | 98.6@1600x1100 8 Bit / 12 Bit | 1x1
| 0.1ms~1h |
MTR3CMOS01300KMA | 1.3M/GLUX9701BSI(M,UV,RS) 1 ”(12.493x9.994) | 9.76 x9.76 | 2.57x108 (e-/((W/m2).s)) QE89%@610nm 0.08(e-/s/pix) @-28C | 30fps@1280×1024 30fps@640×512 8 Bit / HDR 16 Bit | 1x1 2x2
| 0.1ms~1h |
MTR3CMOS00500KMA | 0.5M/GLUX1605BSI(M,UV,RS) 1 ”(12.8x9.6) | 16.0 x16.0 | 6.4x108 (e-/((W/m2).s)) QE91%@550nm 50(e-/s/pix) | 60.0@800x600 60.0@400x300 8 Bit / HDR 16 Bit | 1x1 2x2
| 0.1ms~1h |
型号 | 传感器型号与尺寸 | 像素(μm) | G光灵敏度/暗电流 | FPS/分辨率/位深度 | 采样平均 | 曝光时间 |
其他硬件参数 | |
|---|---|
光谱响应范围 | 380-650nm (有红外截止滤光片情况下) |
白平衡 | ROI 白平衡/手动Temp-Tint调整/黑白相机不提供 |
色彩还原技术 | Ultra-Fine颜色处理引擎 |
捕获/控制SDK | Native C/C++,C#, DirectShow, Twain和Labview |
记录方式 | 图像和视频(软件或硬件触发) |
制冷方式* | 双级循环式热电制冷系统，低于环境温度42度以下，精准可控)(视传感器型号略有差别) |
相机工作环境 | |
工作温度（摄氏度） | -10~ 50 |
贮存温度（摄氏度） | -20~ 60 |
工作湿度 | 30~80%RH |
贮存湿度 | 10~60%RH |
供电电源 | 相机通过USB3.0接口供电(兼容USB2.0) 制冷模块通过外部电源供电，DC12V，3A |
软件运行环境 | |
操作系统 | Microsoft® Windows® XP/ Vista / 7 / 8 /10 /11(32 & 64 位) OS X (Mac OS X) Linux |
计算机配置 | CPU:Intel Core 2 2.8GHz 或更高 |
内存:2GB或更大 | |
USB接口:USB3.0高速接口，兼容USB2.0接口 | |
显示器:17”或以上 | |
CD-ROM | |
MTR3CMOS 系列相机可用于弱光或荧光图像的拍摄，其主要应用有：
明场显微镜；暗场，微分干涉(DIC) 显微镜；
活体细胞成像，细胞或组织病理学检测，细胞学；
缺陷分析，半导体检测，精密测量；
微光荧光成像，GFP或 RFP 分析，荧光原位杂交(FISH)；
荧光共振能量转移显微镜，全内反射荧光显微镜，实时共聚焦显微镜，失效性分析，天体照相；

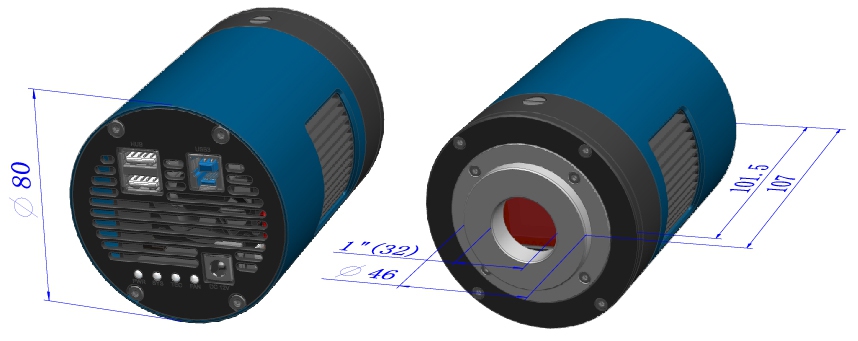

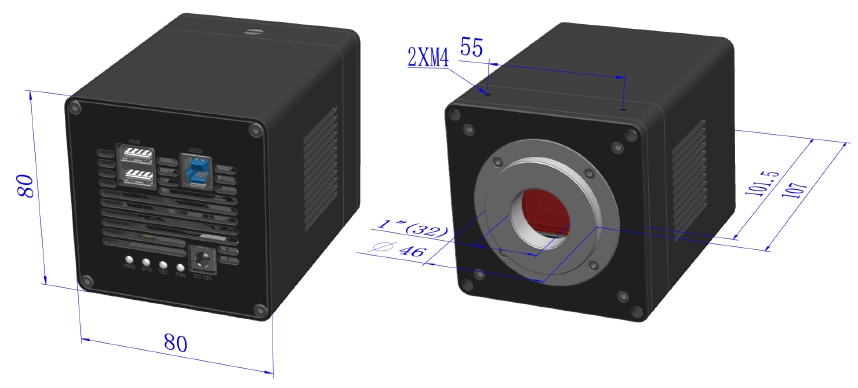

MTR3CMOS 系列相机外形尺寸示意图。相机壳体由坚硬铝合金经CNC精密加工而成。相机传感器的前端安装有高品质的IR-CUT或双面AR保护玻璃，主要起到滤除成像中的红外光波，同时保护相机传感器的作用。
相比其他品牌相机，图谱光电的TE制冷相机密封性好，相机散热风扇经减振以后，不会存在由于风扇抖动引发的成像模糊。

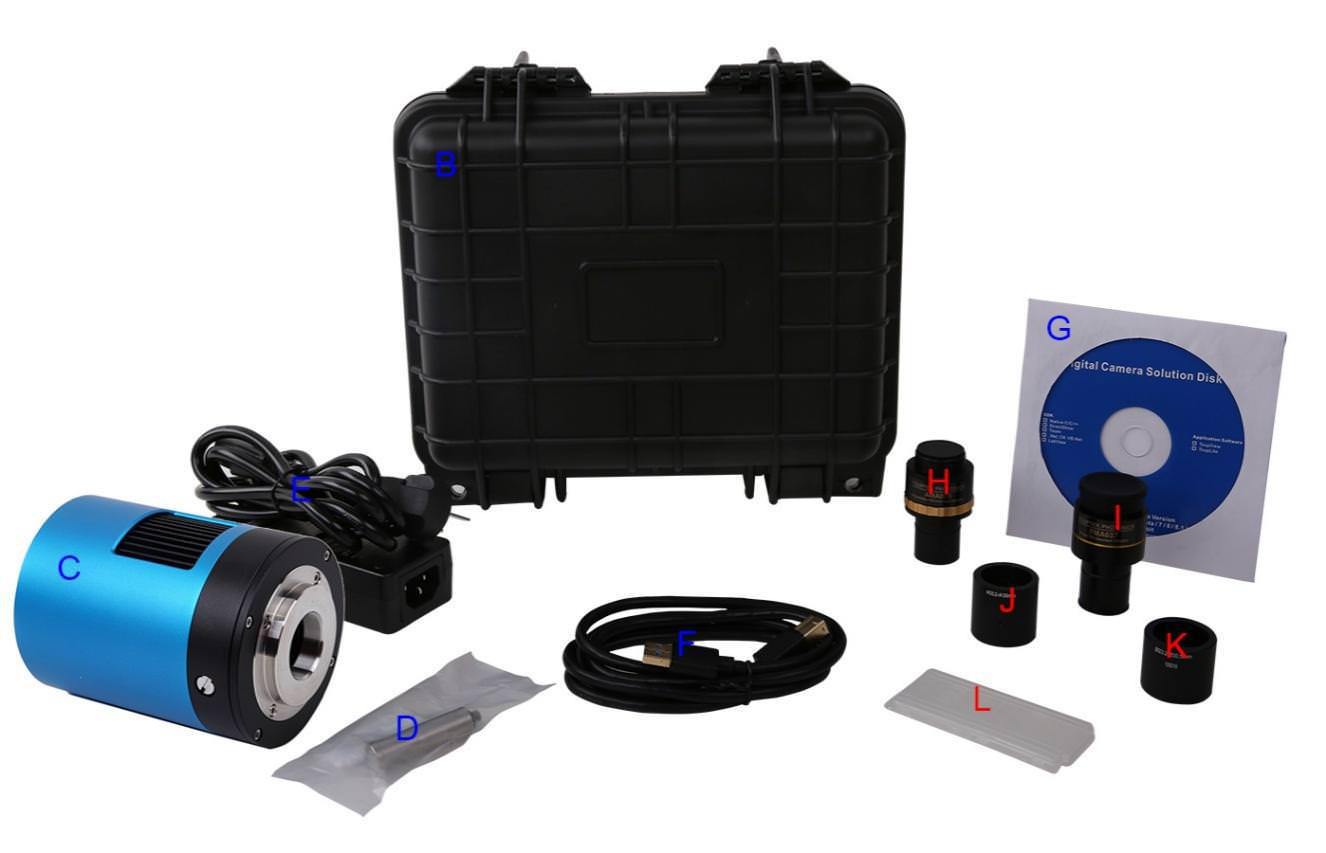

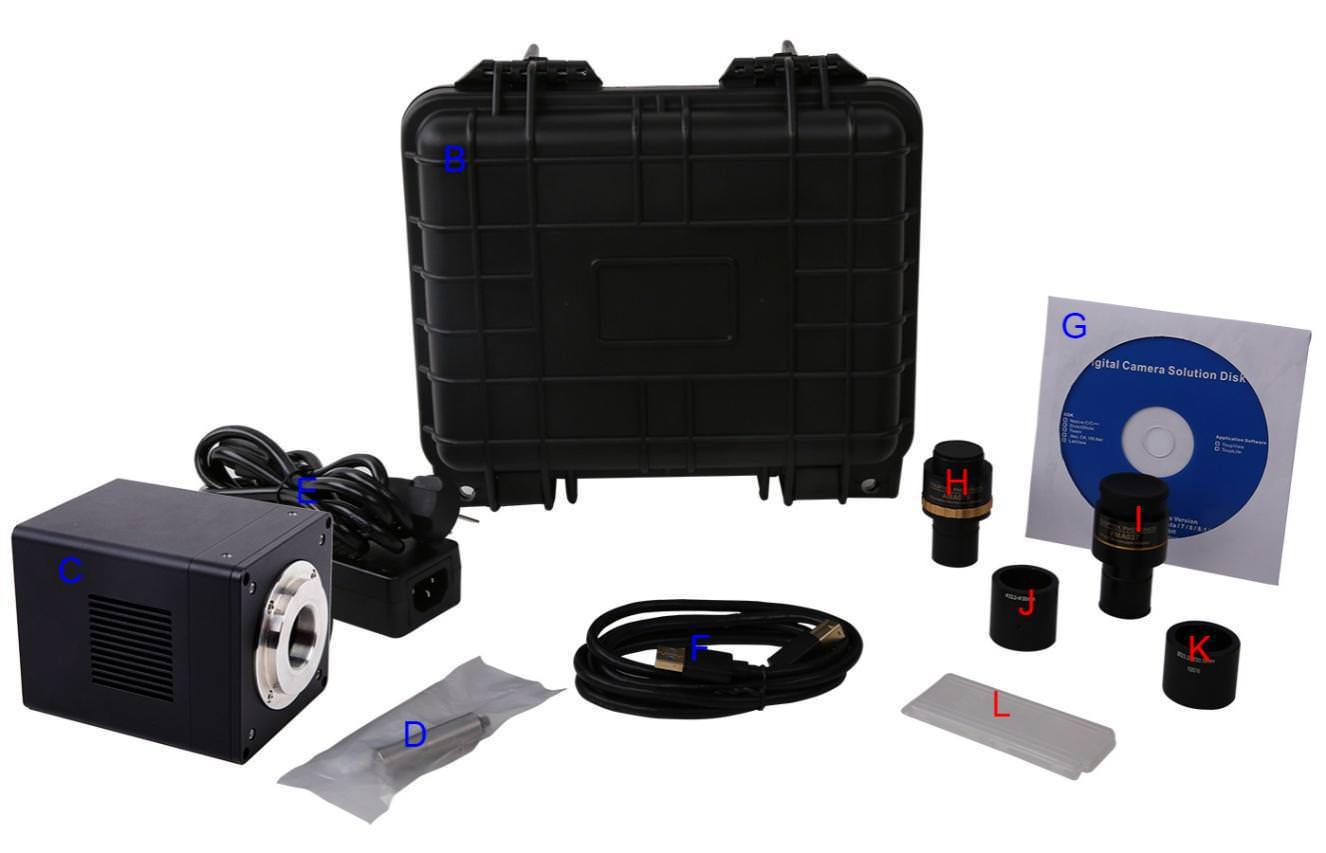

标准包装列表 | |||
|---|---|---|---|
A | 包装箱规格 L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton),这里在图未示出 | ||
B | 3-A仪器安全盒: L:28cm W:23.0cm H:15.5cm (1pcs, 2.8Kg/盒)；外包装纸箱尺寸：L:28.2cm W:25.2cm H:16.7cm | ||
C | MTR3CMOS 系列相机一台 | ||
D | 干燥管 | ||
E | 电源适配器: 输入: AC 100~240V 50Hz/60Hz,输出: DC 12V 3A | ||
F | 高速USB3.0 A公到B公镀金头数据线/1.5m | ||
G | CD (驱动及应用软件, Ø12cm) | ||
可选附件 | |||
H | 可调焦式目镜筒适配器 | Dia.23.2mm目镜筒转C接口 (请根据你的相机与显微镜选择其中之一) | 108001/AMA037 108002/AMA050 108003/AMA075 108004/AMA100 |
Dia.31.75mm目镜筒转C接口 (请根据你的相机与望远镜选择其中之一) | 108008/ATA037 108009/ATA050 108010/ATA075 108011/ATA100 | ||
I | 固定式目镜筒适配器 | Dia.23.2mm目镜筒转C接口 (请根据你的相机与显微镜选择其中之一) | 108005/FMA037 108006/FMA050 108007/FMA075 108008/FMA100 |
Dia.31.75mm目镜筒转C接口 (请根据你的相机与望远镜选择其中之一) | 108011/FTA037 108012/FTA050 108013/FTA075 108014/FTA100 | ||
注意： 对G和H选项, 请先确定你的相机型号(C接口，显微镜相机或望远镜相机), 图谱光电的工程师会根据你的应用帮助你选定合适的显微镜或望远镜适配器； | |||
J | 108015(Dia.23.2mm to 30.0mm环)/用于直径30mm目镜筒转接环 | ||
K | 108016(Dia.23.2mm to 30.5mm环)/用于直径30.5mm目镜筒转接环 | ||
L | 测微尺 | 106011/TS-M1(X=0.01mm/100Div.) 106012/TS-M2(X,Y=0.01mm/100Div.) 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |
