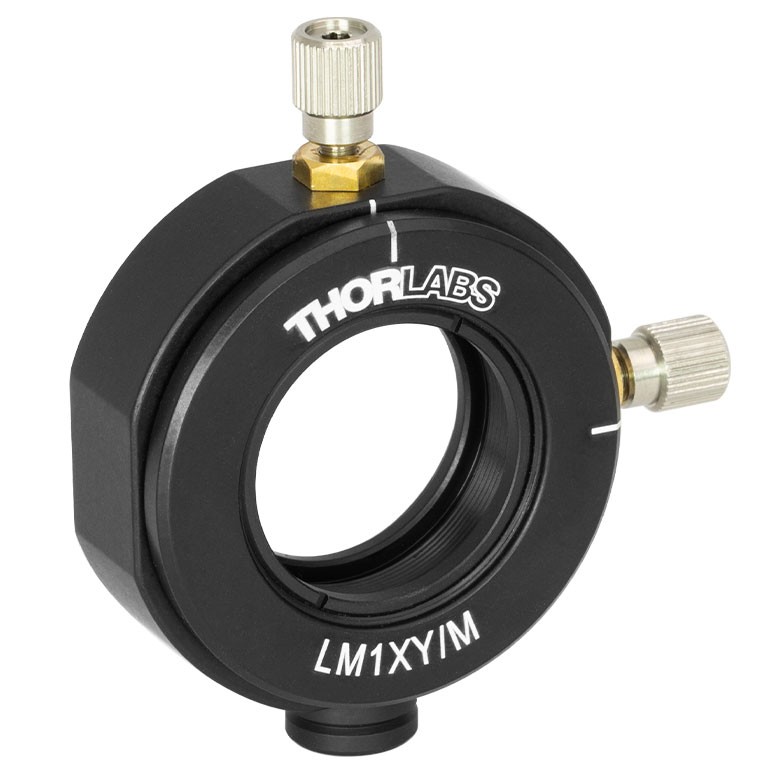

Thorlabs LM1XY/M - 用于Ø1英寸光学元件的移动透镜安装座
XY移动安装座，用于安装Ø1/2英寸、Ø1英寸、Ø2英寸或矩形光学元件
提供精密的XY行程
具有滑动板、调节螺丝、测微头或差分驱动的移动模式
多种型号兼容我们的SM螺纹透镜套筒
可通过底部的一个或多个8-32(M4)螺纹孔安装接杆

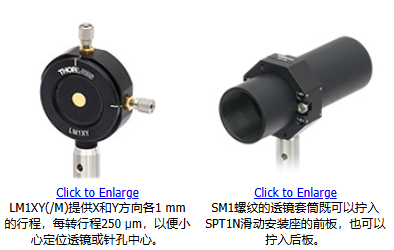

Thorlabs提供多种安装座，在定位光学组件时能够提供粗略或精密的XY平移。型号包括滑板定位器、迷你XY平移安装座、精密XY安装座、6 mm行程的XY移动安装座以及矩形光学元件移动安装座。本页出售的这些产品能够直接兼容Ø1/2英寸、Ø1英寸、Ø2英寸或矩形光学元件。除了XYF1(/M)和XYF2(/M)之外，其他产品都可以兼容已安装在SM05(0.535英寸-40)、SM1(1.035英寸-40)或SM2(2.035英寸-40)螺纹透镜套筒中的光学元件(见下表)。
| General Specifications | ||||||
|---|---|---|---|---|---|---|
| Item # | Description | Optic Size Accomodated | SM Thread Compatibility | XY Travel | Post Mounting | Cage Compatibility |
| SPT1C(/M) | Slip Plate Positioners | Ø1" | SM1 (1.035"-40) | ±0.04" (±1 mm) | 8-32 (M4) Tap | 30 mm |
| SPT1CT(/M) | ||||||
| SPT1N(/M) | N/A | |||||
| MCXY05(/M) | Mini-Series Compatible XY Translation Mounts | Ø1/2" | SM05 (0.535"-40) | ±0.04" (±1 mm) | 4-40 (M3) Tap | 16 mm |
| LM05XY(/M) | Precision XY Translation Mounts | Ø1/2" | SM05 (0.535"-40) | ±0.04" (±1 mm) | 8-32 (M4) Tap | N/A |
| LM1XY(/M) | Ø1" | SM1 (1.035"-40) | ||||
| LM2XY(/M) | Ø2" | SM2 (2.035"-40) | ||||
| ST1XY-x(/M) | 6 mm XY Translation Mounts | Ø1" | SM1 (1.035"-40) | ±0.12" (±3.0 mm) | Three 8-32 (M4) Taps | 30 mm |
| XYF1(/M) | Translation Mount for Rectangular Optics | 1/2" (12.7 mm) to 3" (76.2 mm) Wide Rectangular Optics | N/A | X: 50 mm (1.97") Y: 30 mm (1.18") | Five 8-32 (M4) Taps | N/A |
| XYF2(/M) | Translation Mount for Rectangular Optics | 2.95" (75.0 mm) to 3.03" (77.0 mm) Wide, 0.98" (25.0 mm) to 3.03" (77.0 mm) Tall, 0.04" (1.0 mm) to 0.07" (1.7 mm) Thick Rectangular Optics | ||||
