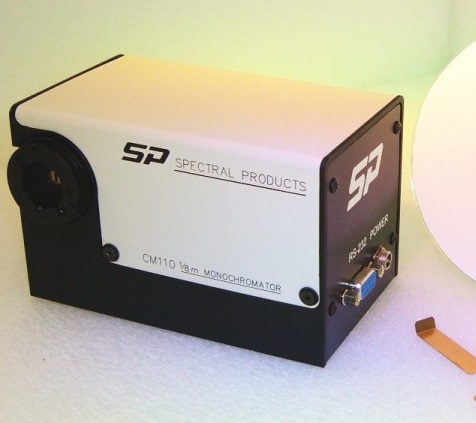

CM110是一款多功能、高性价比的紧凑型单色仪，产品尺寸：约13x8x8cm；采用高质量双光栅塔台、单独组件设计，通过RS232连接电脑，是一种完全计算机控制，双向光栅驱动的单色仪，其中消隙传动装置确保设备在一些严格的应用中保持稳定高效运行。CM110适用于荧光、辐射、过程控制、颜色、可调滤波器、拉曼光谱等测量领域。CM110理想工作范围在UV~IR。所有设备在出厂前均严格的定标，操作软件操作十分简单方便。

产品特点：

紧凑的设计4.75"x2.75"x2.75"
RS232接口连接电脑
允许大光谱范围的双光栅设计
厂家预装成一套完整的单色仪和光谱仪
扫描范围在纳米、埃、微米、波数或者eV
改变狭缝方便
单色仪厂家预装调整好光栅角度和矫正

应用:

荧光
辐射测量
精密控制
色度分析
可调滤波
拉曼光谱
光谱分析

产品参数：

Feature	Value
Design:	Czerny-Turner, dual-grating turrets
Focal Length:	110mm
f/#:	3.9
Beam Path:	Straight through standard, right angle provided on request.
Wavelength Drive:	Worm and wheel with microprocessor control and anti-backlash gearing. Bi-directional. Usable in positive or negative grating orders.
Wavelength Precision:	0.2nm
Wavelength Accuracy:	± 0.6nm
Slewing Speed:	>100nm/second
Stray Light:	<10^-5
Slits:	Standard Set includes; 0.125mm, 0.15mm, 0.30mm, 0.6mm, 1.2mm and 2.4mm x 4.0mm. For other sizes, consult SP.
Max Resolution:	<1nm w/1200G/mm grating and standard slits
Gratings:	One to two gratings. (30 x 30mm) must be purchased. See CM grating options page
Software:	Demonstration control program and LabView driver included.
Power:	UL listed 110/220V power pack
Interface:	RS232 standard
Warranty:	One year
Options:	Hand-held control module with function keys and display for local control IEEE-488 interface Interface cables Gold optics See options and accessories

光栅选型：

Part #	Ruling	Peak	Range (nm)	Peak %T
Part #	(G/mm)	(nm)	Range (nm)	Peak %T
AG2400-00240-303	2400	240	180 - 680	70
AG1200-00500-303	1200	500	330 - 1000	83
AG1200-00600-303	1200	600	400 - 1500	80
AG1200-00750-303	1200	750	480 - 1500	85
AG0600-00500-303	600	500	350 - 1300	80
AG0600-01200-303	600	1200	800 - 3000	85
AG0300-00500-303	300	500	310 - 1100	80
AG0300-02500-303	300	2500	1500 - 6000	88
AG0150-00500-303	150	500	320 - 980	72
AG0150-04000-303	150	4000	2500 - 9000	93
AG0075-08000-303	75	8000	5000 - 15000	82
AG0075-01700-303	75	1700	1100 - 2800	85
AG0045-01750-303	45	1750	1100 - 3000	78
