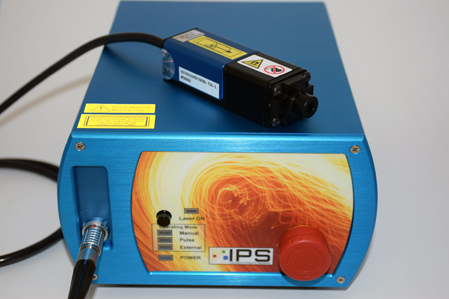

405nm-808nm半导体激光器单模窄线宽激光器IPS
IPS专业研发的波长稳定型激光器可以被理想的应用于：
—— 拉曼光谱
—— 光纤激光器种子源&泵浦源
—— 医学传感&成像
—— 国防基础应用
产品按波长分类：
405nm 单模激光器
Product ID | 光谱线宽 | 输出功率 (mW) | 输出配置/连接器 | 集成带通滤波器 | 集成光电二极管 | 产品资料 |
I0405SB0045B | <100 kHz | 45 | Open Beam | Yes | Yes | |
I0405SD0030B-IS | <100MHz, <0.2 pm, <0.005 cm-1 | 30 with integral dual-stage isolator | Open Beam | Yes - Dual Filter Pack | Linear Tracking Photodiode | |
I0405SD0045B | <100MHz, <0.2 pm, <0.005 cm-1 | 45 | Open Beam | Yes - Dual Filter Pack | Linear Tracking Photodiode | |
I0405SR0030B-IS | <100MHz, <0.2 pm, <0.005 cm-1 | 30 with integral dual-stage isolator | Open Beam | Yes | Yes | |
I0405SR0045B | 45 | |||||
I0405SH0030B-IS-TH-L | <100MHz, <0.2 pm, <0.005 cm-1 | 30 with integral dual-stage isolator | Open Beam | Yes - Dual Filter Pack | Yes | |
I0405SH0045B-TH-L | 45 |
532nm 多模激光器
| Product ID | 光谱线宽 | 输出功率 (mW) | 输出配置/连接器 | 集成带通滤波器 | 集成光电二极管 | 产品资料 | |||
| I0532SL0100MF | <0.05 nm | 100 | FC/PC | No | No | 532 nm L-Type Data Sheet | |||
| I0532SL0100MS | <0.05 nm | 100 | SMA | No | No | Panda type with FC/APC connector | no | Yes | 资料下载 |
785nm 多模激光器
| Product ID | 光谱线宽 | 输出功率 (mW) | 输出配置/连接器 | 集成带通滤波器 | 集成光电二极管 | 产品资料 |
| I0785MB0500B | <0.15 | 500mW | Open Beam | Yes | Yes | 资料下载 |
| I0785MB0350M | <0.15 | 350 | Unterminated | No | Yes | 资料下载 |
| I0785MB0350MF | 350 | FC/PC | No | Yes | -- | |
| I0785MB0350MS | 350 | SMA905 | No | Yes | -- | |
| I0785MB0350M-NL | <0.07 | 350 | Unterminated | No | Yes | -- |
| I0785MB0350MF-NL | 350 | FC/PC | No | Yes | -- | |
| I0785MB0350MS-NL | 350 | SMA905 | No | Yes | -- | |
| I0785MB0600M | <0.15 | 600 | Unterminated | No | Yes | -- |
| I0785MB0600MF | 600 | FC/PC | No | Yes | -- | |
| I0785MB0600MS | 600 | SMA905 | No | Yes | -- | |
| I0785MU0350MF | <0.15 | 350 | FC/PC | No | Yes | 资料下载 |
| I0785MU0350MS | 350 | SMA905 | No | Yes | -- | |
| I0785MU0350MF-NL | <0.07 | 350 | FC/PC | No | Yes | -- |
| I0785MU0350MS-NL | 350 | SMA905 | No | Yes | -- | |
| I0785MU0500MF | <0.15 | 500 | FC/PC | No | Yes | -- |
| I0785MU0500MS | 500 | SMA905 | No | Yes | -- | |
| I0785MM0350MF | <0.15 | 350 | FC/PC | No | Yes | 资料下载 |
| I0785MM0350MS | 350 | SMA905 | No | Yes | -- | |
| I0785MM0500MF | 500 | FC/PC | No | Yes | -- | |
| I0785MM0500MS | 500 | SMA905 | No | Yes | -- | |
| I0785IP0350B-001-TH | <0.15 | 350 | SMA905, Custom Rectangular Core (FC/PC Available upon request) | yes | no | 资料下载 |
808nm 单模激光器
Product ID | 光谱线宽 | 输出功率 (mW) | 输出配置/连接器 | 集成带通滤波器 | 集成光电二极管 | 产品资料 |
I0808S50100B | <100 kHz | 100 | Open Beam | Yes | No | |
I0808SB0100B | <100 kHz | 100 | Open Beam | Yes | Yes | |
I0808SB0050P | <100 kHz | 50 | Unterminated PM Fiber | No | Yes | |
I0808SB0050PA | 50 | PM Fiber with FC/APC | No | Yes | -- | |
I0808SB0050S | 50 | Unterminated SM Fiber | No | Yes | -- | |
I0808SB0050SA | 50 | SM Fiber with FC/APC | No | Yes | -- | |
I0808SD0100B | <100MHz, <0.2 pm, <0.005 cm-1 | 100 | Open Beam | Yes - Dual Filter Pack | Linear Tracking Photodiode | |
I0808SU0050PA | <100MHz, <0.2 pm, <0.005 cm-1 | 50 | Single Mode PM Fiber, Panda type with FC/APC connector | No | Yes | |
I0808SU0050SA | 50 | Single Mode Fiber with FC/APC connector | No | Yes | -- | |
I0808SR0100B | <100MHz, <0.2 pm, <0.005 cm-1 | 100 | Open Beam | Yes | Yes | |
I0808SL0050PA | <100MHz, <0.2 pm, <0.005 cm-1 | 50 | Single Mode PM Fiber, Panda type with FC/APC connector | No | Yes | |
I0808SL0050SA | 50 | Single Mode Fiber with FC/APC connector | No | Yes |
808nm 多模激光器
Product ID | 光谱线宽 | 输出功率 (mW) | 输出配置/连接器 | 集成带通滤波器 | 集成光电二极管 | 产品资料 |
I0808MB0500B | <0.15 | 500 | Open Beam | Yes | Yes | 14-pin Data Sheet.pdf |
I0808MB0350M | <0.15 | 350 | Unterminated | No | Yes | |
I0808MB0350MF | <0.15 | 350 | FC/PC | No | Yes | -- |
I0808MB0350MS | <0.15 | 350 | SMA905 | No | Yes | -- |
I0808MB0350M-NL | <0.07 | 350 | Unterminated | No | Yes | -- |
I0808MB0350MF-NL | <0.07 | 350 | FC/PC | No | Yes | -- |
I0808MB0350MS-NL | <0.07 | 350 | SMA905 | No | Yes | -- |
I0808MB0600M | <0.15 | 600 | Unterminated | No | Yes | -- |
I0808MB0600MF | <0.15 | 600 | FC/PC | No | Yes | -- |
I0808MB0600MS | <0.15 | 350 | SMA905 | No | Yes | -- |
0808MU0350MF | <0.15 | 350 | FC/PC | No | Yes | |
I0808MU0350MS | <0.15 | 350 | SMA905 | No | Yes | -- |
I0808MU0350MF-NL | <0.07 | 350 | FC/PC | No | Yes | -- |
I0808MU0350MS-NL | <0.07 | 350 | SMA905 | No | Yes | -- |
I0808MU0500MF | <0.15 | 500 | FC/PC | No | Yes | -- |
I0808MU0500MS | <0.15 | 500 | SMA905 | No | Yes | -- |
I0808MM0350MF | <0.15 | 350 | FC/PC | No | Yes | |
I0808MM0350MS | <0.15 | 350 | SMA905 | No | Yes | -- |
I0808MM0500MF | <0.15 | 500 | FC/PC | No | Yes | -- |
I0808MM0500MS | <0.15 | 500 | SMA905 | No | Yes | -- |
