The M-IMS300V Metric Vertical Linear Stages offers 300 mm vertical travel in a cost effective package. They are an ideal solution for both precision industrial and laboratory applications requiring precise vertical motion with 0.3 μm MIM for loads up to 400 N. Features include: four-way equal load ball bearings to provide superior cantilevered loading characteristics, caged recirculating balls to ensure maintenance-free operation without cage migration, self-locking lead screw to ensure superior in-position stability with no change of position at power off, and a direct-read to encoder provide superior accuracy and minimum hysteresis. Ideal for a wide range of precision industrial and research applications.

• 行程范围

  300 mm

• 最小位移增量

  0.30 µm

• 最大速度

  20 mm/s

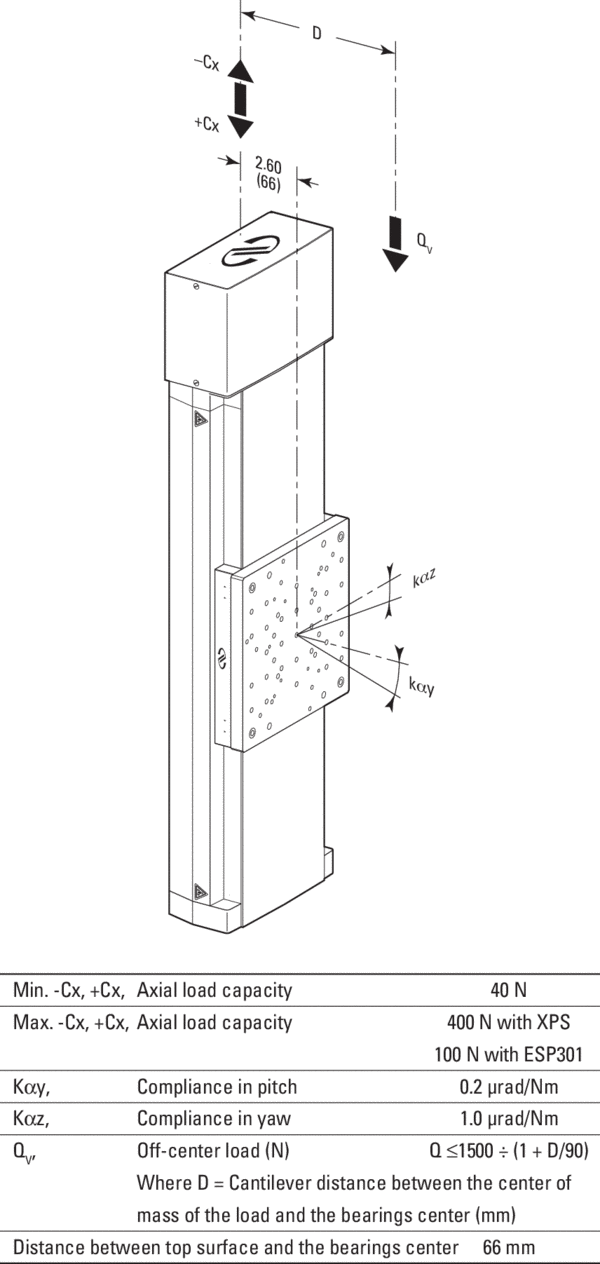

• 中心负载

  400 N

• Accuracy, Typical

  ±3.5 µm

• Accuracy, Guaranteed

  ±5.0 µm

• 双向重复精度，典型值

  ±0.20 µm

• 双向重复精度，保证值

  ±0.50 µm

• 单向重复精度，典型值

  ±0.12 µm

• 单向重复精度，保证值

  ±0.25 µm

• 驱动螺距

  3 mm

• 减速轮

  1:3.75 belt reduction between motor and screw

• Encoder Resolution

  0.1 µm

• 限位开关

  Optical

• 原点

  Optical, close to lower limit

• 原点重复精度

  ±0.1 µm

• 电缆长度

  5 m

• 接头

  DB25 Male

• 俯仰，典型值

  ±35 µrad

• Pitch, Guaranteed

  ±125 µrad

• 俯仰顺应性

  1 µrad/Nm

• 偏转，典型值

  ±20 µrad

• Yaw, Guaranteed

  ±75 µrad

• 偏摆顺应性

  1 µrad/Nm

• 螺纹类型

  M6

• 重量

  17 kg

• MTBF

  20,000 h (300 N load, 10% duty cycle)

• RoHS

  Compliant

M-IMS300V米制垂直线性阶段提供了300毫米垂直旅行在一个成本效益包。他们是一个理想的解决方案精密工业和实验室应用要求精确垂直运动负载有0.3μm MIM 400 n特性包括:四路等负荷滚珠轴承提供了优越的悬臂式加载特性，笼式循环滚珠确保免维护，无需笼移，自锁丝杆确保优越的位置稳定性，在断电时不改变位置，直接读编码器提供了优越的精度和最小的滞后。适用于各种精密工业和研究应用。
