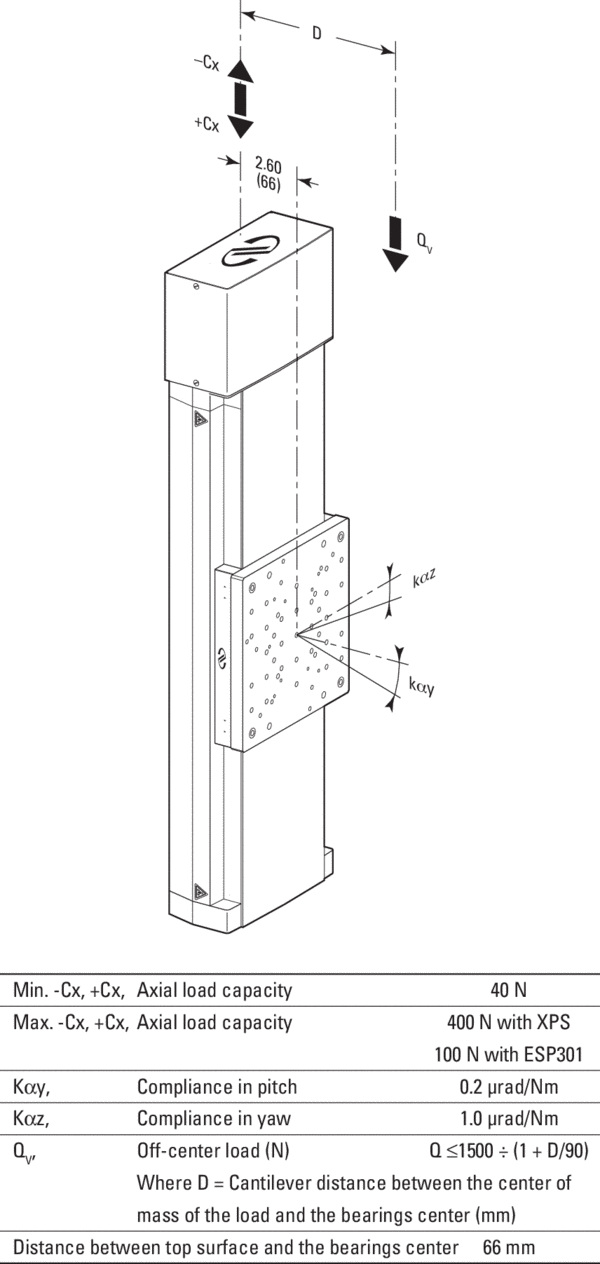

The M-IMS100V Metric Vertical Linear Stages offers 100 mm vertical travel in a cost effective package. They are an ideal solution for both precision industrial and laboratory applications requiring precise vertical motion with 0.3 μm MIM for loads up to 400 N. Features include: four-way equal load ball bearings to provide superior cantilevered loading characteristics, caged recirculating balls to ensure maintenance-free operation without cage migration, self-locking lead screw to ensure superior in-position stability with no change of position at power off, and a direct-read to encoder provide superior accuracy and minimum hysteresis. Ideal for a wide range of precision industrial and research applications.


M-IMS100V米制垂直直线级提供了100毫米垂直旅行的成本效益包。他们是一个理想的解决方案精密工业和实验室应用要求精确垂直运动负载有0.3μm MIM 400 n特性包括:四路等负荷滚珠轴承提供优越的悬臂加载特性,笼状再循环滚珠保证免维护运行,无需笼笼移动,自锁丝杠保证优越的位置稳定性,断电时位置不变,直读编码器提供优越的精度和最小滞回。适用于各种精密工业和研究应用。
