The URS50BPP Rotation Stage provides precision 360° continuous motion in a low profile package. It meets the requirements of numerous research and industrial applications. The high-torque stepper motor provides the highest dynamic speed range and allows for rotating speeds up to 40°/s. All URS rotation stages feature a proprietary 4-point contact ball bearing. The unique, 2-piece design of the URS provides a low-profile compact stage with exceptional stiffness, high reliability and outstanding wobble and eccentricity. The tilted worm screw arrangement allows for 4 symmetric mounting holes as compared to other designs that only feature 2 or 3 mounting holes. This enables the URS stages to provide better support of higher or off-centered loads. Additionally, the flexible preloading system for the worm gear was improved to guarantee a backlash-free operation with an MTBF of 20,000 hours.

• 角范围

  360°

• 最大速度

  40°/s

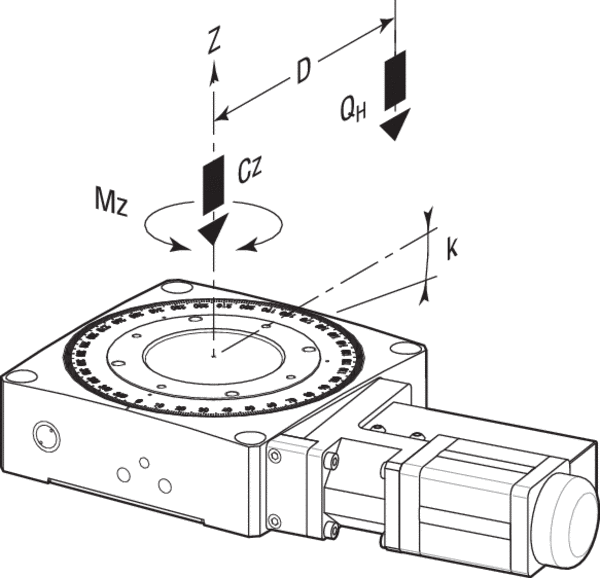

• 最大扭矩

  0.25 N·m

• 中心负载

  100 N

• 螺纹类型

  M3

• 最小位移增量

  0.50 mdeg

• 单向重复精度，典型值

  ±0.60 mdeg

• 单向重复精度，保证值

  ±1.0 mdeg

• 双向重复精度，典型值

  ±1.0 mdeg

• 双向重复精度，保证值

  ±3.0 mdeg

• Accuracy, Typical

  ±12 mdeg

• Accuracy, Guaranteed

  ±25 mdeg

• 摆动（典型值）

  ±12 µrad

• 摆动，保证值

  ±25 µrad

• Eccentricity, Typical

  ±3.0 µm

• Transversal Compliance

  100 µrad/N·m

• 原点

  Optical, centered

• 原点重复精度

  ±25 mdeg

• 电缆长度

  3 m

• 孔径

  25.7 mm

• 接头类型

  DB15 Male

• 重量

  0.7 kg

• MTBF

  20,000 h (25% load, 10% duty cycle)

• RoHS

  Compliant

URS50BPP旋转阶段提供精密360°连续动作在低调包中。它满足了众多研究和工业应用的要求。高扭矩步进电机提供了最高的动态速度范围和允许旋转速度高达40°/ s。所有URS旋转阶段均采用专有的4点接触滚珠轴承。独特的，2件式的URS设计提供了一个低轮廓紧凑的阶段，具有卓越的刚度，高可靠性和突出的摆动和偏心。与其他只有2或3个安装孔的设计相比，倾斜蜗杆结构允许4个对称安装孔。这使URS阶段更好地支持较高或偏心载荷。此外，对蜗轮蜗杆柔性预压系统进行了改进，保证了在20,000小时的MTBF下无返料运行。
