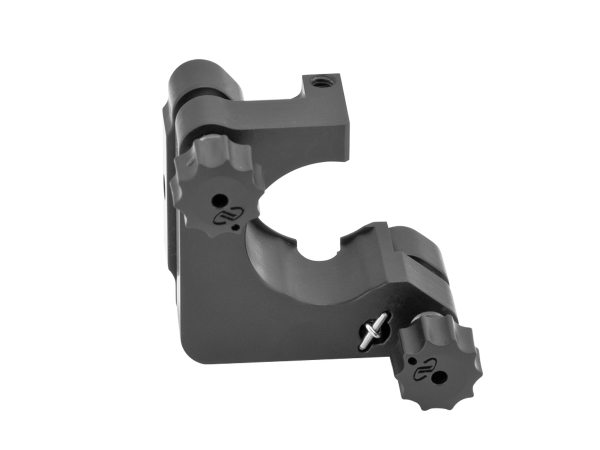

The M1-CP CenterPoint™ Mirror Mount holds the mirror directly above and inline with the mounting hole while maintaining a standard 1 in. optical axis height. Having the mirror’s reflective surface sit on the rotation axis of the mounting post enables quick research setups without the need for additional adaptor plates. If the optical path needs to change, a simple rotation can steer the reflected beam well over 270°. Locating the mirror at the intersection of the optical and rotation axes provides many advantages to the user and includes saving valuable setup time and costs. For OEM engineers, the design process goes much faster simply because the mounting hole is always directly below the optical axis. The M1-CP is a compact, clear quadrant mirror mount which is English or Metric mounting compatible, easy to integrate into a custom design, and can be modified with hex screws for OEM applications. In high-density layouts, the M1-CPs can be conveniently positioned on adjacent table mounting holes which are only 1 in. apart. Assemblies using this innovative mirror mount will require fewer standard parts, thereby cutting costs for a variety of optical tools, such as periscopes, delay lines, and polarizer inverters.


的M1-CP中心™镜山拥有镜子上方和内联的安装孔,同时保持一个标准1。光轴的高度。将镜子的反射面放置在安装柱的旋转轴上，可以快速进行研究设置，而不需要额外的适配器板。如果需要改变光学路径,一个简单的旋转可以引导反射的光束超过270°。将镜子定位在光学轴和旋转轴的交汇处为用户提供了许多优势，并节省了宝贵的安装时间和成本。对于OEM工程师来说，设计过程要快得多，因为安装孔总是直接在光轴下方。M1-CP是一种紧凑、清晰的四分之一镜安装，它与英制或公制安装兼容，易于集成到定制设计中，并且可以用六角螺丝为OEM应用程序进行修改。在高密度布局中，M1-CPs可以方便地定位在相邻的只有1英寸的安装孔上。分开。使用这种创新的反射镜安装组件将需要更少的标准部件，从而降低了各种光学工具的成本，如潜望镜、延迟线和偏振变换器。
