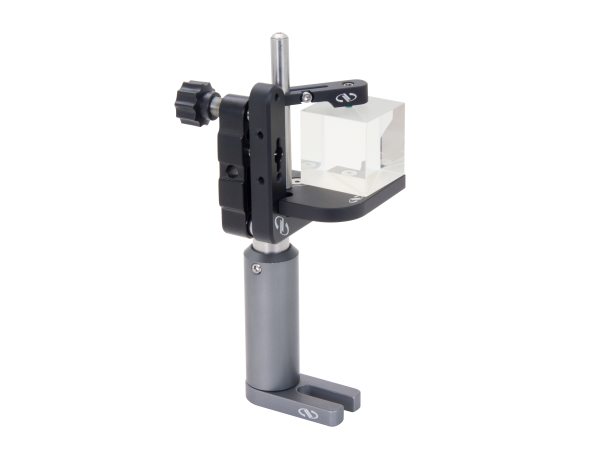

The M1-PT Prism Mount is ideal for mounting prisms and cube beam splitters. The M1-PT is has large platform for holding prisms, or cube beamsplitters. The M1-PT is configurable for right- or left-handed operation. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

• 驱动方式

  Knob, non-locking

• 调节

  θx, θy

• 灵敏度

  3.8 arc sec

• 特殊功能

  V-Groove Mount

• 角范围

  ±4°

• 调节螺纹

  100 TPI

• 材料

  Coated Aluminum

• 机制

  Kinematic

• 螺纹类型

  8-32 (M4) CLR

M1-PT棱镜安装是安装棱镜和立方体分束器的理想选择。M1-PT具有容纳棱镜或立方体分光镜的大平台。M1-PT可配置为右或左操作。两个精密的100-TPI调整螺丝是标准提供异常平滑，高分辨率调整。
