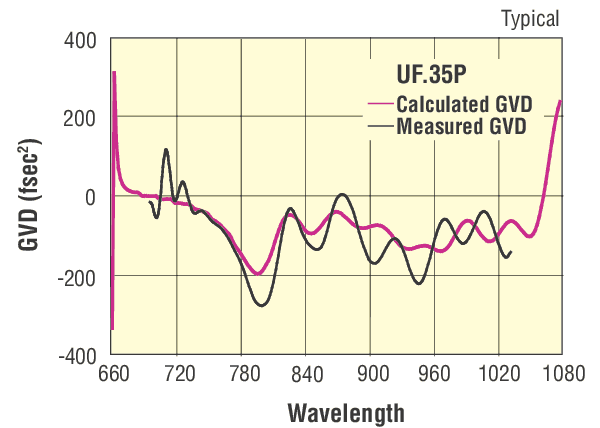

The 20Q20UF.35P Super-Broadband Turning Mirrors is ideal for use with ultrashort pulses lasers as a high reflectance mirror at 45° angle of incidence for a very broadband wavelength range spanning almost 400 nm. Designed to reflect over 99.6% from 680 to 1060 nm, this mirror can be used with Spectra-Physics Tsunami®, Spitfire® Pro, or Mai Tai® lasers. Careful thin film design and advanced coating processes result in a mirror with maximum reflectivity, maximum bandwidth and minimum effect on pulse dispersion. Exhibiting ultralow phase distortion and a slightly negative GVD across the tuning range, this mirror is optimized for P polarization.

• 波长区域

  NIR

• 波长范围

  680-1060 nm

• 镜片形状

  Round

• 直径

  50.8 mm

• 材料

  Fused Silica

• 镀膜类型

  Broadband special coating for ultrafast pulses

• 镀膜代码

  UF.35P

• 表面质量

  20-10 scratch-dig

• 表面平面度

  λ/4 at 632.8 nm

• 楔形

  < 30 arc min

• 入射角

  45°

• S2 表面

  Commercial Polished

• 反射率

  Rp>99.6% @ 680-1060 nm

• 厚度

  9.4 mm

• 厚度公差

  ±0.38 mm

• 直径公差

  +0/-0.13 mm

• 倒角

  0.25-0.76 mm face width

• 倒角公差

  45 ±15°

• 清洁

  See How to Clean Optics

20 q20uf。35 p Super-Broadband把镜子是理想的使用超短脉冲激光的高反射镜在45°角发病率很宽带波长范围跨越近400海里。旨在反映超过99.6%从680年到1060纳米,这面镜子可以用于Spectra-Physics海啸®,喷火式战斗机®Pro,或美态®激光。精心的薄膜设计和先进的镀膜工艺使镜面具有最大的反射率、最大的带宽和最小的脉冲色散影响。显示超低相位失真和略有负的GVD跨调谐范围，这面镜子是优化的P偏振。
