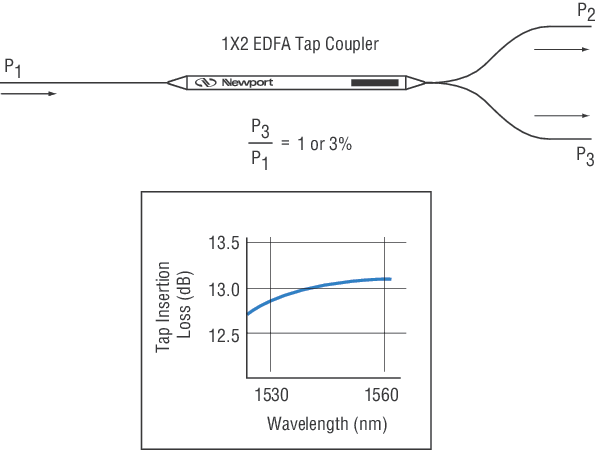

The F-CPL-T15010-FCUPC Single-mode EDFA Tap Coupler with 1% Coupling is designed for use in Erbium-Doped Fiber Amplifiers (EDFAs), and offers superb insertion loss and wavelength dependence. It is ideal for use as input and output power monitors in applications in power and pre-amplifiers, and repeaters where signal insertion loss minimization and tap ratio wavelength independence are vital. FC/UPC connectors.

• 类型

  EDFA Tap Coupler

• 光纤类型

  Singlemode

• 耦合比率

  1%/99%

• 光纤接头

  FC/UPC

• 工作波长

  1530-1560 nm

• 典型插入损耗

  0.3 dB

• 附加损耗（典型值）

  0.2 dB

• 附加损耗（最大值）

  23 dB

• 工作温度

  -40 to 85°C

• 选件代码

  76

• 包装类型

  A

• 工作湿度

  90–95%

f - cp - t15010 - fcupc单模EDFA接头耦合器为掺铒光纤放大器(EDFAs)设计，具有极佳的插入损耗和波长依赖性。它是理想的使用作为输入和输出功率监视器的应用在电源和前置放大器，和中继器，在信号插入损耗最小化和分接比波长独立性是至关重要的。FC / UPC连接器。
