Innolume offers a broad portfolio of fiber optical isolators in 780-1310nm wavelength range. Isolators could be supplied with any single-mode fiber coupled device (laser, SLD, SOA, gain-module) purchased in our Company. In this case device characterizes with isolator, measurement report indicates performance at OI output. Devices could be spliced to prevent additional losses and feedback at FC/APC connectors.
Fiber optical isolators in 1060-1310nm wavelength range supplied in small (55x5.5x5.5mm) and light package with maximal input power 300-500mW. In shorter range (780-1055nm) OI supplied in quite big (up to 118x37x35) and heavy metal package due to using of another materials absorbing less optical power. Same materials are used in high-power OI to achive input power up to 1W.

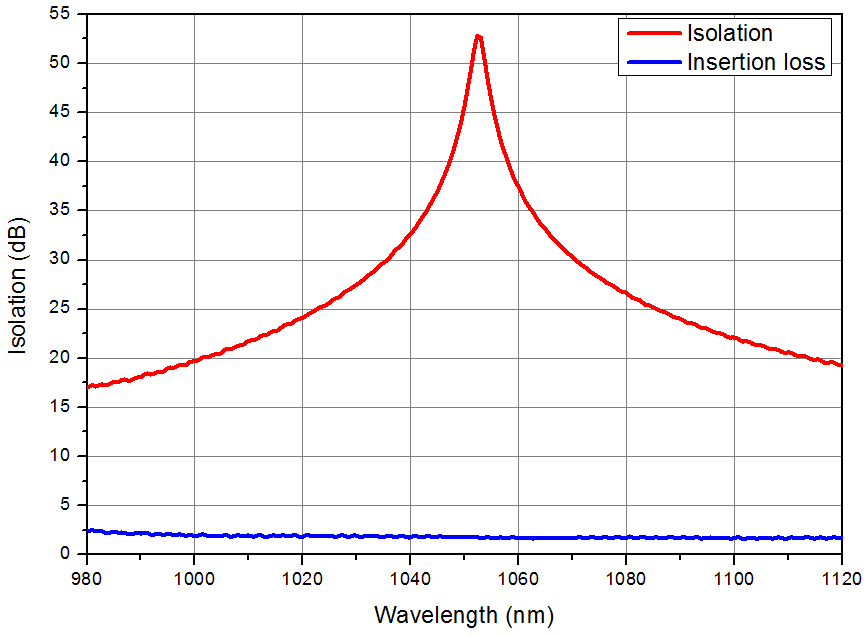

PMOI-1050-SS isolation and loss spectra
