Ondax’s LM Series Compact  Laser Modules incorporate the Ondax SureLock® VHG-stabilized laser diode to deliver steady, single frequency or spectrum narrowed performance in an ultra-compact footprint.

Offering both computer and integrated user controls, the LM Series includes precision temperature and current controls to deliver meter level coherence length (for single frequency versions), < 0.06nm linewidth (for spectrum narrowed versions) and 1% power stability with less than 1 minute warm-up. This tightly integrated package makes it the ideal choice for both OEM instrumentation and laboratory applications.
The LM Module is available in wavelengths from 404nm to 830nm.

Features
Applications

Specification Summary

Table 1: SureLock™ Specifications
Parameter
Single Frequency WavelengthsUnit
Center Wavelength1Lp405/4066383658685780.25785808830nm
Center Wavelength Tolerancesnm+/-1+/-1+/-1+/-1+/-0.2+/-1+/-1+/-1nm
Output PowerPo12/25/403030407575/100110150mW
Beam Size
0.8 X 0.40.6 X 0.80.7 X 1.10.9 X 1.40.8 X 1.50.9 X 1.70.9 X 1.70.9 X 1.4mm
Linewidth, MaxΔλ160230030050505050250MHz

1Available in increments of 2 nm


2405nm laser only


3638nm also available with circularized beam of 1.5mm


Please specify wavelength at time of ordering. Wavelengths specified in air.


Operating Specifications


Table 2: SureLock™ Operating Specifications
OpticalMinTypMaxUnit
Spatial ModeSingle Mode
Polarization100:1
Noise (RMS, 0-20 MHz)
0.250.5%
Beam Divergence
110mrad
Pointing Stability

+/-25µrad
Power Stability (1hr)
0.100.5%
Table 3: SureLock™ Operating Specifications
ElectricalMinTypMaxUnit
Operating Current

1.5A
Operating Voltage
3.3
VDC
Modulation Input(TTL)0
5VDC
Modulation Speed

3kHz
Table 4: SureLock™ Operating Specifications
EnvironmentalMinTypMaxUnit
Storage Temperature4-10
60°C
Operating Temperature4102540°C
Operation HumidityNon-Condensing
Dimensions40 x 42.5 x 100mm

4Non-Condensing

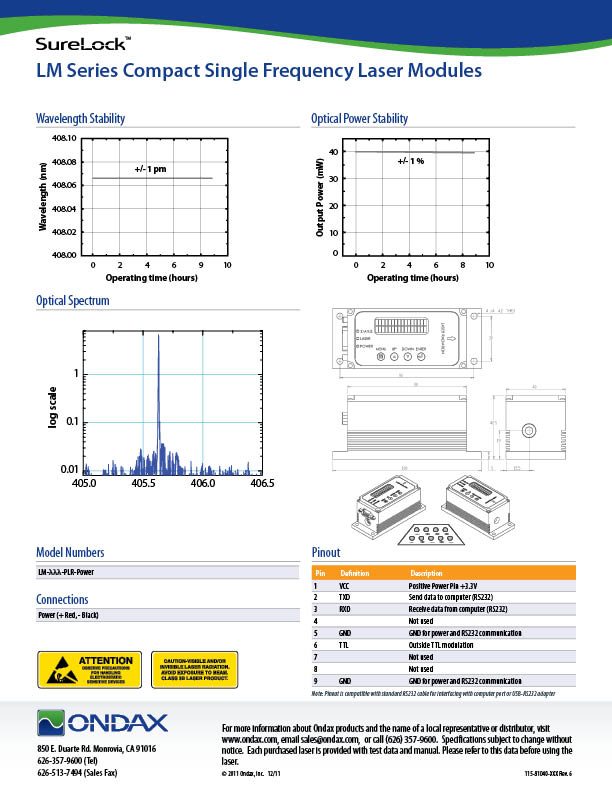

Technical Data and Drawings


Downloads
