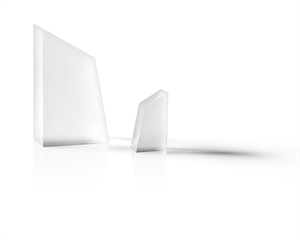

PLBC:佩林布洛卡棱镜
贝林布洛卡棱镜用于波长分离或者光偏转90°，材料为紫外级熔融石英、透明石英1或者结晶石英。通过相对入射光的90°偏转分离出一束单波长光，其他波长多少有点分离。
参数:
光学材料: | Suprasil 1, UV-grade fused silica or Crystal Quartz |
表面质量: | 10-5 scratch and dig on three polished surfaces |
产品代码: | PLBC |
通光孔径: | ≥85% of central dimension |
倒角: | 0.35 mm at 45° (typical) |
损伤阈值: | 15 J/cm2, 20 nsec, 20 Hz @ 1064 nm |
尺寸公差: | +0/−0.25 mm |
面形精度: | λ/10 p-v at 633 nm over clear aperture |
角度偏差: | α: ±30 arc min；β: ±2° |
产品序号 | λ (nm) | 形状 | 尺寸 |
PLBC-10.0-77.2-CQ See Specs & Drawings | Uncoated | Pellin Broca Prism | 23.5x40.0x12.7 |
PLBC-10.0-79.5-UV See Specs & Drawings | Uncoated | Pellin Broca Prism | 23.5x40.0x12.7 |
PLBC-5.0-79.5-SS See Specs & Drawings | Uncoated | Pellin Broca Prism | 11.0x20.0x6.4 |
