Laser Electronics成立于2003年，是激光二极管控制器领域的先驱，作为激光二极管控制器、激光驱动器、半导体激光器和激光制冷器的主要制造商之一，激光电子及其产品已成为这一创新技术的代名词。在世界范围内，我们的产品在材料加工、医用激光、激光二极管制造和研发部门中使用，在广泛的应用中被证明是高效可靠的。采用颗粒元件，温度传感器，热传导板和30W激光二极管，适用于各种小型激光器，恒温控制，广泛应用于医疗，科研，工业等，为客户的激光器保驾护航。

优势

应用

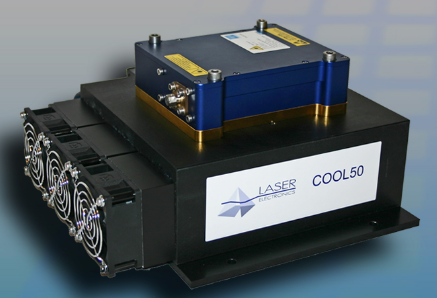

Thermal Characteristics	COOL30	COOL50	COOL100
Heat Load (max) with a temperature difference between laser diode module and ambient air of
0 K	80 W	120 W	250 W
5 K	60 W	90 W	180 W
10 K	40 W	60 W	120 W
Tmax (hot side)	50°C	50°C	50°C
Temperature Difference	40 K	40 K	40 K
Thermal Resistance	0.15 K/W	0.1 K/W	0.07 K/W
Electrical Characteristics
Temperature Sensor	NTC 10 kOhm	NTC 10 kOhm	NTC 10 kOhm
Peltier Current	0…±10 A	0…±10 A	0…±13 A
Peltier Voltage	0…±15 V	0…±25 V	0…±48 V
Fan Current	500 mA	800 mA	1,0 mA
Fan Voltage	12 V	12 V	12 V
General Characteristics
Ambient Temperature	0…30°C	0…30°C	0…30°C
Relative Humidity	30…70 %	30…70 %	30…70 %
Weight	2 kg	3 kg	5 kg
Dimension (w x d x h) in mm3	230 x 148 x 95	230 x 210 x 95	270 x 280 x 130
	DATASHEET	DATASHEET	DATASHEET

COOL X0-G

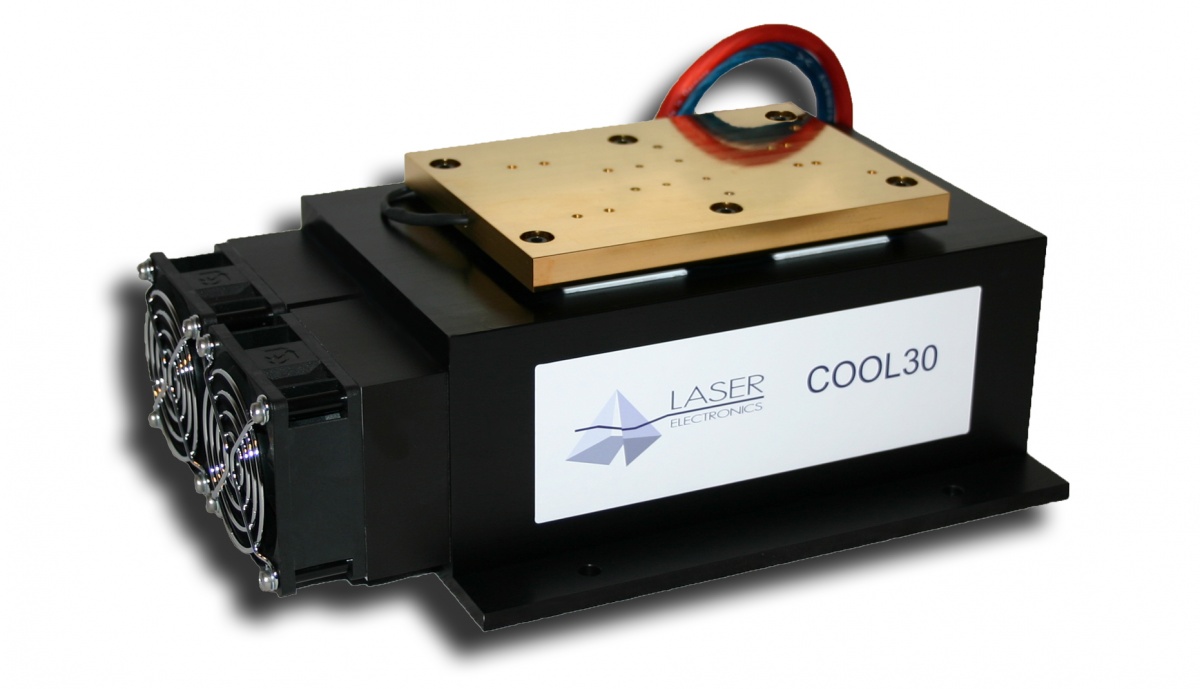

Cooler with Peltier elements and gilded copper heat spread plate.

Suitable for laser diodes with small heat areas.

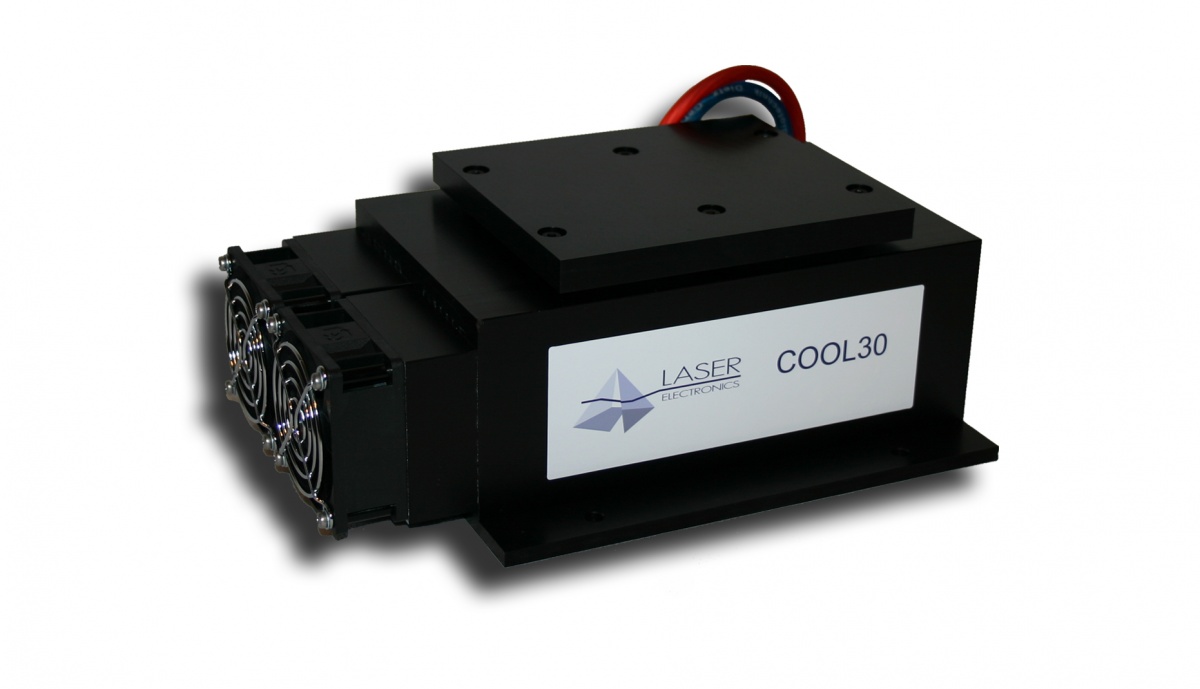

Cooler with Peltier elements and aluminium heat spread plate.

Suitable for laser diodes with medium-sized heat areas.

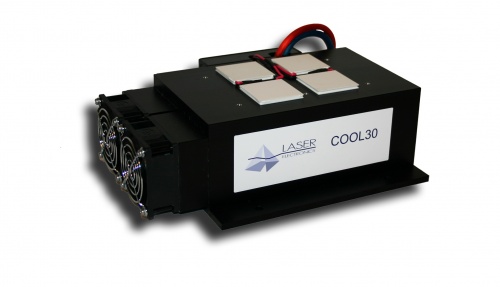

Cooler with Peltier elements and without heat spread plate.

Suitable for laser diodes with large heat areas.

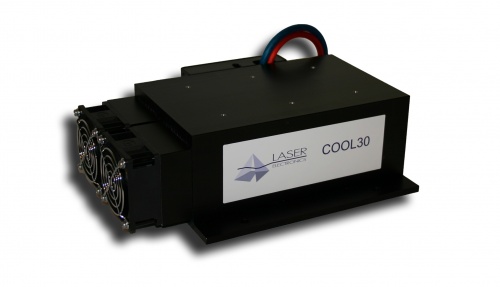

Cooler without Peltier elements and without heat spread plate.

Suitable for laser diodes with integrated Peltier elements.
