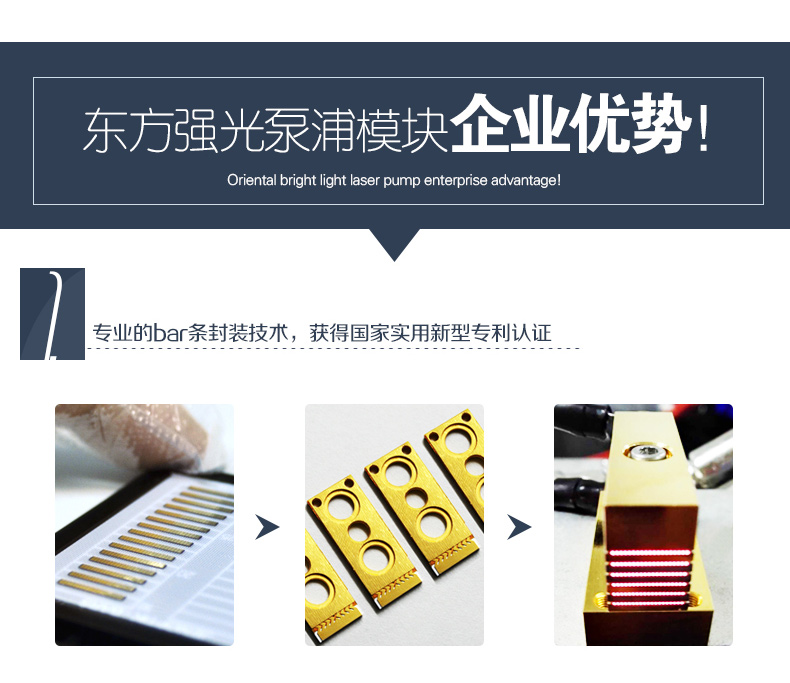

微通道制冷片制备技术使得在1.5mm厚的紫铜热沉中存在上下分层的冷却水道，冷却水流经其间瞬间带走激光器的热量，大大增长了激光器的寿命。在微通道水冷散热片上封装半导体激光芯片，使得单体激光器的功率输出可以达到每片100W，大幅度提高了叠阵激光器的光功率密度。
东方强光专注于半导体激光器封装十余年，微通道叠层激光器产品线齐全。输出功率从100W-2000W可选，波长种类齐全，除常规810nm，9XXnm，还特别推出755nm，1064nm激光器。我们强大的技术团队可以根据客户需求定制各种安装尺寸的叠阵，配套供应于各类工业、科研、医疗等应用中。经过十余年经验的积累，我们成功的为全国及世界多家厂商配套供应质量可靠、性能稳定、高性价比的半导体激光器。
规格参数：
Product Model Number: | VSCW-MI-N-60 | VSCW-MI-N-100 | VSQCW-MI-N-300 | Uint |
Operation Mode | CW/QCW | CW/QCW | QCW | / |
Optical Output Power Per Bar | 60 | 100 | 300 | W |
Wavelength | 755, 808, 915, 940, 976,1060 | nm | ||
Number of bars | N=1-20 | N=1-20 | N=1-20 | / |
Bar-to-Bar spacing | 1.8 | 1.8 | 1.8 | mm |
fill facter | 50 | 50 | 75 | % |
Typical Operation current | 65 | 95 | 300 | A |
Maximum Operating current | 70 | 100 | 300 | A |
Typical Threshold current | 12 | 15 | 25 | A |
Maximum Operating Voltage | <1.8*N | <1.8*N | <1.8*N | V |
Fast Axis Divergence (Full Power) | 50 | 50 | 50 | ° |
Operation Condition | ||||
Cooling: | ||||
Flow rate | 0.3L/min+-10% per bar | |||
WaterTempreture | 15-30 | °C | ||
Water Quality | Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm | / | ||
cooling system | Do not use any material that combination with copper would form galvantic elements | / | ||
