PLS-100和PEM-340（偏振消光比计）组合提供最佳的面向偏振相关光器件产品的研发及产品线测试的解决方案，最大偏振消光比测试范围大于40dB。
Parameter | Unit | Specification | Notes |
| Wavelength Range | nm | 1310±20 or 1550±20 | |
| Polarization Extinction Ratio (PER) | dB | 40 | 45dB typically |

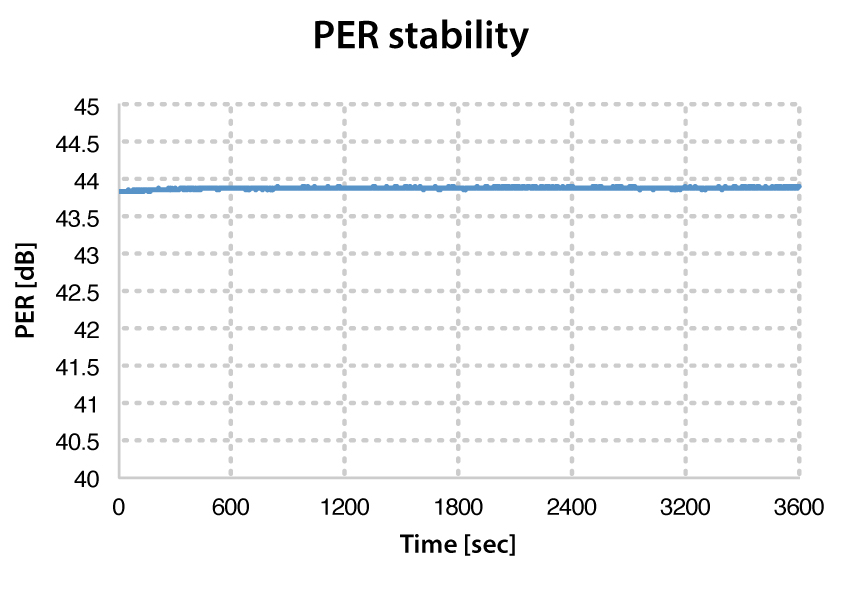

| PER Stability @1hour *1 | dB | ±0.5 | ±0.1 typically |
| Output Power | dBm | 0 | +3dBm typically |

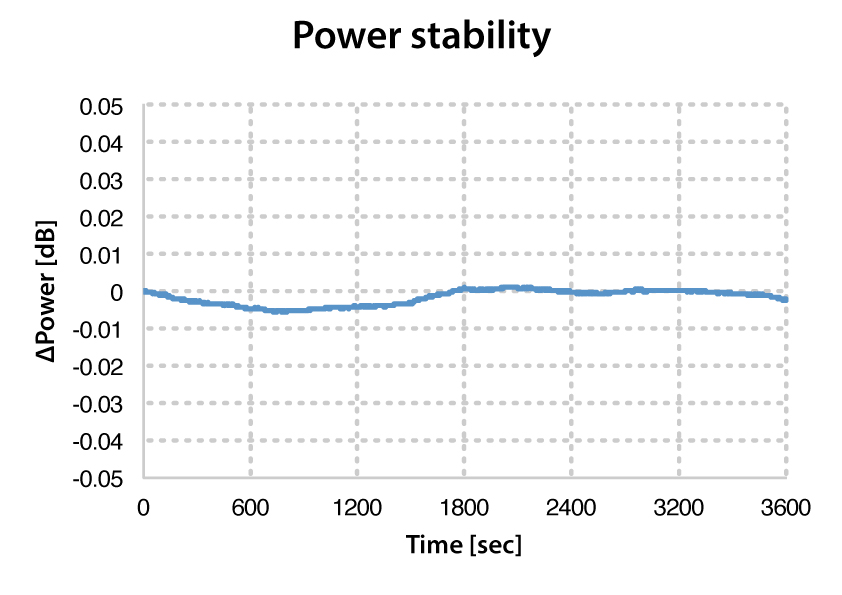

| Power Stability @1hour *1 | dB | <±0.1 | ±0.05 typically |
| Power Variation by changing angle | dB | ±0.2 | |
| Linewidth (FWHM) *2 | nm | >20 | |
| Optical Connector | – | FC or SC | |
| Connector Polish | – | SPC | |
| Polarized Axis Adjustment | deg | 2 | Fine adjustment |
deg | 180 | Coarse adjustment | |
| Operating Temperature | ℃ | 15 to 35 | |
| Size (W) x (D) x (H) | mm | 210x350x135 | except for the protruding portion |
| Weight | kg | 3.5 | |
| Supply Voltage | V | AC100-240 ±10% | |
| Frequency | Hz | 50/60 |
*All measurements are taken after 60 min warm up and at stable room temperature.
*1: For period of 1 hour. Within ± 0.5 ºC.
*2: Measured at Full Width Half Maximum
|
