Santec's spatial light modulator (SLM) is based on reflective liquid crystal on silicon (LCOS) micro-display technology. The Santec SLM-300 high-power LCOS based spatial light modulator holds the world record for high-power durability up to CW 200 Watts. The SLM-300 has 100 times higher power durability when compared with Santec's conventional SLM product, the SLM-200.
High Power-durable LCOS based SLM
High Phase Resolution 10-bit (1024) Gray Level
Ultra Low Phase Noise ~0.002πrad
Laser processing
3D printing
IC trimming
Parameter | MIN | MAX | Unit | Notes |

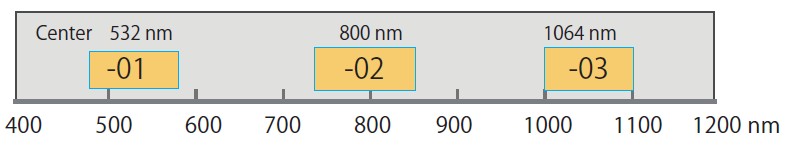

| Operating wavelength range | 532, 800, 1064 | nm | ||
| Panel size | (H)15.36 x (V)9.60 | mm | Active area | |
| Pixel resolution | (H)1920 x (V)1200 | pixel | ||
| Pixel size / pitch | 7.8 / 8.0 | μm | ||
| Panel reflectivity | Typ. >80 | % | Depending on specied wavelength range | |
| Aperture ratio | 95 | % | ||
| Gray level | 10 (1024) | bit | ||
| Phase depth | 2π | – | rad. | |
| Phase stability | Typ. 0.002 | πrad. | ||
| Response time | Typ. 200 | ms | ||
| Signal format | DVI* / USB3.0 | – | *10-bit using RGB 8-bit, 3 colors | |
| Operating temperature range | 15 | 35 | degC | |
| Storage temperature | 0 | 40 | degC | |

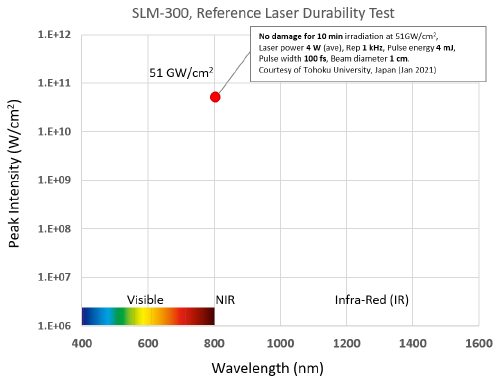

| Optical power handling | – | 200 1) | W/cm2 | CW |
| Dimensions | 122 x 122 x 38.3 | mm | ||
| Control software | GUI software for Windows | – | ||
| Water flow | 1 ~ 2 | L/min | 15 ~ 25 degC | |
| Water inlet and outlet | Water hose | – | Dia. inner 10mm, outer 12mm | |
