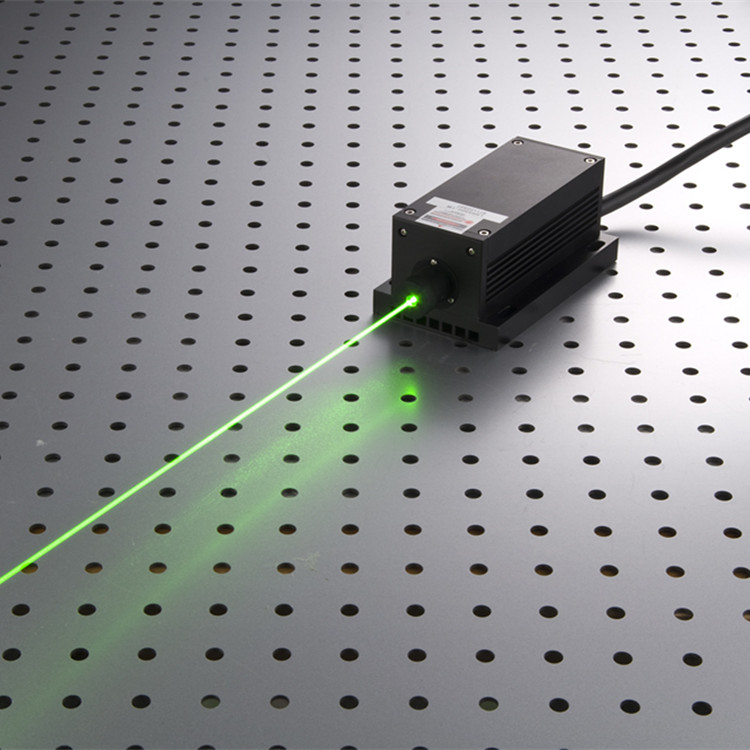

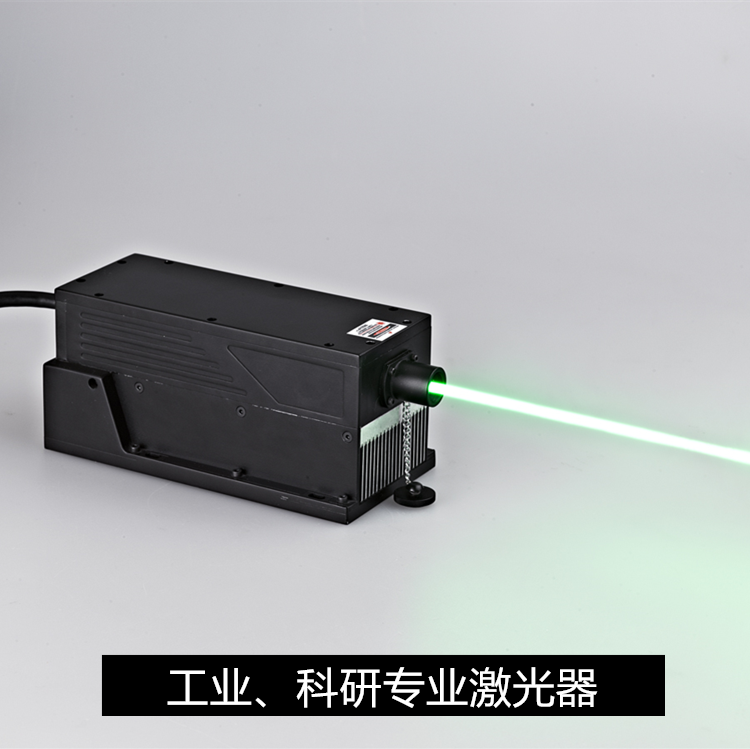

532nm绿光固体激光器
LSR532NL LSR532H LSR532N
| 型号 | 功率 | 价格（元） |
| LSR532NL | 100~700mW | 2000~4000 |
LSR532H | 800~3000mW | 37000~11000 |
| LSR532N | 4000~5000mW | 18000~20000 |
| LSR532W | 10000~20000mW | 35000~72000 |
常规产品参数:
型号/Model No. | LSR532NL |
| 波长/Wavelength | 532 nm |
| 输出功率/Output Power | 400mW～700mW |
| 光斑模式/Spatial Mode | Near TEM00 |
| 工作方式/Operation Mode | CW or Modulation |
| 瞄准稳定性/Pointing Stability | <0.05 mrad |
| 光束直径/Beam Diameter(1/e2) | <2.5 mm |
| 光束发散角/Beam Divergence(full angle) | <1.5 mrad |
| 功率稳定性/Power Stability | <±5% per 4 hrs |
| 温度稳定方式/Temperature Stabilizing | TEC |
| 预热时间/Warm Up Time | <1 minute |
| 使用寿命/MTTF | 10,000 hrs |
| 激光器尺寸/Laser head dimensions | 100(L)x40(W)x50(H)mm3 (fan adds height) |

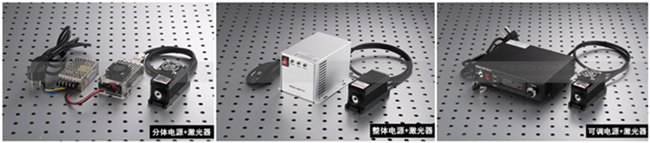

| 配套电源/Power Supply | A. OEM type |
| LSR-PS-I: 100(L)x58(W)x32(H)mm3 | |
| AC/DC PSU: 85~265V 50/60Hz input | |
| B. Lab type | |
| LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 | |
| 85~265V 50/60Hz input | |
| C. Lab Adjustable type | |
| LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 | |
| 85~265V 50/60Hz input | |
| 调制频率/Modulation | 0~30khz Analog or TTL |
