660nm红光半导体激光器
LSR660NL LSR660CPD LSR660CPE LSR660CPF
| 型号 | 功率 | 价格 |
| LSR660NL | 100mW,200mW,1W | 2000~5000元 |
| LSR660CPD | 350mW,500mW | 3000~4000元 |
| LSR660CPE | 1800mW~3600mW | 6000~12000元 |
| LSR660CPF | 5400mW~14000W | 16000~40000元 |
常规产品参数：
| 型号/Model No. | LSR660NL |
| 波长/Wavelength | 660+/-5nm |
| 输出功率/Output Power | 100mW-1400mW |
| 光斑模式/Spatial Mode | Multimode |
| 工作方式/Operation Mode | CW or Modulation |
| 瞄准稳定性/Pointing Stability | <0.05 mrad |
| 光束直径/Beam Diameter(1/e2) | <6mm |
| 光束发散角/Beam Divergence(full angle) | <3mrad |
| 功率稳定性/Power Stability | <±3% per 2 hrs |
| 温度稳定方式/Temperature Stabilizing | TEC |
| 预热时间/Warm Up Time | <5 minutes |
| 使用寿命/MTTF | 10,000 hrs |
| 激光器尺寸/Laser head dimensions | 100(L)x40(W)x50(H)mm3 (fan adds height) |

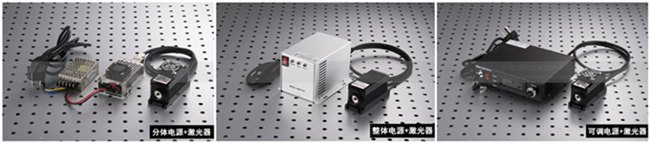

| 配套电源/Power Supply | A. OEM type 分体电源 |
| LSR-PS-NI: 100(L)x58(W)x32(H)mm3 | |
| AC/DC PSU: 85~265V 50/60Hz input | |
| B. Lab type 整体电源 | |
| LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 | |
| 85~265V 50/60Hz input | |
| C. Adjustable Lab type 数显可调电源 | |
| LSR-PS-II: 179(W)x148(D)x56(H)mm3 | |
| 调制频率/Modulation | 0~30khz Analog or TTL |
