460/465蓝光半导体激光器
LSR460NL LSR460/465SD LSR460/465CPD LSR465CPF
| 型号 | 波长 | 功率 | 价格(元） |
| LSR460NL | 460nm | 100~1000mW | 4200~5200 |
| LSR460/465SD | 460/465nm | 1500~2500mW | 4500~6300 |
| LSR460/465CPD | 460/465nm | 4500mW | 9000~9700 |
| LSR465CPF | 465nm | 9000~26000mW | 18500~42000 |
常规产品参数：

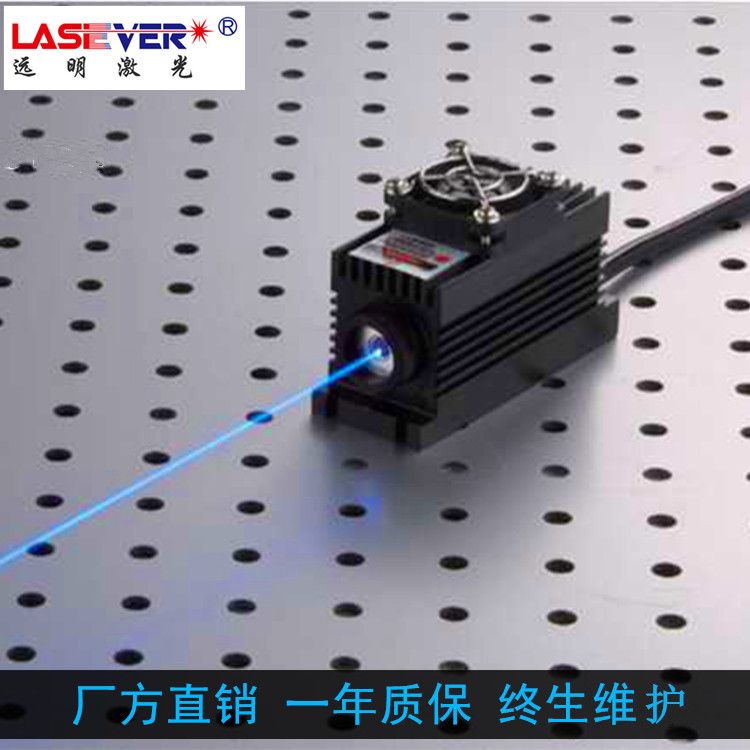

| 型号/Model No. | LSR460NL |
| 波长/Wavelength | 460+/-5 nm |
| 输出功率/Output Power | 100mW～1000mW |
| 光斑模式/Spatial Mode | Near TEM00 |
| 工作方式/Operation Mode | CW or Modulation |
| 光束高度/Beam Height | 25mm |
| 光束尺寸/Beam Size | 4.5*4mm |
| 光束发散角/Beam Divergence(full angle) | 1.2*0.5mrad |
| 功率稳定性/Power Stability | <3% per 4 hrs |
| 预热时间/Warm Up Time | <1 minute |
| 使用寿命/MTTF | 10,000 hrs |
| 激光器尺寸/Laser head dimensions | 100(L)x40(W)x50(H)mm3 |
| 配套电源/Power Supply | A. OEM type |
| LSR-PS-I:100(L)x58(W)x32(H)mm3, 12V input | |
| AC/DC PSU: 85~265V 50/60Hz input | |
| C. Lab Adjustable type | |
| LSR-PS-FA: 178(W)x197(D)x84(H)mm3 | |
| 85~265V 50/60Hz input | |
| 调制频率/Modulation | 0~30khz Analog or TTL |

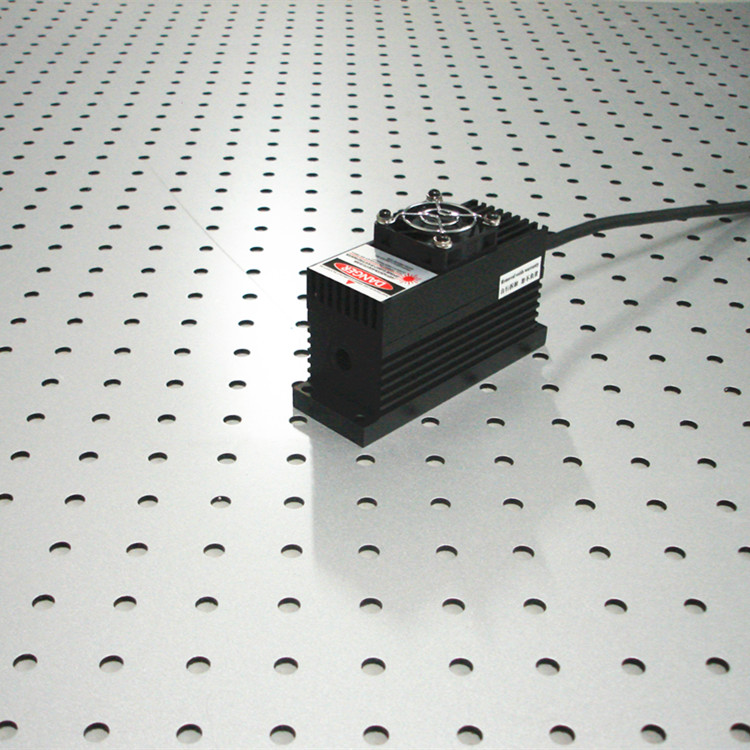

| 型号/Model No. | LSR465SD |
| 波长/Wavelength | 465+/-5 nm |
| 输出功率/Output Power | 1500mW～4500mW |
| 光斑模式/Spatial Mode | Near TEM00 |
| 工作方式/Operation Mode | CW or Modulation |
| 光束高度/Beam Height | 29mm |
| 光束尺寸/Beam Size | 4.5*4mm |
| 光束发散角/Beam Divergence(full angle) | 1.2*0.5mrad |
| 功率稳定性/Power Stability | <3% per 4 hrs |
| 预热时间/Warm Up Time | <1 minute |
| 使用寿命/MTTF | 10,000 hrs |
| 激光器尺寸/Laser head dimensions | 114(L)x44(W)x65(H)mm3 |
| 配套电源/Power Supply | A. OEM type |
| Driver: 100(L)x58(W)x32(H)mm3 | |
| PSU: 104(W)x128(D)x89(H)mm3, 85~265V 50/60Hz input | |
| C. Lab Adjustable type | |
| LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 | |
| 85~265V 50/60Hz input | |
| 调制频率/Modulation | 0~30khz Analog or TTL |
