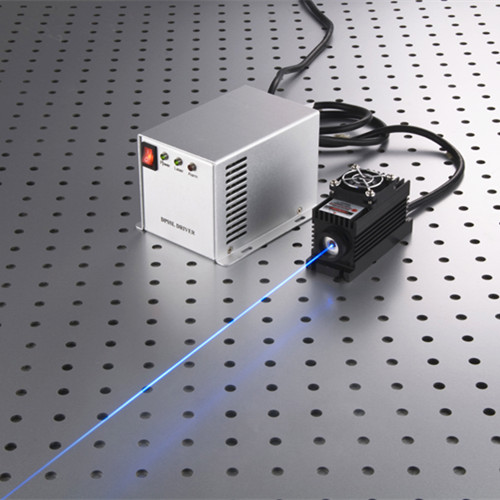

450nm蓝光半导体激光器
LSR450NL LSR450SD LSR450CPD LSR450CPF
| 型号 | 功率 | 价格（元） |
| LSR450NL | 70~1500mW | 2000~3300 |
| LSR450SD | 2000~3000mW | 3000~4800 |
| LSR450CPD | 4000~6000mW | 5000~9000 |
| LSR450CPF | 8000~50000mW | 10000~78000 |
常规产品参数：
| 型号/Model No. | LSR445/450NL |
| 波长/Wavelength | 445+/-5 nm |
| 输出功率/Output Power | 100～1500mW |
| 光斑模式/Spatial Mode | Near TEM00 |
| 工作方式/Operation Mode | CW or Modulation |
| 光束尺寸/Beam Size | 2x4mm |
| 光束发散角/Beam Divergence(full angle) | <3x0.5mrad |
| 功率稳定性/Power Stability | <3% per 4 hrs |
| 温度稳定方式/Temperature Stabilizing | TEC |
| 预热时间/Warm Up Time | <1 minute |
| 使用寿命/MTTF | 10,000 hrs |
| 激光器尺寸/Laser head dimensions | 100(L)x40(W)x50(H)mm3 (fan adds 15mm height) |
| 配套电源/Power Supply | A. OEM type |
| LSR-PS-I: 100(L)x58(W)x32(H)mm3 | |
| AC/DC PSU: 85~265V 50/60Hz input | |
| B. Lab type | |
| LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 | |
| 85~265V 50/60Hz input | |
| C. Lab Adjustable type | |
| LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 | |
| 85~265V 50/60Hz input | |
| 调制频率/Modulation | 0~30khz Analog or TTL |
