型号：EMC32 名称：EMC32 电磁兼容测试软件
型 号：EMC32名 称：EMC32 电磁兼容测试软件产品简介：The R&S®EMC32 EMC measurement software can be used for all electromagnetic interference (EMI) and electromagnetic susceptibility (EMS) measurements The software is a modern and powerful tool for controlling and monitoring Rohde & Schwarz devices as well
详细信息：
Cost-efficient
Flexible and scalable
Future-proof
Modular concept allows flexible adaptation to customer needs
Predefined hardware setups to support easy generation of test setups
Support of measurements according to all major standards in the commercial, wireless, automotive and military range
Manual and automatic EMI and EMS measurements
Fully automatic and interactive sequences
Customer- or EUT-specific data handling
Extensive EUT monitoring capabilities and user-specific actions
Interface to lab management system
The R&S®EMC32/R&S®AMS32 Measurement Software contains open source software packages. Copies of the respective licenses are included in the 'R&S®EMC32 and R&S®AMS32 Measurement Software Open Source Acknowledgement'.- Please refer to the Download/Software area of this web site.
Flexible...
...in its use
Certification measurement
Predefined, fully automated tests and test sequences make it possible to perform and document standardized EMC measurements quickly and easily.
Tests during development
Switchover between manual and automatic measurements at any time.
Compliance testing
Standard measurements can be performed with the aid of predefined test routines and an integrated EUT monitoring function (EMS).
Batch tests
The capability to perform graphical batch measurements is ideal for batch testing.
Calibration
The characteristics of individual system components can be detected by using an optional tracking generator or an external signal generator. In addition, calibration data can be imported as an ASCII file or manually entered.
...in measurement requirements
R&S®EMC32 software offers EMI and EMS measurements for all commercial, automotive and military product groups
Industrial, scientific and medical RF instruments (ISM instruments)
Broadcast receivers and connected units
Household appliances and electric tools
Fluorescent lamps and lighting systems
Information technology equipment (ITE)
Mobile user terminals
Military applications (MIL-STD 461C/D/E)
... in test setups
Support of a wide selection of measuring instruments and system components (e.g. GTEM, TEM cell)
Simple replacement of system components
... in test reports
Integrated report generator with comprehensive capabilities for determining the content as well as the layout of the test report
Report layouts can be stored as templates
Test reports can be printed out or saved as a PDF, RTF or HTML file
... due to a graphical user interface
Clear layout using self-explanatory icons, menus and entry masks allows intuitive operation
Operation analogous to that of a single measuring instrument even when a test system with a number of different components is involved (virtual instrument)
Good overview and clear information due to

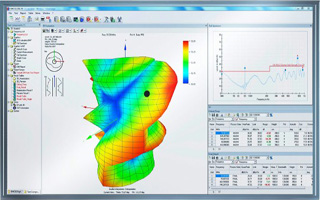

Display of measurement results in the form of traces
Display of test, calibration setups and instrument settings as block diagrams, pictograms and icons
... through assistance
Configuration of the test system can be carried out with software assistance guiding you through all necessary steps
Context-sensitive help functions provide clear information if you have questions or problems
"Getting Started" description provides a comprehensive overview and a brief introduction to operation
... through a modular calibration concept
Calibration capabilities for individual components (e.g. cables), the entire test setup (reference calibration) or the test site (field uniformity) allow rapid verification, fast error location and restoration of measurement functions when an instrument or component has been replaced
External calibration data provided by manufacturers or calibration laboratories can be easily integrated or imported via an editor
... through product-oriented test selection
