型号：VSE 名称：VSE 矢量信号分析软件
型 号：VSE名 称：VSE 矢量信号分析软件产品简介：将强大的罗德与施瓦茨信号分析体验和功能应用于电脑和云端
详细信息：

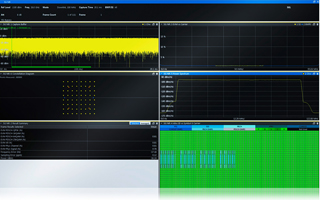

VSE 矢量信号分析软件将强大的利用此软件，用户可使用罗德与施瓦茨信号与频谱分析仪以及示波器，分析并解决多种标准的模拟和数字调制信号问题。罗德与施瓦茨信号分析体验和功能应用于电脑桌面，提供了广泛的分析工具，可用于在电脑上排查问题并优化设计。
支持移动和无线通信标准
高级脉冲分析
并行分析实现快速测量
支持浮动许可证
从一台电脑控制多台仪器
支持 R&S®FSL/FPS/FSV/FSVA/FSW/FSWP/RTP/RTO/FPL1000/ZNL/ETL
型号 | 说明 | 订货号 |
VSE | Vector signal explorer base software, basic edition | 1345.1011.06 |
VSE enterprise edition | Vector signal explorer base software, enterprise edition Software options | 1345.1105.06 |
VSE-K6 | Pulse measurement application | 1320.7516.06 |
VSE-K7 | Analog modulation analysis (AM/FM/pM) | 1320.7539.06 |
VSE-K10 | GSM measurements | 1313.1368.06 |
VSE-K60 | Transient measurements | 1320.7868.06 |
VSE-K60C | Transient chirp measurements (requires VSE-K60) | 1320.7874.06 |
VSE-K60H | Transient hop measurements (requires VSE-K60) | 1320.7880.06 |
VSE-K70 | Vector signal analysis | 1320.7522.06 |
VSE-K70M | Multi-modulation analysis | 1345.1211.06 |
VSE-K70P | PRBS bit error rate measurements | 1345.1228.06 |
VSE-K72 | 3GPP FDD measurements | 1320.7580.06 |
VSE-K91 | IEEE802.11a/b/g measurements | 1320.7597.06 |
VSE-K91P | IEEE802.11p measurements | 1320.7680.06 |
VSE-K91N | IEEE802.11n measurements | 1320.7600.06 |
VSE-K91AC | IEEE802.11ac measurements | 1320.7616.06 |
VSE-K96 | OFDM signal analysis | 1320.7922.06 |
VSE-K100 | EUTRA/LTE FDD uplink and downlink measurement application | 1320.7545.06 |
VSE-K102 | EUTRA/LTE-Advanced and MIMO (downlink) | 1320.7551.06 |
VSE-K104 | EUTRA/LTE TDD uplink and downlink measurement application | 1320.7568.06 |
VSE-K106 | EUTRA/LTE narrowband IoT analysis | 1320.7900.06 |
VSE-K144 | 5G uplink and downlink measurement application | 1309.9574.06 |
VSE-K544 | Frequency response correction | 1309.9580.06 |
VSE-K544 | User-defined frequency correction by SnP file | 1309.9580.06 |
R&S瓼SPC | License dongle | 1310.0002.03 |
R&S瓼SPC-FL | License dongle for floating licenses Service options | 1310.0002.04 |
VSE-SWM | Software maintenance | 1320.7622.81 |
