型号：FSW 名称：FSW 信号与频谱分析仪

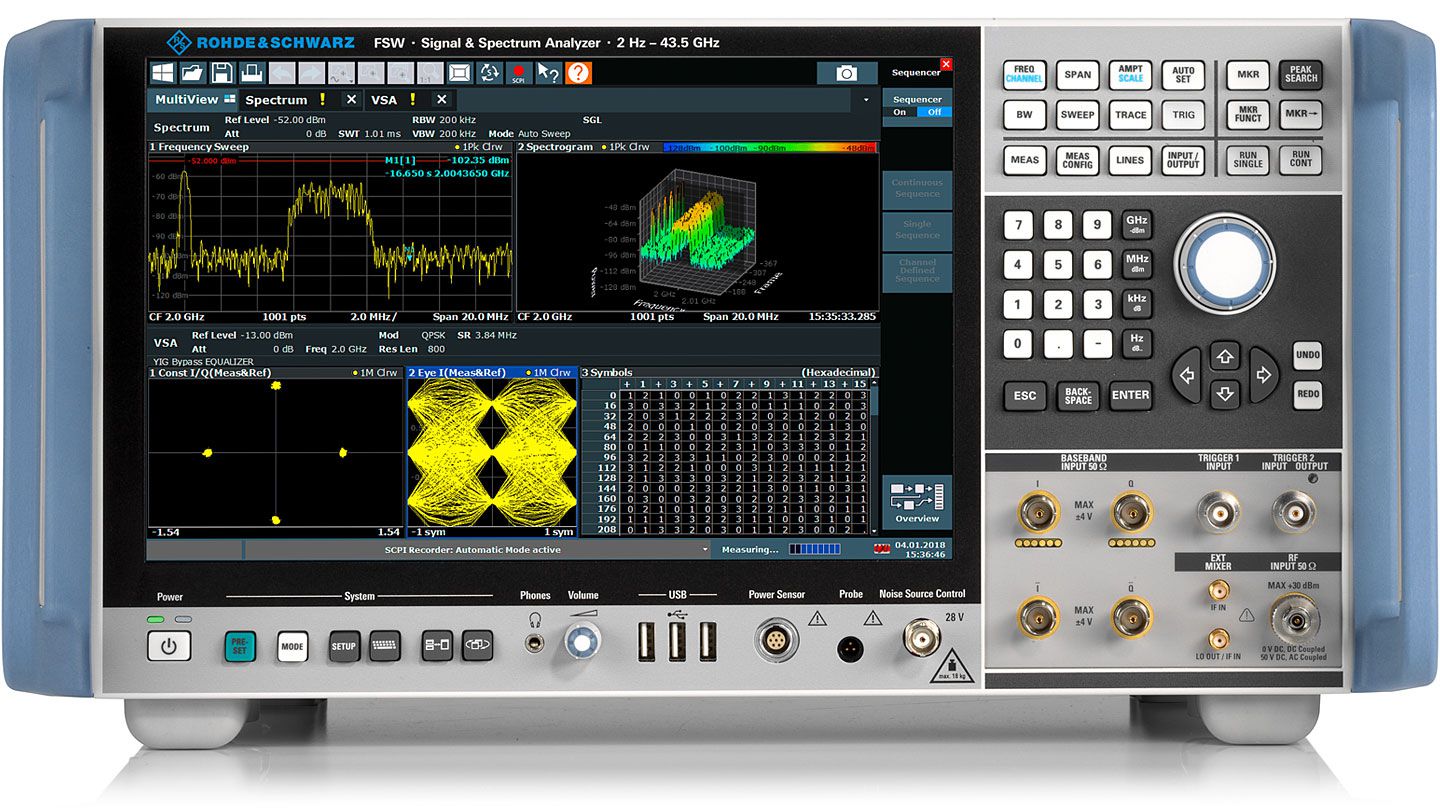

型 号：FSW名 称：FSW 信号与频谱分析仪产品简介：高性能FSW 信号与频谱分析仪可帮助工程师完成严苛任务。它具备较高的内部分析带宽，可对宽带组件和通信系统进行特性分析。该仪器具备出色的相位噪声，有助于开发适用于雷达等应用的高性能振荡器。
详细信息：
FSW重新定义了顶级信号与频谱分析仪，在 ACLR 和谐波测量的相位噪声、显示平均噪声电平、互调抑制以及动态范围方面具备卓越的射频性能。
12.1" 高分辨率多点触控显示屏支持手势操作，采用扁平化 Windows 10 设计
在不同窗口中同时显示多种测量，轻松说明结果
嵌入式 SCPI 记录器可简化自动化远程控制测量的代码生成
FSW内部分析带宽高达 2 GHz 并且可扩展，能够捕获下行链路信号的完整带宽，并评估整体系统。

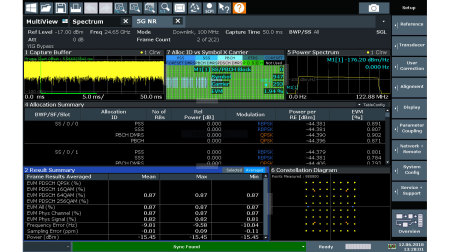

FSW-K144 和 FSW-K145 选件涵盖下行链路和上行链路中的 3GPP 5G NR 带内测量。可分析每个信号子帧并提供广泛的测量结果，包括不同通道和信号的 EVM、频率和功率。
快速全面的雷达信号分析，FSW 具备较高的分析带宽（内部分析带宽高达 2 GHz，与 RTO2064 示波器结合使用时可达 5 GHz），并提供用于雷达测试的重要分析功能。

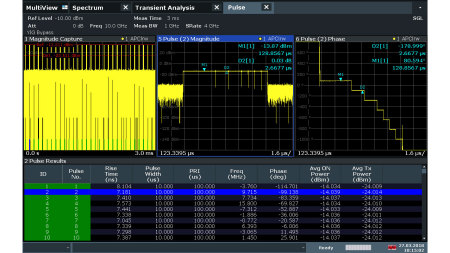

FSW-K6 脉冲测量应用可一键测量所有相关脉冲参数
FSW-K6S 时间旁瓣测量选件可测量脉冲压缩参数
FSW-K60/K60H 选件可分析跳频信号

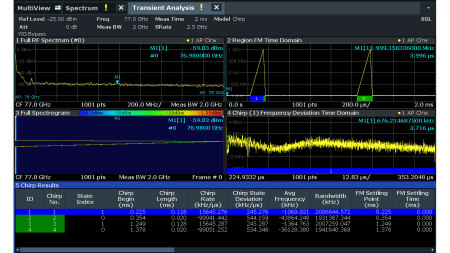

E频段免影像宽带信号分析，FSW85 信号与频谱分析仪具备 YIG 预选器，适用频率范围为 8 GHz 至 85 GHz，可支持免影像频谱分析。它具备较高的分析带宽（内部分析带宽高达 2 GHz，与RTO2064 示波器结合使用时可达 5 GHz），配备FSW-K60/-K60C 瞬态分析/线性调频测量选件，可对汽车电子雷达等应用中高达 5 GHz 的宽 FMCW 信号进行特性分析。
频率 | ||
频率范围 | FSW8 | 2 Hz to 8 GHz |
FSW13 | 2 Hz to 13.6 GHz | |
FSW26 | 2 Hz to 26.5 GHz | |
FSW43 | 2 Hz to 43.5 GHz | |
FSW50 | 2 Hz to 50 GHz | |
FSW67 | 2 Hz to 67 GHz | |
FSW85 | 2 Hz to 85 GHz up to 90 GHz with R&S®FSW-B90G option, YIG preselector = off | |
参考频率稳定度 | 1 × 10–7/year | |
with R&S®FSW-B4 option | 3 × 10–8/year | |
带宽 | ||
分辨率带宽 | standard filter | 1 Hz to 10 MHz, 80 MHz (with R&S®FSW-B8 option) |
RRC filter | 18 kHz (NADC), | |
channel filter | 100 Hz to 5 MHz | |
video filter | 1 Hz to 10 MHz | |
I/Q解调分析带宽 | 10 MHz | |
with R&S®FSW-B28 option | 28 MHz | |
with R&S®FSW-B40 option | 40 MHz | |
with R&S®FSW-B80 option | 80 MHz | |
with R&S®FSW-B160 option | 160 MHz | |
with R&S®FSW-B320 option | 320 MHz | |
with R&S®FSW-B512 option | 512 MHz | |
with R&S®FSW-B1200 option | 1.2 GHz1) | |
with R&S®FSW-B2001 option | 2 GHz1) | |
with R&S®FSW-B2000 option | 2 GHz2) | |
with R&S®FSW-B5000 option | 5 GHz3) | |
相噪 | ||
10 kHz offset from carrier | 500 MHz carrier | –141 dBc (1 Hz) (typ.) |
1 GHz carrier | –140 dBc (1 Hz) (typ.) | |
10 GHz carrier | –133 dBc (1 Hz) (typ.) | |
Displayed average noise level (DANL) | ||
2 GHz | –156 dBm (1 Hz) (typ.) | |
with R&S®FSW-B13 option | –159 dBm (1 Hz) (typ.) | |
DANL with preamplifier | 2 GHz | –169 dBm (1 Hz) (typ.) |
互调 | ||
Third-order intercept (TOI) | f < 1 GHz | +30 dBm (typ.) |
f < 3 GHz | +25 dBm (typ.) | |
19 GHz to 26.5 GHz | +23 dBm (typ.) | |
总测量不确定度 | 8 GHz | < 0.37 dB |
选件 | 型号 | 订货号 | 说明 |
OCXO | SW-B4 | 1313.0703.02 | user-retrofittable |
分辨率带宽 > 10 MHz | SW-B8 | 1313.2464.26 | for SW8/13/26; the signal analysis bandwidth is defined by the SW-B28/-B40/-B80/-B160/ -B320/-B512/-B512R/-B1200/ -B2001/-B800R/-B5000 options, not by the SW-B8 option; contact service center |
分辨率带宽 > 10 MHz | SW-B8 | 1313.2464.02 | for SW43/50/67/85; the signal analysis bandwidth is defined by the SW-B28/-B40/-B80/-B160/ -B320/-B512/-B512R/-B1200/ -B2001/-B5000/-B800R options, not by the SW-B8 option; contact service center; export license required |
扩展发生器控制 | SW-B10 | 1313.1622.02 | contact service center |
谐波测试高通滤波器 | SW-B13 | 1313.0761.02 | user-retrofittable |
数字基带接口 | SW-B17 | 1313.0784.02 | user-retrofittable |
SSD硬盘 | SW-B18 | 1313.0790.10 | user-retrofittable |
LO/IF Connections for external mixers | SW-B21 | 1313.1100.28 | for SW26/43/50/67; contact service center |
LO/IF Connections for external mixers | SW-B21 | 1313.1100.86 | for SW85; contact service center |
RF Preamplifier, 100 kHz to 13.6 GHz | SW-B24 | 1313.0832.13 | for SW8/13; contact service center |
RF Preamplifier, 100 kHz to 26.5 GHz | SW-B24 | 1313.0832.26 | for SW26; contact service center |
RF Preamplifier, 100 kHz to 43.5 GHz | SW-B24 | 1313.0832.43 | for SW43/67; no export license required; contact service center |
RF Preamplifier, 100 kHz to 50 GHz | SW-B24 | 1313.0832.49 | for SW50; no export license required; contact service center |
RF Preamplifier, 100 kHz to 50 GHz | SW-B24 | 1313.0832.51 | for SW50; export license required; contact service center |
RF Preamplifier, 100 kHz to 67 GHz | FSW-B24 | 1313.0832.66 | for FSW67; no export license required; contact service center |
RF Preamplifier, 100 kHz to 67 GHz | FSW-B24 | 1313.0832.67 | for FSW67; export license required; contact service center |
Electronic Attenuator, 1 dB steps | FSW-B25 | 1313.0990.02 | for FSW8/13/26; contact service center |
USB Mass Memory Write Protection | FSW-B33 | 1313.3602.02 | pre-installed in factory |
28 MHz Analysis Bandwidth | FSW-B28 | 1313.1645.02 | user-retrofittable |
40 MHz Analysis Bandwidth | FSW-B40 | 1313.0861.02 | user-retrofittable |
80 MHz Analysis Bandwidth | FSW-B80 | 1313.0878.02 | user-retrofittable |
160 MHz Analysis Bandwidth | FSW-B160 | 1325.4850.14 | contact service center |
320 MHz Analysis Bandwidth | FSW-B320 | 1325.4867.14 | includes 200 MHz IF filter; contact service center |
512 MHz Analysis Bandwidth | FSW-B512 | 1331.7106.14 | includes 200 MHz IF filter; contact service center |
1200 MHz Analysis Bandwidth | FSW-B1200 | 1331.6400.14 | for FSW26/43/50/67/85 ex-factory; for later upgrade of FSW instruments use FSW-U1200; not available in combination with FSW-B2000; contact service center |
2000 MHz Analysis Bandwidth | FSW-B2001 | 1331.6916.14 | for FSW26/43/50/67/85 ex-factory; for later upgrade of FSW instruments use FSW-U2001; not available in combination with FSW-B2000; contact service center |
2 GHz Analysis Bandwidth | FSW-B2000 | 1325.4750.02 | for FSW26/43/50/67/85; not available in combination with FSW-B1200/-B2001/-B800R/-B5000; uses RTO oscilloscope as digitizer; contact service center |
5 GHz Analysis Bandwidth | FSW-B5000 | 1331.6997.43 / 1331.6997.85 | for FSW43 / FSW85 only; not available in combination with FSW-B2000; 2 GHz analysis bandwidth supported by option FSW-B21; uses RTO oscilloscope as digitizer; contact service center |
Analog Baseband Inputs, 40 MHz Analysis Bandwidth | FSW-B71 | 1313.1651.13 | for FSW8/13; contact service center |
Analog Baseband Inputs, 40 MHz Analysis Bandwidth | FSW-B71 | 1313.1651.26 | for FSW26/43/50; contact service center |
Analog Baseband Inputs, 40 MHz Analysis Bandwidth | FSW-B71 | 1313.1651.67 | for FSW67; contact service center |
Analog Baseband Inputs, 40 MHz Analysis Bandwidth | FSW-B71 | 1313.1651.86 | for FSW85; contact service center |
80 MHz Analysis Bandwidth for Analog Baseband Inputs | FSW-B71E | 1313.6547.02 | FSW-B71 required; user-retrofittable |
Oscilloscope Baseband Inputs | FSW-B2071 | 1331.8302.02 | user-retrofittable |
Real-Time Spectrum Analyzer 512 MHz, POI≤15us | FSW-B512R | 1331.7106.16 | contact service center includes 512 MHz analysis bandwidth and 200 MHz IF filter; export license required |
Real-Time Spectrum Analyzer 800 MHz, POI≤15us | FSW-B800R | 1331.6400.16 | contact service center includes 2000 MHz analysis bandwidth; not available in combination with FSW-B2000; export license required |
Frequency Extension 90 GHz | FSW-B90G | 1331.7693.02 | for FSW85 only; without preselection for f > 85 GHz |
I/Q Memory Extension 6 GB | FSW-B106 | 1331.6451.02 | FSW-B160/-U160/-B320 required; user retrofittable |
DIG IQ 40G Streaming Out Interface | FSW-B517 | 1331.6980.02 | FSW-B512/-U512/-B1200/-U1200/ -B2001/-U2001/-B800R required; user retrofittable |
Pulse Measurements | SW-K6 | 1313.1322.02 | |
Time Side Lobe Measurement | SW-K6S | 1325.3738.02 | SW-K6 option required |
Analog Modulation Analysis for AM/FM/pM | SW-K7 | 1313.1339.02 | |
GSM/EDGE/EDGE Evolution/ VAMOS Measurements | SW-K10 | 1313.1368.02 | |
VOR/ILS Measurements | SW-K15 | 1331.4388.02 | contact service center |
Multicarrier Group Delay Measurements | SW-K17 | 1313.4150.02 | |
Amplifier Measurements | SW-K18 | 1325.2170.02 | |
Direct DPD Measurements | SW-K18D | 1331.6845.02 | SW-K18 option required |
Noise Power Ratio Measurements | SW-K19 | 1331.8283.02 | |
Noise Figure Measurements | SW-K30 | 1313.1380.02 | |
Security Write Protection of solid state drive | SW-K33 | 1322.7936.02 | |
Phase Noise Measurements | SW-K40 | 1313.1397.02 | |
Spurious Measurements | SW-K50 | 1325.2893.02 | |
EMI Measurements | SW-K54 | 1313.1400.02 | |
CISPR Calibration for SW-K54 | SW-K54CAL | 1331.5932.02 | in line with ISO 17025 and ISO 9000; SW-K54 option required |
Transient Measurement Application | SW-K60 | 1313.7495.02 | |
Transient Hop Measurement | SW-K60H | 1322.9916.02 |
