NRP18S-xx 高功率功率探头

型号：NRP18S 名称：NRP18S-xx 高功率功率探头

查看原图

产品附图： (1/2)

收藏

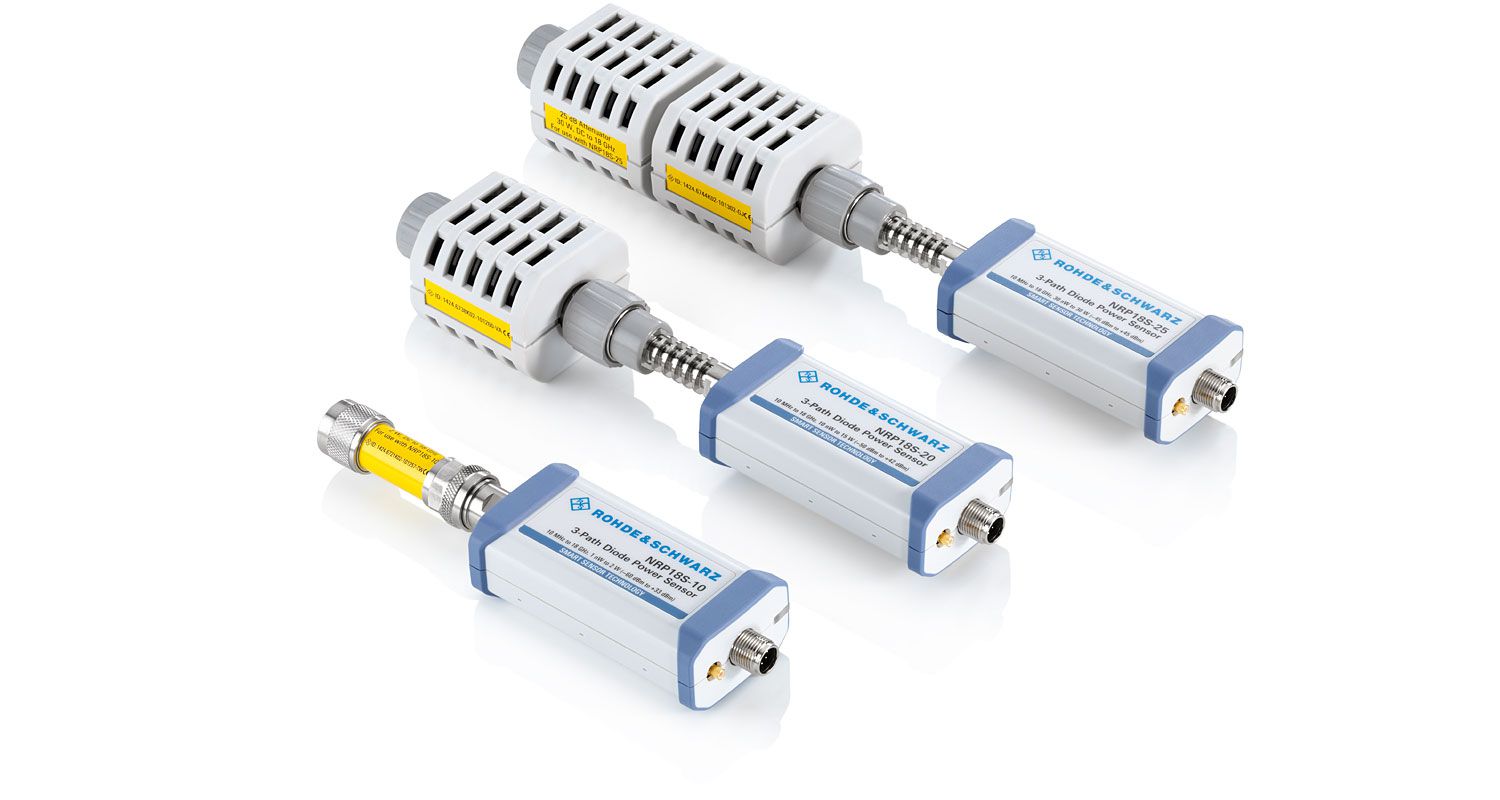

型 号：NRP18S名 称：NRP18S-xx 高功率功率探头产品简介：R&S®NRP18S-10, R&S®NRP18S-20 and R&S®NRP18S-25 高功率探头保护 R&S®NRP18S 和一个衰减器，可测试功率高达2 W, 15 W and 30 W

详细信息：

规格

High-power three-path diode power sensor

频率范围

功率范围

阻抗匹配 (SWR)

上升时间
视频带宽

测量不确定度
+20 °C to +25 °C
absolute (in dB)

测量不确定度
+20 °C to +25 °C
relative (in dB)

R&S®NRP18S-10, N (m)

10 MHz to
18 GHz

1 nW to
2 W
(–60 dBm to
+33 dBm)

10 MHz to
2.4 GHz:

< 1.14

< 5 µs
> 100 kHz

0.083 to 0.198

0.022 to 0.087



>2.4 GHz to
8.0 GHz:

< 1.20






> 8.0 GHz to
12.4 GHz:

< 1.25






> 12.4 GHz to
18.0 GHz:

< 1.30




R&S®NRP18S-20, N (m)

10 MHz to
18 GHz

10 nW to
15 W
(–50 dBm to
+42 dBm)

10 MHz to
2.4 GHz:

< 1.14

< 5 µs
> 100 kHz

0.083 to 0.198

0.022 to 0.087



>2.4 GHz to
8.0 GHz:

< 1.25






> 8.0 GHz to
12.4 GHz:

< 1.30






> 12.4 GHz to
18.0 GHz:

< 1.41




R&S®NRP18S-25, N (m)

10 MHz to
18 GHz

30 nW to
30 W
(–45 dBm to
+45 dBm)

10 MHz to
2.4 GHz:

< 1.14

< 5 µs
> 100 kHz

0.083 to 0.198

0.022 to 0.087



>2.4 GHz to
8.0 GHz:

< 1.25






> 8.0 GHz to
12.4 GHz:

< 1.30






> 12.4 GHz to
18.0 GHz:

< 1.41
