型号：ZND 名称：ZND 矢量网络分析仪

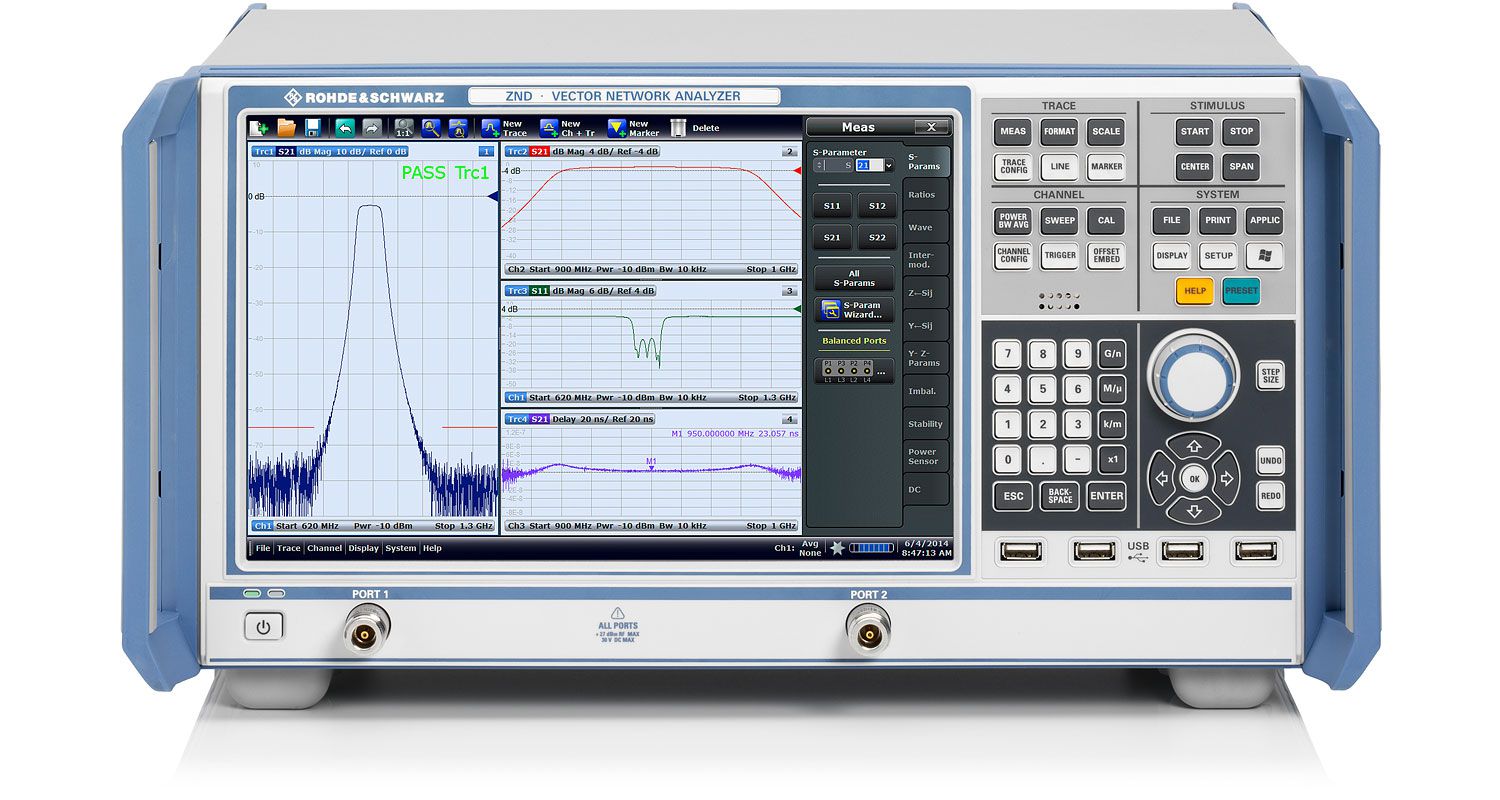

型 号：ZND名 称：ZND 矢量网络分析仪产品简介：R&S®ZND 是一款提供最高 4 5 GHz 的单向测量的基本网络分析仪。 用户可选择选件以执行双向测量，并将频率范围扩展到 8 5 GHz。
详细信息：
双端口网络分析仪，适用于 100 kHz 至 4.5 GHz 的单向测量
频率范围可扩展到 8.5 GHz
测试装置可经优化，以支持双向测量
触屏操作
最高 120 dB 的动态范围
最高 48 dB 的功率扫描范围
1 Hz 至 300 kHz 的带宽
超过 100 个迹线和信道
可与所有的
一款根据您的需求不断改进的分析仪
矢量网络分析
单向测试装置
双向测试装置
易于升级
针对电缆和滤波器测量的时域分析
可轻松转换到 R&S®ZNB 系列分析仪
接口适用于生产环境下的测试序列控制
易于操作
平面、简明的菜单结构，方便有效操作
针对每项测量任务的最优显示配置
方便校准
针对每个应用的正确的校准方法
使用罗德与施瓦茨校准套件获得灵活性和精确性
30 秒内自动校准
型号 | 说明 | 频率范围 | 订货号 |
ZND | 矢量网络分析仪 2端口, 4.5 GHz, N | 100 kHz to 4.5 GHz | 1328.5170.92 |
选件 | |||
ZND.B10 | GPIB Interface1) | 1328.5358.02 | |
ZN-B14 | Handler I/O | 1316.2459.02 | |
ZND.K1 | Extended Frequency Range, unidirectional, 8.5 GHz2),3) | 100 kHz to 8.5 GHz | 1328.5306.02 |
ZND.K2 | Time Domain Analysis (TDR) | 1328.5393.02 | |
ZND.K5 | Full Test Set, Base Unit, bidirectional, 4.5 GHz3),4) | 100 kHz to 4.5 GHz | 1328.5312.02 |
ZND-K6 | Full Test Set, bidirectional, 8.5GHz3), 5) | 100 kHz to 8.5 GHz | 1328.5329.02 |
ZND-K7 | Extended Power Range for ZND | 1328.5335.02 | |
ZND.K8 | Extended Frequency Range, Full Test Set, bidirectional, 8.5 GHz3),6) | 100 kHz to 8.5 GHz | 1328.5412.02 |
ZVAB-B44 | USB-to-IEC/IEEE Adapter | 1302.5544.02 | |
Accessories | |||
校准件 (manual calibration) | |||
ZCAN | Calibration Kit, N, 50Ω | 0 Hz to 3 GHz | 0800.8515.52 |
ZV-Z170 | Calibration Kit, N (m), 50Ω | 0 Hz to 9 GHz | 1317.7683.02 |
ZV-Z170 | Calibration Kit, N (f), 50Ω | 0 Hz to 9 GHz | 1317.7683.03 |
ZV-Z270 | Calibration Kit, N, 50Ω | 0 Hz to 18 GHz | 5011.6536.02 |
ZV-Z135 | Calibration Kit, 3.5 mm (m), 50Ω | 0 Hz to 15 GHz | 1317.7677.02 |
ZV-Z135 | Calibration Kit, 3.5 mm (f), 50Ω | 0 Hz to 15 GHz | 1317.7677.03 |
ZV-Z235 | Calibration Kit, 3.5 mm, 50Ω | 0 Hz to 26.5 GHz | 5011.6542.02 |
校准件 (automatic calibration) | |||
ZN.Z151 | Calibration Unit, Two ports, N (f) | 100 kHz to 8.5 GHz | 1317.9134.72 |
ZN.Z50 | Calibration Unit, Two ports, 3.5mm (f) | 9 kHz to 9 GHz | 1335.6904.30 |
ZN.Z51 | Calibration Unit, Two Ports, N (f) 7) | 100 kHz to 8.5 GHz | 1319.5507.72 |
ZN.Z51 | Calibration Unit, Two Ports, 3.5mm (f) | 100 kHz to 8.5 GHz | 1319.5507.32 |
测试电缆 | |||
ZV-Z91 | N (m)/N (m), 50Ω, length: 0.6m/1m | 0 Hz to 18 GHz | 1301.7572.25/38 |
ZV-Z191 | N (m)/N (m), 50Ω, length: 0.6m/0.9m | 0 Hz to 18 GHz | 1306.4507.24/36 |
ZV-Z92 | N (m)/3.5mm (m), 50Ω, length: 0.6m/1m | 0 Hz to 18 GHz | 1301.7589.25/38 |
ZV-Z192 | N (m)/3.5mm (m), 50Ω, length: 0.6m/0.9m | 0 Hz to 18 GHz | 1306.4513.24/36 |
ZV-Z93 | 3.5mm (f)/3.5mm (m), length: 0.6m/1m | 0 Hz to 26.5 GHz | 1301.7595.25/38 |
ZV-Z193 | 3.5mm (f)/3.5mm (m), length: 0.6m/0.9m | 0 Hz to 26.5 GHz | 1306.4520.24/36 |
扩展 | |||
ZZA.KN5 | 19 Rackmount Kit | 1175.3040.00 | |
1) Requires R&S®ZVAB-B44 to control external generators via the IEC/IEEE bus.
2) R&S®ZND-K1: cannot be combined with R&S®ZND-K5 and R&S®ZND-K8.
3) Recalibration required.
4) R&S®ZND-K5: cannot be combined with R&S®ZND-K1 and R&S®ZND-K6.
5) R&S®ZND-K6: requires R&S®ZND-K1, cannot be combined with R&S®ZND-K5 and R&S®ZND-K8.
6) R&S®ZND-K8: requires R&S®ZND-K5, cannot be combined with R&S®ZND-K1 and R&S®ZND-K6.
7) Can also be configured with other connector systems.
