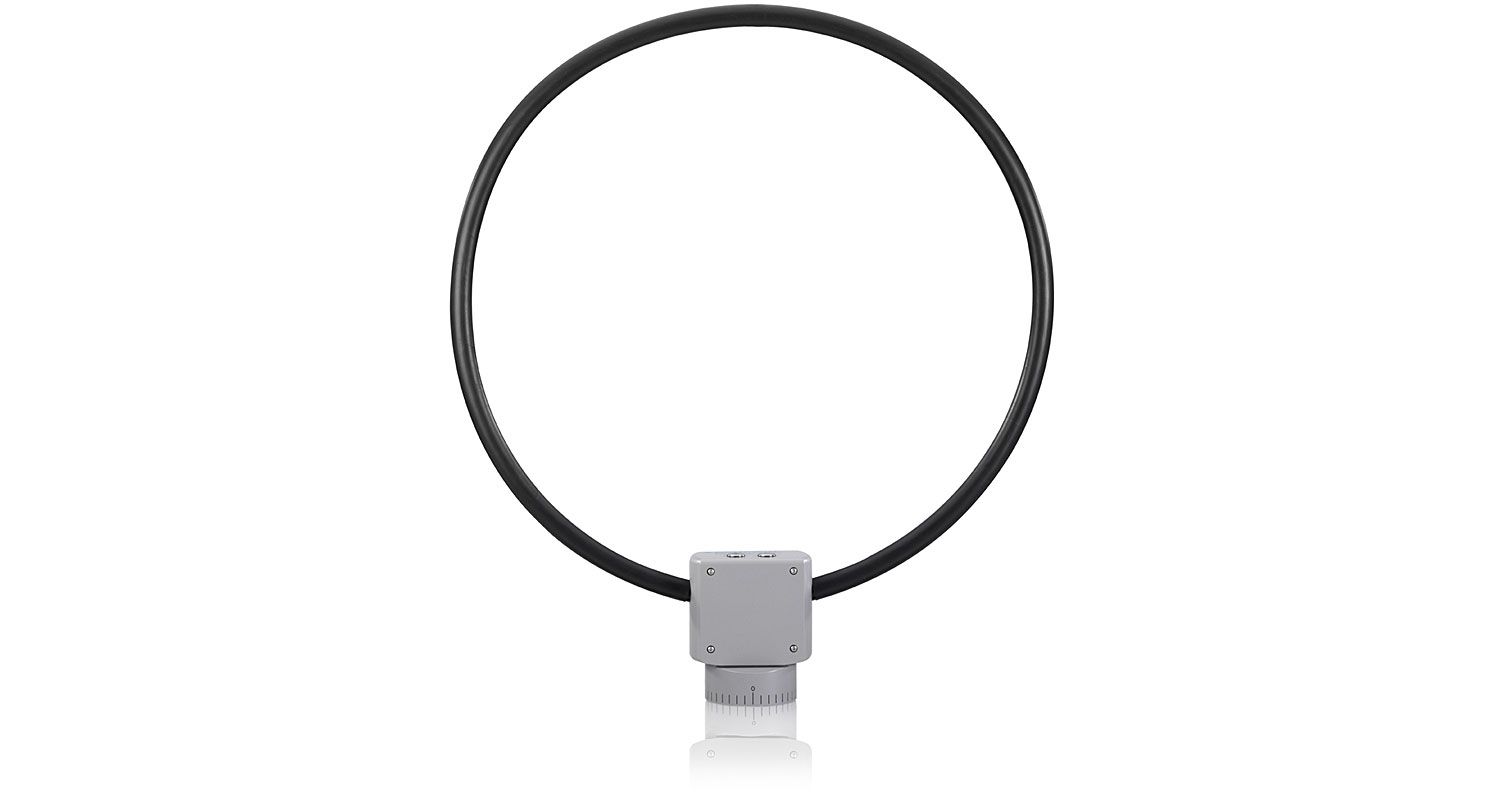

HFH2-Z2E 宽带有源环形天线

型号：HFH2-Z2E 名称：HFH2-Z2E 宽带有源环形天线

查看原图

产品附图： (1/1)

收藏

型 号：HFH2-Z2E名 称：HFH2-Z2E 宽带有源环形天线产品简介：The R&S®HFH2-Z2E active loop antenna is used to measure the magnetic field strength in the LF, MF and HF frequency range It can be used for EMI measurements in line with various standards (i e CISPR, MIL, FCC, ANSI, ETSI) "

详细信息：

关键特性

        Wide frequency range

        High sensitivity

        Wide dynamic range

        Integrated overload warning

        Bias unit R&S®IN600 for supply via coaxial cable

规格

Frequency range


8.3 kHz to 30 MHz

Polarization


linear

Nominal impedance


50 Ω

Antenna connector


N female

Antenna factor in normal mode

8.3 kHz to 20 kHz

20 dB/m (± 2 dB)


> 20 kHz to 30 MHz

20 dB/m (± 1.5 dB)

Antenna factor in attenuation mode

8.3 kHz to 20 kHz

30 dB/m (± 2 dB)


> 20 kHz to 30 MHz

30 dB/m (± 1.5 dB)

Dimensions

W x D x H

approx. 590 x 90 x 822 mm


Loop diameter

approx. 600 mm

Weight


approx. 3 kg
