型号：HE016 名称：HE016 有源天线
型 号：HE016名 称：HE016 有源天线产品简介：Omnidirectional reception of horizontally and vertically polarized signals High linearity High immunity to lightning strokes in the vicinity
详细信息：
9 kHz to 80 MHz (vertical)
600 kHz to 40 MHz (horizontal)
Omnidirectional reception of vertically and horizontally polarized signals

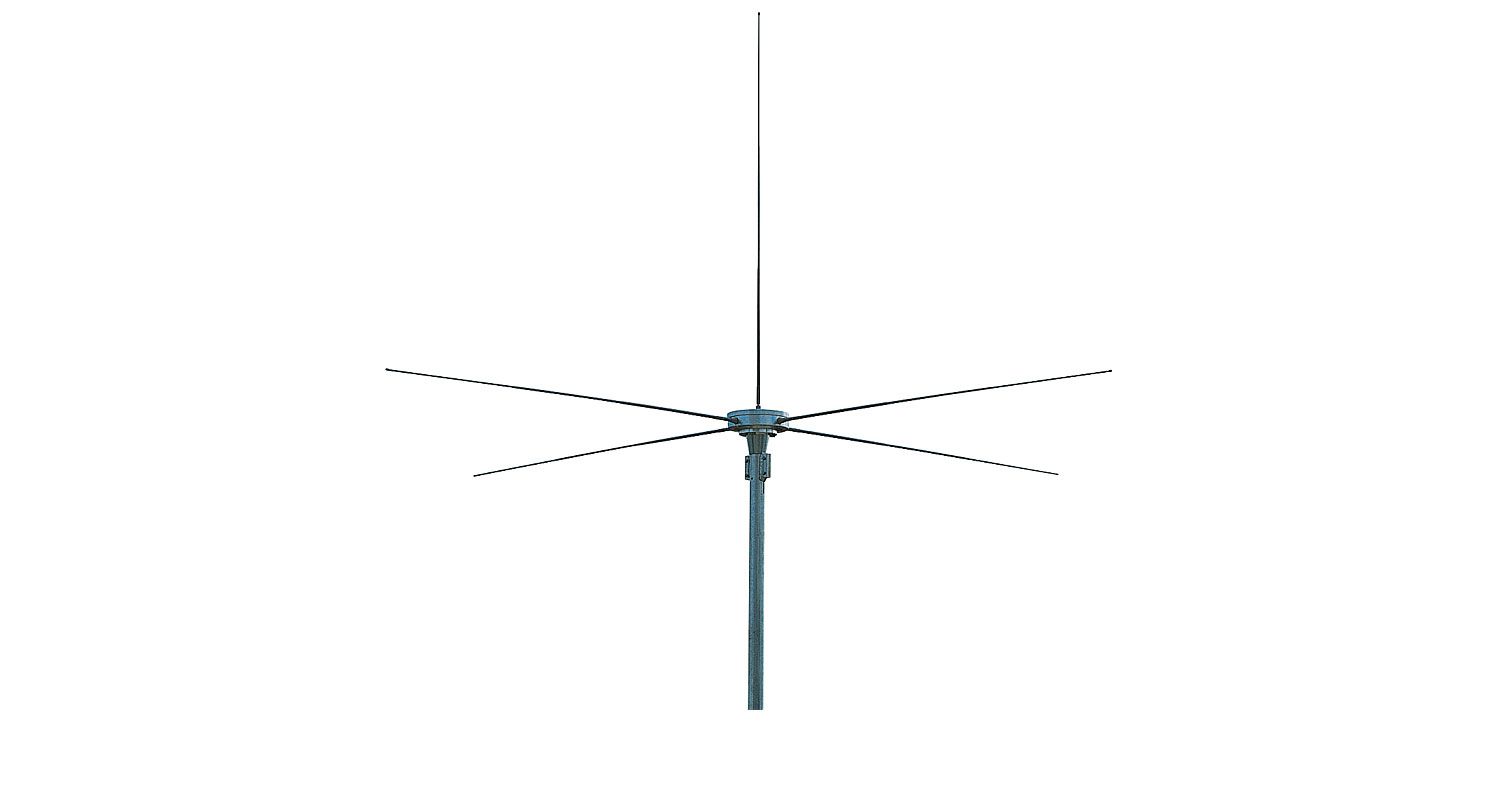

The Active Antenna System R&S®HE016 is a combination of the Active Rod Antenna R&S®HE010 and two crossed HF dipole antennas. The two horizontal dipole antennas are combined via a 90° coupler to produce an omnidirectional radiation pattern.
The high sensitivity of the antenna system is comparable to that of passive systems although the R&S®HE016 requires less than one third of the antenna surface of a passive system.
Recommended extras
Bias Unit R&S®IN600
Mast, 6 m, can be disassembled, R&S®KM011
Omnidirectional reception of horizontally and vertically polarized signals
High linearity
High immunity to lightning strokes in the vicinity
Extremely small dimensions
High sensitivity – comparable to that of passive antennas that are three times larger
R&S®HE016 | |
Frequency range | |
Vertical polarization | 9 kHz to 80 MHz |
Horizontal polarization | 600 kHz to 40 MHz |
Input impedance | 50 Ω |
VSWR | |
9 kHz to 20 kHz | <3 |
20 kHz to 80 MHz | <2 |
IP2 | ≥50 dBm (up to 30 MHz) |
IP3 | ≥30 dBm (up to 30 MHz) |
Power consumption | |
Vertical | approx. 160 mA at 24 V DC |
Horizontal | approx. 340 mA at 24 V DC |
Connector | 2 × N female |
MTBF | >25 000 h |
Operating temperature range | –40 °C to +65 °C |
Max. wind speed | 188 km/h (without ice deposit) |
Dimensions | |
Height | approx. 1.4 m |
Diameter | approx. 2.85 m |
Weight | approx. 5.5 kg |
