型号：HE010E 名称：HE010E 有源拉杆天线

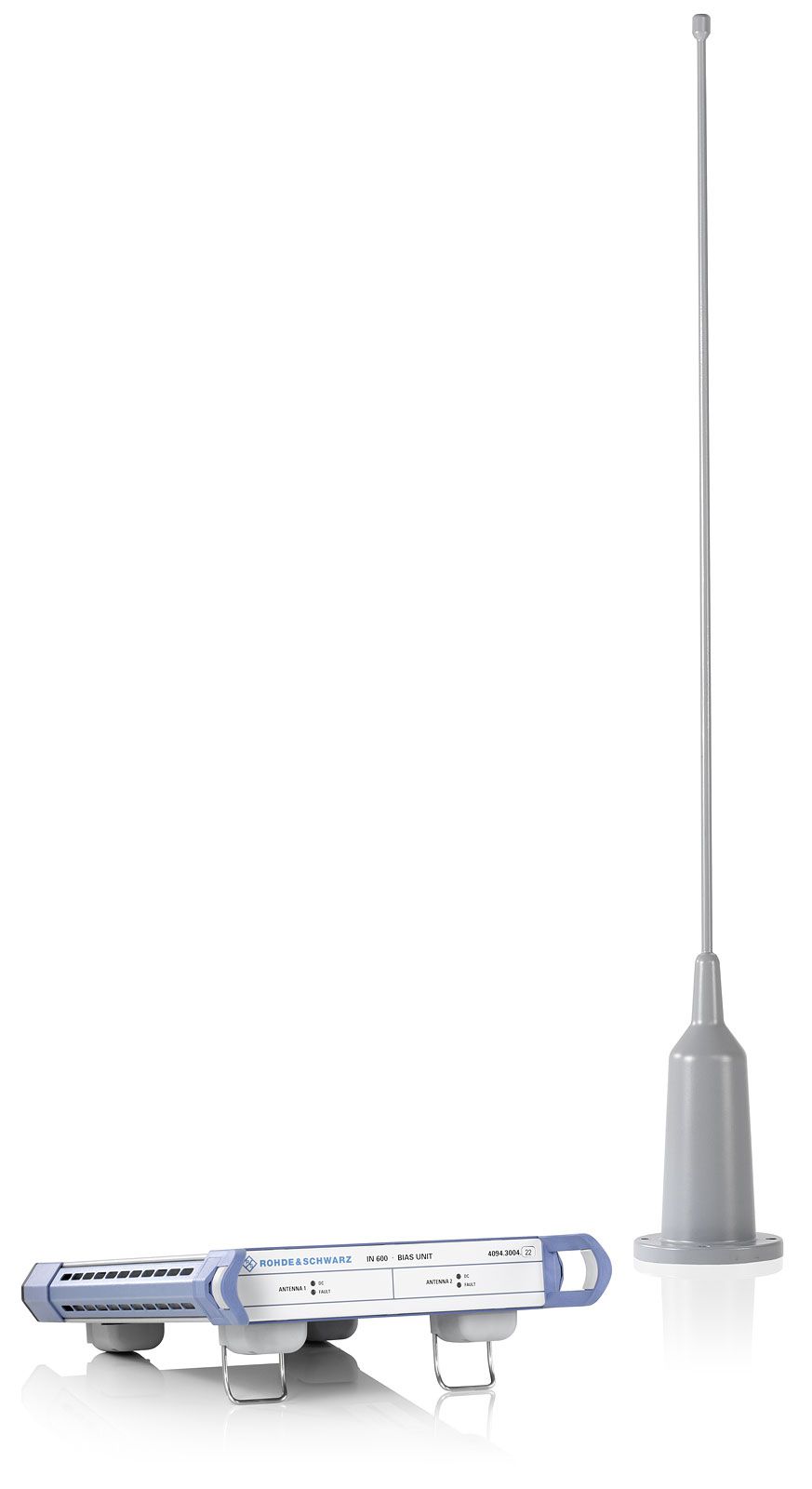

型 号：HE010E名 称：HE010E 有源拉杆天线产品简介：The R&S®HE010E is designed as a broadband monitoring antenna for vertically polarized waves Its main application is sensitive monitoring in stationary or mobile applications where it offers very good reception results due to its low inherent noise figure
详细信息：
8.3 kHz to 100 MHz
The R&S®HE010E is designed as a broadband monitoring antenna for vertically polarized waves
Its main application is sensitive monitoring in stationary or mobile applications where it offers very good reception results due to its low inherent noise figure which is comparable to, and even below, the atmospheric or man-made noise.
The high sensitivity of the R&S®HE010E in combination with high interference immunity to large signals allows sensitive radio monitoring and field strength measurements in a wide dynamic range.
The antenna factor is almost frequency independent over the entire frequency range
Recommended extras
R&S®IN600 Bias Unit
R&S®HE010E | |
Frequency range | 8.3 kHz to 100 MHz |
Polarization | vertical |
Input impedance | 50 Ω |
VSWR | |
8.3 kHz to 20 kHz | <4.5 |
20 kHz to 100 MHz | <2 |
Antenna factor | typ. 11 dB/m |
Second order intercept point (IP2) | |
up to 30 MHz | ≥50 dBm (typ. 60 dBm) |
30 MHz to 100 MHz | ≥40 dBm |
Third order intercept point (IP3) | |
up to 30 MHz | ≥30 dBm (typ. 33 dBm) |
30 MHz to 100 MHz | ≥20 dBm |
Crossmodulation limit | |
up to 30 MHz | ≤12 V/m |
30 MHz to 100 MHz | ≤6 V/m |
Power supply | 24 V DC (-3 V/+2 V) (max. 190 mA) |
Connector | N female |
MTBF | >250 000 h |
Operating temperature range | –40°C to +65°C |
Storage temperature range | –40°C to +85°C |
Protection class | IP 55 (in line with EN 60529) |
Wind speed | 275 km/h (without ice deposit) |
Dimensions | |
Length × diameter | approx. 1 m × 120 mm |
Weight | approx. 1 kg |
