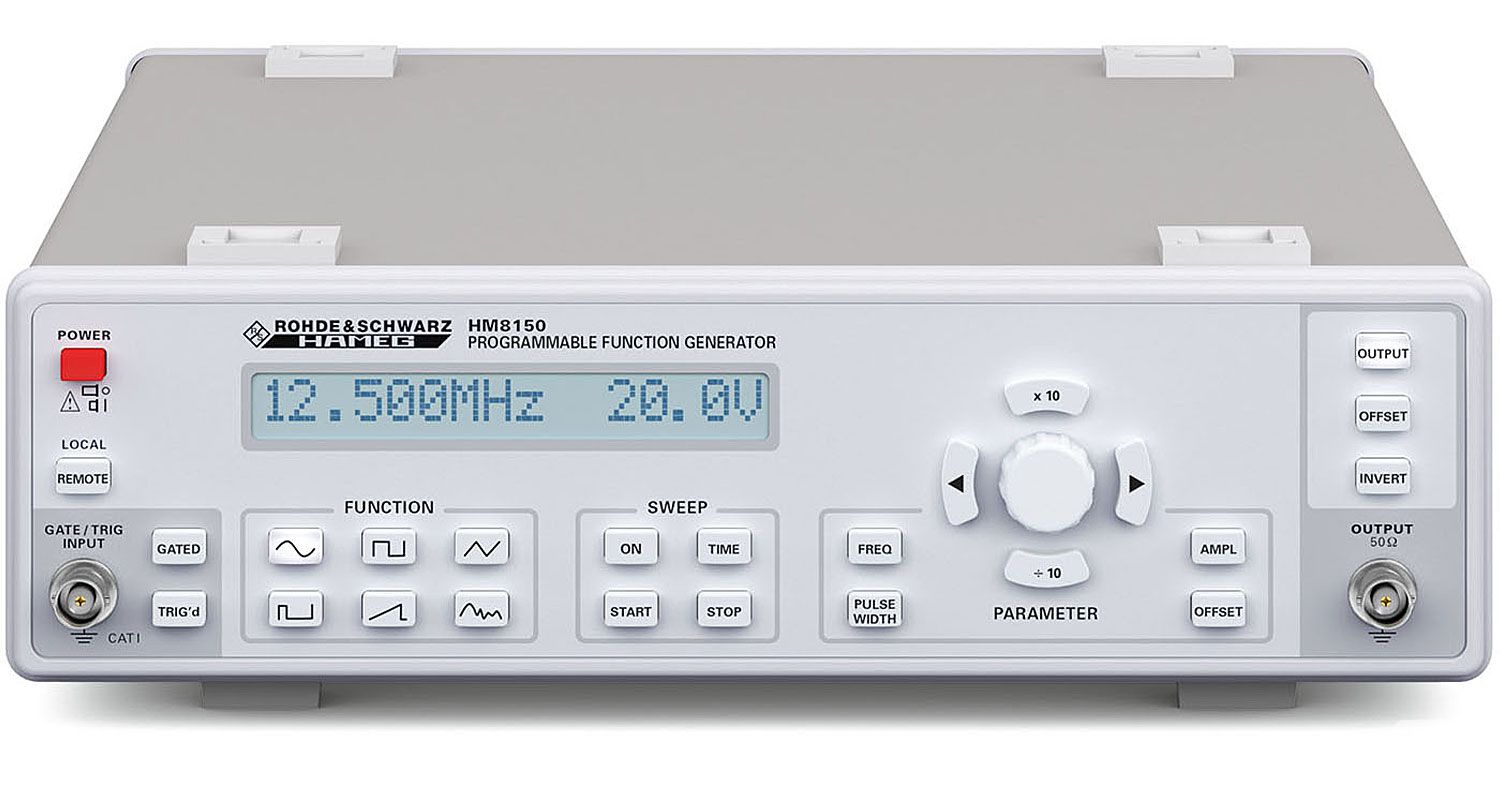

HM8150 任意函数发生器

型号：HM8150 名称：HM8150 任意函数发生器

查看原图

产品附图： (1/2)

收藏

型 号：HM8150名 称：HM8150 任意函数发生器产品简介：HM8150任意函数发生器

详细信息：

特性

     频率范围: 10 mHz to 12.5 MHz

     输出电压: 10 mV (V_pp) to 10 V (V_pp) (into 50 Ω)

     波形: sine wave, square wave, triangle, pulse, sawtooth, arbitrary

     上升和下降时间: < 10 ns

     脉宽 100 ns to 80 s

     任意波发生器: 40 MSa/s

     Burst, gating, external triggering, sweep

     Free of charge software for remote control and for creation of arbitrary waveforms

     External amplitude modulation (bandwidth 20 kHz)

     Intuitive operation with one touch of a button – quick change of signals

     Galvanically isolated USB/RS-232 dual-interface, optional IEEE-488 (GPIB)
