型号：HMP HMP4030 HMP4040 名称：HMP4000 电源
型 号：HMP HMP4030 HMP4040名 称：HMP4000 电源产品简介：The R&S®HMP DC Power supplies are primarily designed for industrial use With three or four output channels and up to 10 A output current per channel, these rugged instruments are ideal for a wide variety of applications They offer high efficiency with l
详细信息：
3 or 4 channels with max. 384 W total output power
Maximum output current per channel: 10A
Maximum output power per channel: 160W
Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
Electronic fuse (OCP), adjustable maximum voltage (OVP), overtemperature protection (OTP)
Electrical specifications | |
Number of output channels | 3/4 |
Total output power | max. 384 W |
Maximum output power per channel | 160 W |
Output voltage per channel | 0 V to 32 V |
Maximum output current per channel | 10 A |
Voltage ripple and noise (20 Hz to 20 MHz) | < 1.5 mV (RMS) (meas.) |
Current ripple and noise (20 Hz to 20 MHz) | < 1 mA (RMS) (meas.) |
Load recovery time*1) | < 1 ms (meas.) |
Programming/readback resolution | Voltage：1 mV |
Current：< 1 A: 0.2 mA; ≥ 1 A: 1 mA | |
Readback accuracy (± (% of output + offset)) | Voltage： < 0.05% + 5 mV |
Current：< 0.1% + 2 mA | |
Special functions | |
Measurement functions | voltage, current |
Protection functions | OVP, OCP, OTP |
FuseLink function | ● |
Fuse delay at power-up | ● |
Sense function | ● |
Sink mode | – |
Output sequencing | – |
Trigger input/output | – |
Arbitrary function | ● (EasyArb) |
Analog/modulation interface | – |
Data logging | – |
Display and interfaces | |
Display | 240 × 128 pixel LCD |

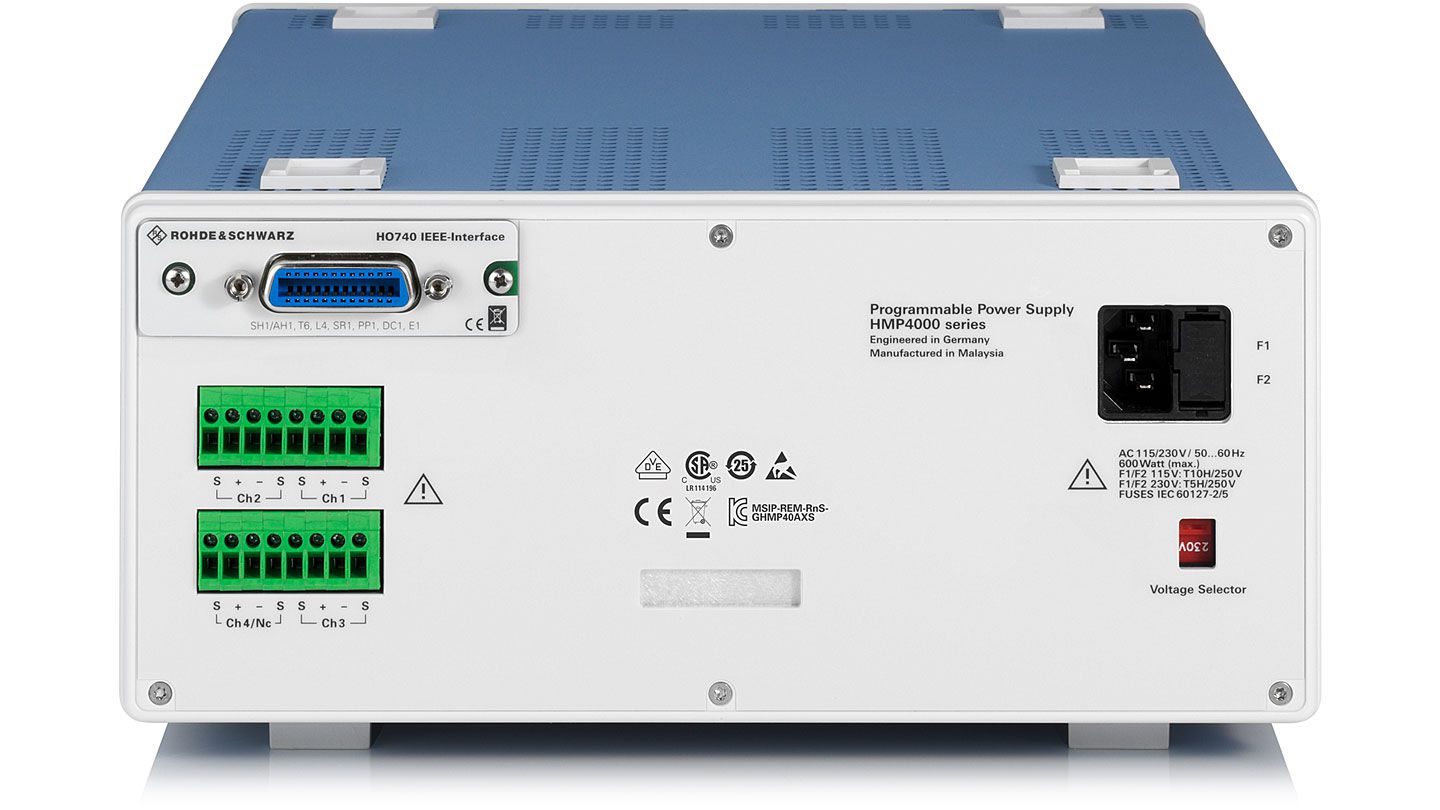

Rear panel connections | connector block with 4 lines per channel |
Remote control interfaces | standard: USB, LAN; optional: IEEE-488 (GPIB), RS-232 |
General data | |
Dimensions (W × H × D) | 285 × 136 × 405 mm |
Weight | 12.4 kg/12.8 kg |
Rack installation | R&S®HZP91 option |
*1) 10% to 90% load change within a band of ± 20 mV of set voltage. | |
