具有 6 个独立运动轴的单个设备
设计轻便紧凑，具有较高刚度
无运动误差累计
无移动电缆
RightPath 轨迹控制
通过软件设置的两个虚拟旋转中心
Newport 六足位移台采用球形接头或万向接头设计，与相似尺寸的其他六足位移台相比，拥有五倍以上的刚度和两倍以上的载重能力。
Spherical joint to enhance stiffness in a compact, low-profile design.
六足位移台的顶板由六个同步的高性能促动器驱动，编码器安装在丝杠螺母上，用以实现 jing 确 MIM、低侧隙与高速特性。
全不锈钢结构
Program up to two virtual pivot points without calculating coordinate system transformations or powering down the controller. The two virtual pivot points are origins of the two definable coordinates systems: Tool, which moves with the top plate, and Work, which is a stationary reference. This allows the user to conceptualize how the sample and tool are manipulated. For this 6-axis device, complex motion is simplified for easy user program development.

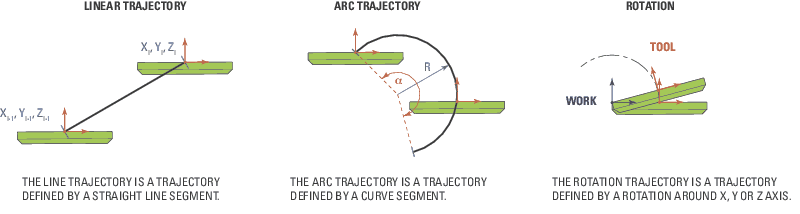

轨迹控制
Our HexaViz hexapod simulator allows you to discover which Newport Hexapod model best fits your application needs before ordering. Newport's FREE HexaViz Hexapod Simulation Software provides an easy-to-use virtual hexapod interface to evaluate travel range, load capacity, force, and torque characteristics.
1. Select the hexapod from the data base
2. Check the travel range
Configure the coordinate systems
Display the hexapod (realistic view) and frames
Display the travel range: Axis by axis, 2D views or XYZ 3D view
3. Check the load capacity
Apply loads, forces or torque
Search worst case position
Verify if actuators are overloaded
4. Save configuration

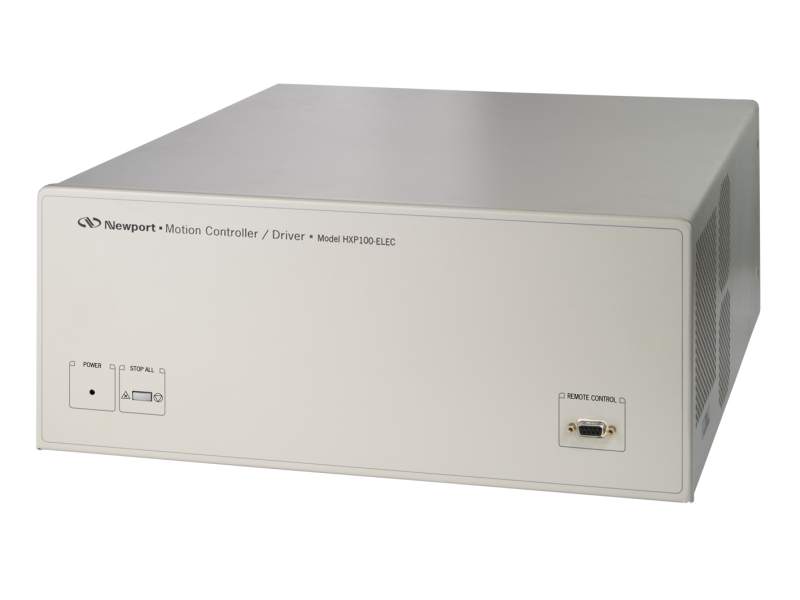

Our HXP-ELEC high-performance multi-axis hexapod motion controllersare dedicated for the use with Newport Hexapods. The HXP-ELEC is based on the same hardware as the Newport XPS Universal High Performance Motion Controller/Driver, however it is preconfigured with special firmware to command the Hexapod mechanics. Firmware features are designed for simplified programming and integration. Choose the controller with the same prefix as the hexapod you would like to control. See accessory table below for compatible controllers.
光学器件和卫星装配与测试
AED 模拟
天文
生物技术和外科手术
X 射线衍射
微加工和显微操纵
