TECHSPEC® SilverTL™远心镜头非常适用于需要精确测量的在线和离线机器视觉生产应用。这款镜头集高品质光学元件，简化的非对焦机械设计以及带固定螺丝的可调节光圈于一身。 TECHSPEC® SilverTL™远心镜头适用于计量和测量应用，可选内置照明，用途广泛。每个镜头都配有标准的前置滤光片螺纹，可连接彩色滤光片，偏振片，保护窗口片以及用于LED或光纤灯的照明适配器。

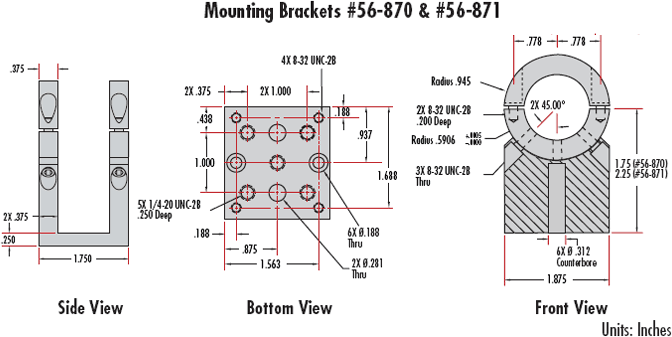

注意: 安装支架适用于直径为30mm的安装表面。

技术信息


Stock Number	Primary Mag.	Max. Diameter A	Mounting Diameter B	Length C	Mounting Length D	Mounting Offset E	Filter Thread F
#56-675	0.16X	65mm	30mm	191mm	50mm	43mm	M62 x 0.75
#63-073	0.20X	60mm	30mm	188mm	42mm	45mm	M58 x 0.75
#56-676	0.25X	48mm	30mm	158mm	49mm	44mm	M46 x 0.75
#58-428	0.30X	46mm	30mm	158mm	60mm	43mm	M43 x 0.75
#56-677	0.40X	45mm	30mm	159mm	67mm	33mm	M43 x 0.75
#63-074	0.50X	40mm	30mm	153mm	42mm	68mm	M37 x 0.75
#88-344 (In-Line)	0.50X	40mm	30mm	156.2mm	45.1mm	73.4mm	M37 x 0.75
#56-678	0.60X	42mm	30mm	156mm	57mm	46mm	M40.5 x 0.5
#67-731	0.75X	36mm	30mm	151.2mm	34mm*	82.2mm	M30.5 x 0.5
#88-346 (In-Line)	0.75X	36mm	30mm	155.2mm	46.2mm	16.9mm	M30.5 x 0.5
#58-430	1.0X	40mm	30mm	114mm	32mm*	17mm	M37 x 0.75
#58-431	2.0X	45mm	30mm	141mm	45mm	17mm	M43 x 0.75
#88-348 (In-Line)	2.0X	45mm	30mm	144.6mm	42.2mm	18.8mm	M43 x 0.75
#58-432	4.0X	61mm	30mm	249mm	99mm	17mm	M58 x 0.75

*Mounting clamp fits over iris

通用规格

涂层:

425 - 675nm BBAR

支架:

C-Mount

构造 :

Anodized Aluminum

分辨率，像方 MTF（F10 时） :

>40% @ 40 lp/mm

工作距离容差 (mm):

±3
