DLC pro：数字控制
用于可调二极管激光器的全数字控制器
极低的噪音和精确的控制
方便的本地和远程操作
智能锁定功能

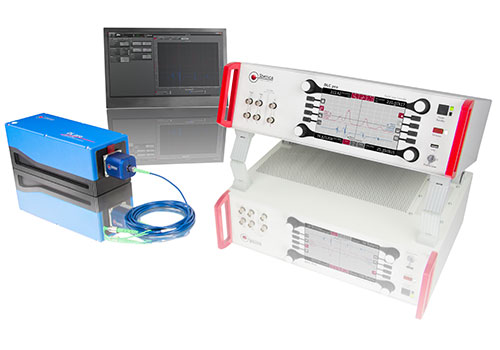

DLC pro是一个平台，可驱动TOPTICA的所有可调二极管激光器：适用于所有波长的控制器。
二极管激光器的性能在很大程度上取决于其控制器DLC pro是第一个基于数字基础的二极管激光控制器，DLC pro是第一个基于数字基础的二极管激光控制器，它对获得所有关键参数的最佳性能至关重要:窄激光线宽的低电流噪声，稳定运行的出色的温度控制和频率调谐的精确压电控制。

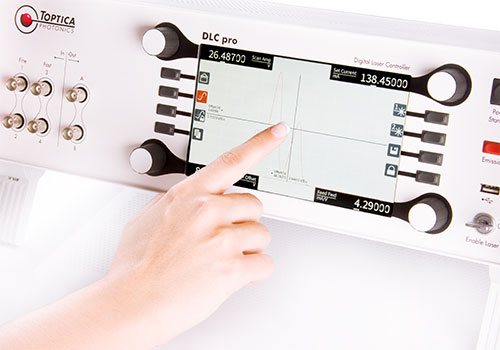

为了释放此高性能控制器的全部潜能，提供了直观的用户界面：借助触摸屏和旋钮，可以轻松调整扫描，放大观察到的功能，激活频率锁定等。数字基础还可以实现全面的远程控制，包括Windows计算机的GUI和命令界面。该接口对所有编程语言开放；提供了Python SDK。
许多应用需要参考激光的频率。 TOPTICA提供满足所有需求的解决方案：便捷的软件解决方案DLC pro Lock直接集成到DLC pro中，而FALC pro提供了高性能锁定。
DLC pro是二极管激光控制器的基准：具有最佳性能的硬件，以前所未有的便利性运行。
更新
所有客户都可以使用DLC Pro的最新经过测试的软件，包括新添加的功能和错误修复。 有关最新的软件版本，下载说明以及所添加功能的概述，请参见下面的下载部分。
Python 支持
作为TOPTICA的Laser SDK的一部分，我们提供了DLC pro的Python支持，可通过pip安装轻松获得。 该软件包又Python软件包索引（PyPI）提供。
PC GUI

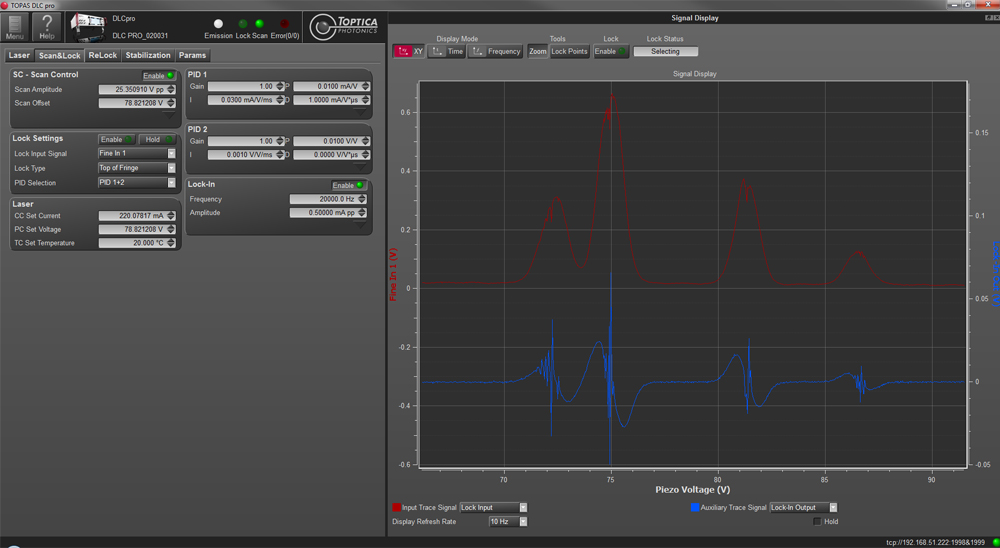

DLC pro的直观PC GUI允许从计算机进行完全控制（需要Windows 8或更高版本）。 只需连接到实验室中的任何激光器，并从其当前设置开始。
电子邮件通知
我们通过时事通讯通知有关软件的新更新。 只需发送电子邮件至dlcpro [at] toptica.com，并附带“订阅”即可，并确认您感兴趣的方面。
以太网络
将DLC pro连接到局域网可以从计算机进行远程控制，例如 通过PC GUI和命令界面。 支持DHCP和手动IP配置。
LabVIEW示例
在示例程序中演示了将DLC pro的控件集成到LabVIEW中的方法，请参见下面的下载部分。
气压补偿
此功能可通过校正测得的气压变化来提高稳定性，并使波长更稳定。
配置管理器
配置管理器允许返回以前保存的激光设置。尝试新的设置，例如锁定参数会被大大简化。
功率稳定
作为每个激光器的一部分，可以激活功率稳定反馈环路。 可以达到的带宽会在下表的当前控制模块CC-500和CC-5000的规格中列出。
宽扫描模式
宽扫描允许记录和显示高分辨率光谱扫描。 这对于CTL和DFB pro系统尤为重要，可以在激光二极管的整个波长范围内进行扫描。
屏幕截图

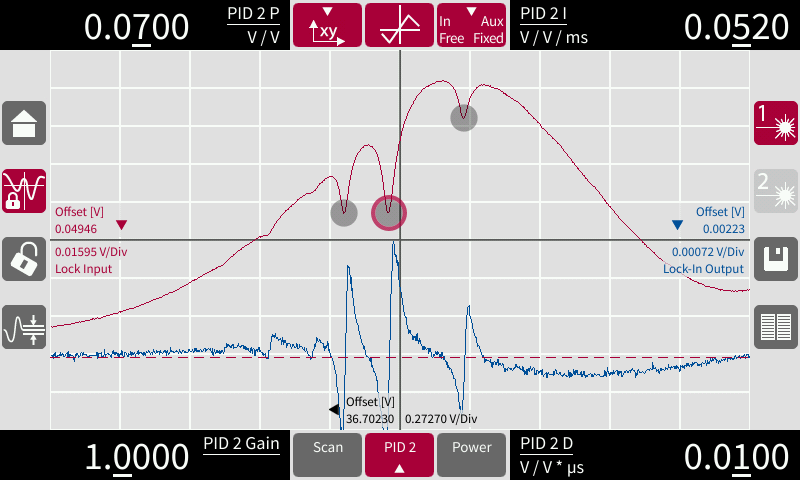

只需按一下按钮，即可将触摸屏界面的屏幕快照保存到USB驱动器。
免费试用锁定
如果您决定不与激光器一起订购DLC pro Lock，我们将提供此功能的30天试用版。 您可以随时开始试用。
在我們的產品視頻中查看更多信息：
| General / MC | |
|---|---|
| Operator Controls | Touch Display, 10 push buttons, 4 knobs, 1 key switch |
| Display | 7 inch, 800 x 480 pixels, 262 k colors |
| Touch panel | Projective capacitive (PCT) with multi-touch capability |
| Interfaces | Ethernet and USB |
Current Control CC-500 & CC-5000
| Current Control CC-500 | Current Control CC-5000* | |
| Max. laser current | 2x 245 mA or 1x 490 mA (selectable) | 5000 mA |
| Max. laser voltage | 7 V @ 360 mA, 5 V @ 490 mA | 3.5 V |
| Smallest current step | 0.015 μA | 5 μA |
| Current noise density | 280 pA / sqrt(Hz) @ 1 kHz | 120 nA / sqrt(Hz) |
| Low frequency current noise (0.1 Hz ... 10 Hz) | < 50 nA p-p | 10 μA p-p |
| Temperature coefficient of laser current | <3 ppm / K typ. after > 1 h warm-up | |
| Long-term stability of laser current | < 100 ppm / sqrt(khrs) after > 1 h warm-up | |
| Modulation bandwidth (-3dB, 45°) | Between 15 kHz and 30 kHz (depending on laser diode) | 100 Hz |
| Achievable power stabilization bandwidth | DL pro: 10 kHz, CTL: 4 kHz | TA pro: 4 kHz, SHG pro: 1 kHz |
| * For TA pro systems two CC-5000 can be combined to drive one amplifier chip at a higher current. | ||
| Temperature Control TC | |
| Max. TEC current | 3 A |
| Max. TEC voltage | 3 V @ 3 A / 12 V @ 3 A |
| Smallest set temperature step | 50 μK |
| Act. temperature noise (100 μHz ... 1 Hz) | < 300 μK p-p |
| Repeatability of actual temperature | < 0.001 K after > 1 h warm-up |
| Temperature coeff. of actual temperature | < 140 ppm K / K after > 1 h warm-up |
| Piezo Control PC | |
| Piezo voltage range | -1 V ... +140 V |
| Max. piezo current (charge / decharge) | 25 mA |
| Smallest piezo voltage step | 0.01 mV |
| Voltage noise density | 140 nV / sqrt (Hz) @ 1 kHz |
| Temperature coefficient of piezo voltage | < 40 ppm / K |
| Small signal bandwidth | 3 kHz (0 load) |
| Inputs / Outputs | |
| Analog inputs (BNC) | 2x (24 bit, DC .. 300 kHz) |
| 2x (16 /10 bits, DC .. 300 kHz / 1.7 MHz) | |
| Input range, impedance | -4 V ... + 4V, 10 kOhm |
| Analog outputs (BNC) | 2x (16 bits, DC .. 300 kHz) |
| Output range, impedance | -4 V ... + 4V (no load), 50 Ohm |
| Digital inputs** | 4x TTL, 10 kOhm, Sub-HD 15-pin |
| Digital outputs** | 4x TTL, 50 kOhm, Sub-HD 15-pin |
| ** Optional break-out cable with 8 SMB connectors available. | |
Environmental, Power Supply PS
| Environment / Supply | |
| Voltage requirements | 100 - 240 V~, 50 / 60 Hz |
| Power requirements | 250 W max., typ. 35 W, no active cooling fans |
| Size (H x W x D) | 154 mm x 450 mm x 348 mm |
| Weight | 8.0 kg (with MC, CC-500, PC, TC) |
| Operating temperature | 5 °C ... 40 °C |
| Transport temperature | 0 °C ... 40 °C |
| Relative humidity | 80 % for up to 31 °C, decr. lin. to 50 % at 40 °C |
可选模块，用于为PDH锁或频率调制光谱仪生成错误信号。
有关规格，请参见PDH / DLC pro产品页面。
Fast analog linewidth control FALC pro
可选的外部模块，用于高性能锁
有关规格，请参见FALC pro产品页面
| The DLC ext allows extending the DLC pro with TOPTICA’s well-established fast locking modules. These modules provide high performance laser locking if a faster feedback than available with the DLC pro Lock option is needed. | |
| Number of possible modules | 2 |
| Supported modules | PDD 110, FALC 110, mFALC 110, DigiLock 110 |
| Size (H x W x D) | 131 mm (+67 mm) x 184 mm x 286 mm |
| Power supply | 90 - 264 VAC (47 - 63 Hz), external, automatic mains voltage detection |
FALC pro: External high performance locking modul for frequency locking, e.g. in phase locks or locks frequency combs or to reference cavities if combined with PDH/DLC pro.
PDH/DLC pro: Built-in module for the DLC pro to generate error signals for Pound-Drever-Hall locks.
DLC pro Lock: Software license for DLC pro
Optical Clocks
Interferometry
Quantum Cryptography
Quantum Information
Magnetic Field Measurement
DLC pro Software Update
TOPICA provides software updates for the DLC pro about twice a year. These updates provide new features and bug fixes but are not installed automatically. To update your system please follow the update instructions.
| Release | Date | New Systems | New Features | Notable Improvements and Bug Fixes |
|---|---|---|---|---|
| 2.2 | 07/2020 | FALC pro | ||
| 2.1 | 06/2020 | TA pro AL, MTA pro, MSHG pro | autoPDH | Service report without PC connection |
| 2.0 | 12/2018 | Wide scan mode | CTL motor scan improved | |
| 1.9 | 08/2018 | DLC Holo-Litho 405 | Lock wizard | ARC (analog remote control) for TC added |
| 1.8 | 04/2018 | TopWave 266 PDH/DLC pro | Better protection in case of exchange of laser heads | |
| 1.7 | 01/2018 | MDL pro 2nd DL | Configuration manager Python support | CTL scan-trigger problems fixed User interface for power stabilization easier to use |
| 1.6 | 04/2017 | DFB pro PS HP | Air pressure compensation TA chips up to 10 A | Routine for setting the lock-in phase automatically Added display elements to ease finding in-loop signals |
| 1.5 | 09/2016 | DL-FHG pro TA-FHG pro SUV option | Service scripts | Locking without selected lock-point enabled SHG and FHG system display seed power correctly |
| 1.4 | 03/2016 | Power stabilization FFT for all systems Labview example CTL: microsteps enable | Limitations in signal routing lifted Scan and lock screen combined to ease operation Direct access of scaling mode | |
| 1.3 | 06/2015 | DL-SHG pro TA-SHG pro | Problem of freezing touch UI fixed Limits of FeedForward increased Correct display of TA pro power | |
| 1.2 | 11/2014 | CTL | Improved handling of touch UI events | |
| 1.1 | 09/2014 | TA pro | Cross talk between ARC of CC and PC modules removed | |
| 1.0 | 02/2014 | DL pro |
Remote operation the DLC pro is supported by:
Additional Product Information
TOPTICA Python Laser SDK (updated with every DLC pro software release) makes the command interface of the DLC pro (and other TOPTICA lasers) easily available in Python. The documentation of the command interface is provided by the DLC pro Command Reference, which is included in any DLC pro software package in the documentation folder. How to use the Python SDK is explained in the project homepage of the package
LabView example VIs for connecting to DLC pro (no technical support, also included in any DLC pro update) shows how a connection to a DLC pro is established in LabVIEW.
Software Update Version 2.2.0 (131 MB, 12/2020) PC GUI requires Windows 8 or newer - Windows XP is not supported any more
New updates are announced by an email newsletter. You may subscribe by sending an email to dlcpro@toptica.com with subject "subscribe".
This table summarizes the improvements TOPTICA introduced with the previous updates. The latest update includes all improvements.
