• 业内最高绝对精度，低至2MHz

• 测量范围从紫外到红外（192 nm .. 11μm）

• 适用于脉冲和连续激光器

• 光功率灵敏度达nW

• 高达600 Hz的采集速度

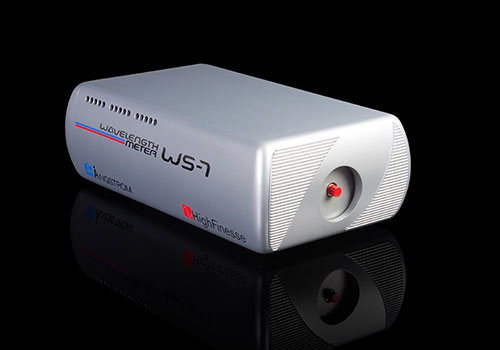

WS系列的波长计以最高精度完成波长测量。 该系列波长计可对具有窄带输出的连续和脉冲激光器进行检测，监控甚至主动控制。 WS系列有多种型号可供选择，波长范围涵盖UV到IR（192 nm - 11μm）。 波长计提供准无限寿命，基于其稳固的Fizeau干涉仪设置（内部没有任何可移动部件）。频谱分析仪LSA和HDSA允许多线或宽频谱光源，如连续波和脉冲激光，气体放电灯，超发光二极管 ，半导体激光二极管和LED。

•

• Technical Information

  		WS5	WS6-600	WS6-200	WS7-60	WS8-30	WS8-10	WS8-2
  Measurement range	UV-II (192 – 800 nm)	✓	✓	✓	✓
  	UV-I (248 – 1180 nm)	✓	✓	✓	✓	✓	✓
  	Standard (330 – 1180 nm)	✓	✓	✓	✓	✓	✓	✓
  	VIS / IR-I (330 – 1750 nm) 17)	✓	✓	✓
  	IR-I (630 – 1750 nm)				✓ 22)	✓	✓
  	VIS / IR-II (500 – 2250 nm)17)	✓	✓	✓
  	IR-II (1000 – 2250 nm)					✓ 20)
  	IR-III (1400 – 11000 nm)	✓		✓
  Absolute accuracy 1)	192 – 330 nm 2)	3 pm	0.6 pm	0.4 pm	0.2 pm	0.1 pm	0.1 pm
  	330 – 420 nm	2 pm	0.3 pm	0.2 pm	0.04 pm	0.02 pm	0.01 pm	0.01 pm
  	420 – 1100 nm	3000 MHz	600 MHz	200 MHz	60 MHz	30 MHz	10 3)	2 4)
  	1100 – 2250 nm	2000 MHz	400 MHz	150 MHz	40 MHz	20 MHz	10 3)
  	1400 – 11000 nm	3000 MHz		200 MHz
  Quick coupling accuracy (with multi mode fiber)		3000 MHz	600 MHz	600 MHz 5)	150 MHz	100 MHz	100 MHz	100 MHz
  Wavelength deviation sensitivity/Measurement resolution 6)		500 MHz	20 MHz	4 MHz 21)	2 MHz	1 MHz	0.4 MHz	0.2 MHz 19)
  Linewidth option	Estimation accuracy 7)	2000 MHz	500 MHz	400 MHz	200 MHz	100 MHz	100 MHz	100 MHz
  Measurement speed (Hz)		950 (IR: 1500, IR-III: 100)	950 (IR: 1500) 8)	500 (IR: 1500, IR-III: 100) 8)	500	500	500	500
  Required inputenergy and power 9)	Standard (VIS)	0.02 – 15 μJ	0.02 – 15  μJ	0.02 – 15 μJ	0.02 – 15 μJ	0.08 - 60 μJ	0.08 - 60 μJ	0.08 - 60 μJ
  	UV-I	0.02 – 10 μJ	0.02 – 10 μJ	0.02 – 10 μJ	0.02 – 10 μJ	0.02 – 40 μJ
  	UV-II	0.02 – 200 μJ	0.02 – 200 μJ	0.02 – 200 μJ	0.02 – 400 μJ
  	IR-I	2 – 200 μJ	2 – 200 μJ	2 – 200 μJ	2 – 200 μJ	2 – 800 μJ	2 – 800 μJ
  	IR-II 10)	2 – 80 μJ	2 – 80 μJ	2 – 80 μJ	2 – 80 μJ	2 – 800 μJ
  	IR-III	1 mW		1 mW μJ
  FSR of the Fizeau interferometers (Fine/wide mode) 11)		100 GHz	16/100 GHz 12)	16/100 GHz 13)	8/32 GHz	4/32 GHz	2/20 GHz	2/20 GHz
  Calibration 18)		Built-in calibration 14)			Built-in calibration 15)	Stabilized HeNe laser or any other well known lasersource Δν < 5 MHz	SLR-780 or any other well known laser sourceΔν < 2 MHz	I2 stabilized HeNe or any well knownlaser sourceΔν < 1 MHz
  Recommended calibration period		≤ 1 month			≤ 14 days	≤ 10 hours	≤ 1 hour	≤ 2 minutes
  Warm-up time		No warm-up time under constant ambient conditions 16)				> 30 minutes
  Dimensions L × W × H mm³		360 × 120 × 120	360 × 120 × 120	360 × 200 × 120	360 × 200 × 120	360 × 200 × 120	360 × 200 × 120	360 × 200 × 120
  Weight		2.8 kg	2.8 kg	5.5 kg 18)	5.9 kg	6.1 kg	6.4 kg	6.4 kg
  Interface		High-speed USB 2.0 connection
  Power supply		Power consumption < 2.3 W, power provided directly via USB cable IR-II, IR-III: external power supply included; WS7-60 IR-I, WS8-30 IR-I, WS8-10 IR-I: external power supply included

  1) According to 3σ criterion, but never betterthan 20 % of the laser linewidth.
  2) With multimode fiber.
  3) ± 200 nm around calibration wavelength; outside of this range the accuracy is 30 MHz.
  4) ± 2 nm around calibration wavelength; outside of thisrange the accuracy is 10 MHz; note 3 also applies.
  5) 200 MHz for WS6-200 IR-III.
  6) Standard deviation. WS6-200 and higher modelsrequire singlemode or photonic cr ystal fibers to reachthis resolution.
  7) Not better than 20 % of the linewidth.
  8) Depending on PC hardware and settings. Highspeedmodels up to 76 kHz available.
  9) The CW power interpretation in [μW] compares to anexposure of 1s (generally the energy needs to be dividedby the exposure time to obtain the required power).
  10) μJ interpretation for pulsed lasers. CW signals needmore power in [μW] since the exposure is limited atIR-II instruments.
  11) Each instrument in each mode can measure lasers witha linewidth up to 30 % of the correspondig FSR.
  12) For IR instruments: 32/32.
  13) For IR-I and IR-II instruments: 16/16,for IR-III instruments: 8/80.
  14) IR-III: external calibration source needed, e.g. SLR-1532.
  15) IR instruments: external calibration source needed,e.g. SLR-1532.
  16) IR-II: > 30 min. warm-up, or until ambient equilibrium.
  17) These instruments have a decreased sensitivity by afactor of 4, compared to the Standard and IR ranges in the required input fields, respectively.
  18) 2.8 for IR-I and IR-II.
  19) 100 kHz for special ranges on request.
  20) Photonic cr ystal switches can be used up to 2000 nm.Please contact HighFinesse if you want to measureover 2000 nm.
  21) IR-III: 20 MHz.
  22) Measurement range WS7-60 IR-I: 530 – 1750 nm.



• Options

  MultiChannel option for simultaneous measurement of several lasers.

• Applications
