20-30000 fs pulse duration range (10 fs optional)

Scanning rate: 0.1-20 Hz

Linear distortion: <1%

USB connection and software

All-reflective optics

Position measurement

Fringe-resolved autocorrelation function

Frictionless movement

Optional fiber input



Product overview

The AA-20DD real-time autocorrelator offers smooth and fast measurement of femtosecond and picosecond pulse duration. The autocorrelatorcan cover several wavelength ranges by using up to 3 interchangeable photodetectors and optics. Input pulse duration varies from 10 fs to 30 psfor easy monitoring of different laser systems, especially femtosecond and picosecond oscillators (for amplifier monitoring please see our ASF-20 single-shot autocorrelator)

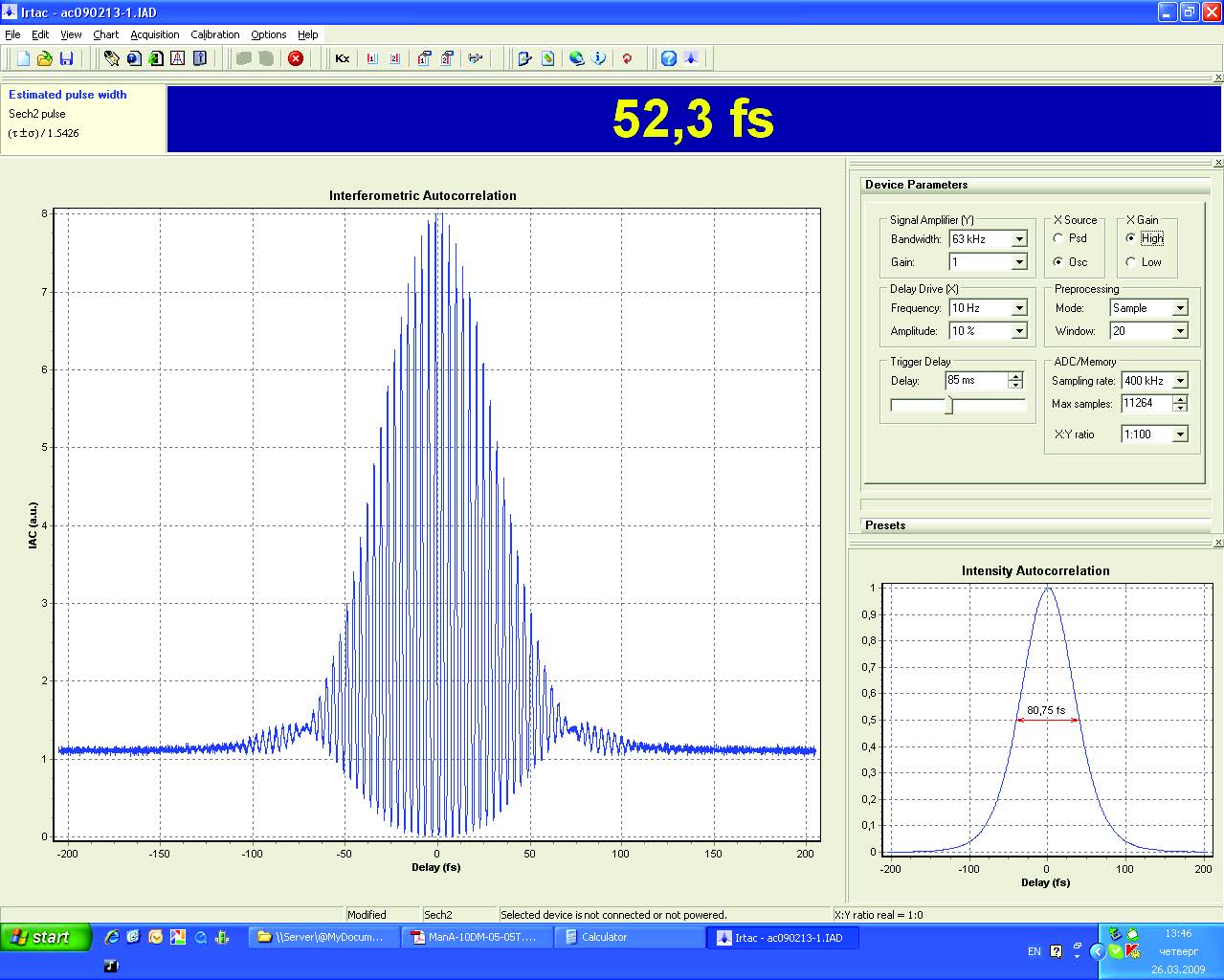

The device features USB interface and can be easily hooked up to a PC with Windows OS, as well as via the included LabView drivers. Thesoftware is supplied with the device and comprises several useful tools. The acquired pulse duration data can be visualized, stored or exported toa .txt or .dat file. Autocorrelation function and final FWHM pulse duration in femtoseconds are calculated and displayed in real-time. Moreover, Gaussian or sechA2 fitting options are enabled, intensity function may also be observed. The statistical viewer feature allows the comparison ofdata acquired from several separate pulse measurements.




The tiny body of the AA-20DD flawlessly fits any experimental setup with strict space requirements. We also offer an optional fiber input for fastand reliable pulse duration measurement in various optical fibers. Moreover, the autocorrelator in this case still maintains the free-spacemeasurement capability.


AA-20DD technical specifications



Wavelength range, nm

450-700(AA-20DDV)

700-1300 (AA-20DD)

1300-2000 (AA-20DDR)

450-2000* (AA-20DD+R+V)

Pules duration range, fs

20-6000..  (default); 20-30000..  (-30PS option)

Input repetition rate

>10 kHz (default); >10 Hz (-5 option)

Sensitivity

100 m W2

Input polarization, linear

horizontal (vertical upon request)

Scanning rate, Hz

0.1-20

Linear distortion, %

<1%

Collinear(interferometric and Intensity) autocorrelation

yes

PC connection

USB

Necessary equipment

PC with Windows 05 or oscilloscope

Fiber input(optional)

FC/ PC or FC/APC (other types available upon request )

Signal source and detector

two -photon conductivity in semiconductor

Dimensions, mm

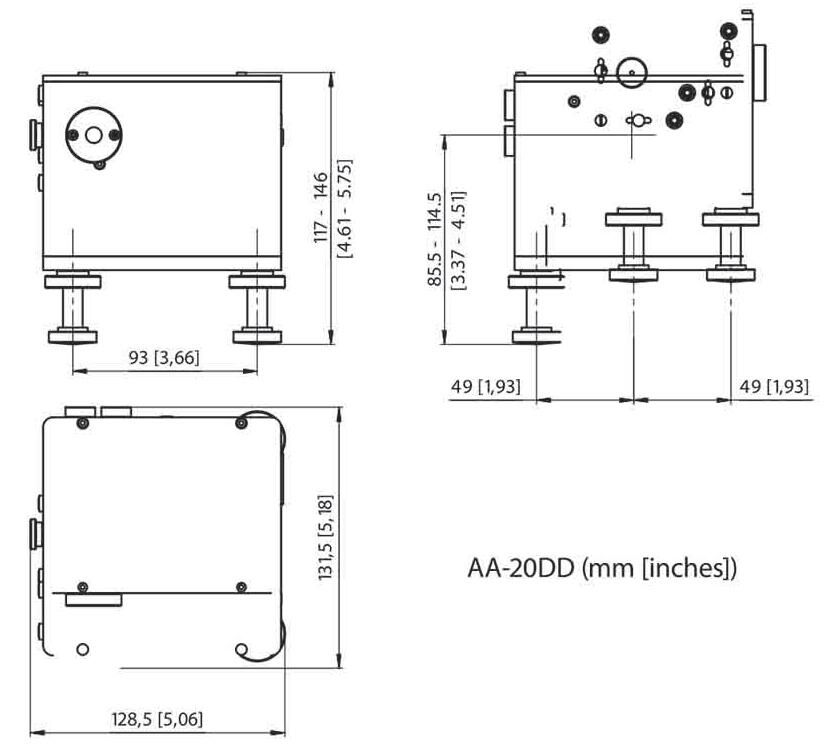

132x129x117 (optical unit) 225x190x45 (electronic unit)

•       the AA-2000 unit may cover either one range of customer's choice, two separate ranges (i.e. 450- 1300 or 700-2000) or all three ranges (450-2000 nm) with interchangeable optics and photodetectors (1, 2 or 3 sets included respectively). Please request for more information.

•       pulse duration range from 10 fs is available upon request
