QuixX® 半导体激光器的主要特性：
可同时输出小于50ps和CW模式的激光。波长范围从405nm到642nm可选，输出平均功率大于300mW；脉冲模式下，峰峰抖动小于2ps；
用户可自行调节脉冲形状、脉冲高度和重频等；
内置任意重频发生器，重频可调范围从1Hz到100MHz；
自带有延迟发生器输出一个延迟可调的同步信号，最大延迟时间可达28ns@10ps的分辨率下；
极高的光纤耦合效率。可以将激光器的色散消除以达到最完美的聚焦输出，在自由空间模式下，可聚焦成近衍射极限的高斯光斑，可以实现高耦合效率光纤输出。
产品参数：
| 型号 | 波长/功率 CW | 脉冲宽度 | 平均功率@40MHz | |
| 窄脉冲 | 窄脉冲 | |||
| 宽脉冲 | 宽脉冲 | |||
| 波长&功率（其他波长均可提供） | QuixX@375-70 PS | 375nm/70mW | <50ps | 0.6mW |
| <400ps | 2.4mW | |||
| QuixX@405-120PS | 405nm/120mW | <70ps | 1.0mW | |
| <500ps | 3.0mW | |||
| QuixX@405-300PS | 405nm/300mW | <90ps | 1.2mW | |
| <500ps | 4.0mW | |||
| QuixX@425-120PS | 425nm/120mW | <60ps | 0.7mW | |
| <500ps | 4.0mW | |||
| QuixX@445-100PS | 445nm/100mW | <80ps | 0.8mW | |
| <500ps | 4.0mW | |||
| QuixX@473-100PS | 473nm/100mW | <90ps | 0.75mW | |
| <700ps | 4.0mW | |||
| QuixX@488-60PS | 488nm/60mW | <90ps | 0.7mW | |
| <600ps | 4.4mW | |||
| QuixX@488-200PS | 488nm/200mW | <110ps | 1.3mW | |
| <550ps | 4.1mW | |||
| QuixX@515-80PS | 515nm/80mW | <110ps | 0.6mW | |
| <600ps | 1.6mW | |||
| QuixX@642-140PS | 642nm/140mW | <100ps | 2.8mW | |
| <1000ps | 10mW | |||
| 光束质量M2 | <1.15 | |||
| 椭圆度 | <1.1:1 | |||
| 偏振态 | >100:1 竖直 | |||
| 长时间稳定性 | <1%/8h | |||
| RMS 噪声 | ||||
| 20MHz-100MHz | <0.5%(CW) | |||
| 10MHz-500MHz | <0.5%(CW) | |||
| 运行模式 | CW ACC | |||
| CW APC | ||||
| Picosecond Pulsed (LP – narrow pulse) | ||||
| Picosecond Pulsed (HP – wide pulse) | ||||
| Picosecond Pulsed (expert mode adj. between LP and HP) | ||||
| Analogue modulation (works for both CW and Picosecond Mode) | ||||
| Digital modulation (CW mode only) | ||||
| SYNC in (works for Picosecond Mode as external SYNC or gating input) | ||||
| Analogue + SYNC in (work for Picosecond Mode) | ||||
| 模拟调制 | >3MHz | |||
| 0～5V / 1,2kOhm or 0～1V / 50 Ohm (user selectable via software) | ||||
| 数字调制 | >1MHz digital modulation (CW) | |||
| up to 100MHz* for external triggering (SYNC in) | ||||
| 0～5V/TTL (200 Ohm), 0～1V/50 Ohm, -0.5～+0.5V/50 Ohm or (NIM)0～-1.6V/50 Ohm (user selectable via software) | ||||
| 激光使能（快门） | >200kHz (full ON/OFF) | |||
| 输入信号 | TTL (2kOhm) | |||
| 上升下降时间 | Analogue: < 50ns | |||
| Digital: < 500ns | ||||
| Laser Enable: < 1000ns | ||||
| 消光比 | Analogue: >1000:1 | |||
| Digital: >1000:1 | ||||
| Laser Enable: infinite (full ON/OFF) | ||||
| 脉冲重频： | From Single-Shot up to 100MHz* | |||
| 外部同步信号 | 0…500kHz in 1Hz steps | |||
| 内部信号 | 500kHz…80MHz in 500kHz steps | |||
| 内同步输出延时 | 0ns～28.4ns pulse to sync delay in 10ps steps | |||
| 供电电压 | 15～24 VDC nominal (14～25VDC max.) | |||
| 控制接口 | RS-232 and USB 2.0 | |||
| 尺寸 | 191x 65x 60mm | |||
| 选配 | BRIXX.PSU Power Supply unit | |||
| BRIXX.FASYADAP | ||||
| Fasy.xxxx | ||||
| BRIXX.HEATSINK | ||||
| XX.CDRH | ||||

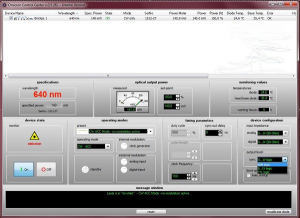

激光控制软件
